Switch-Roof Ventilator

Component ID: 548

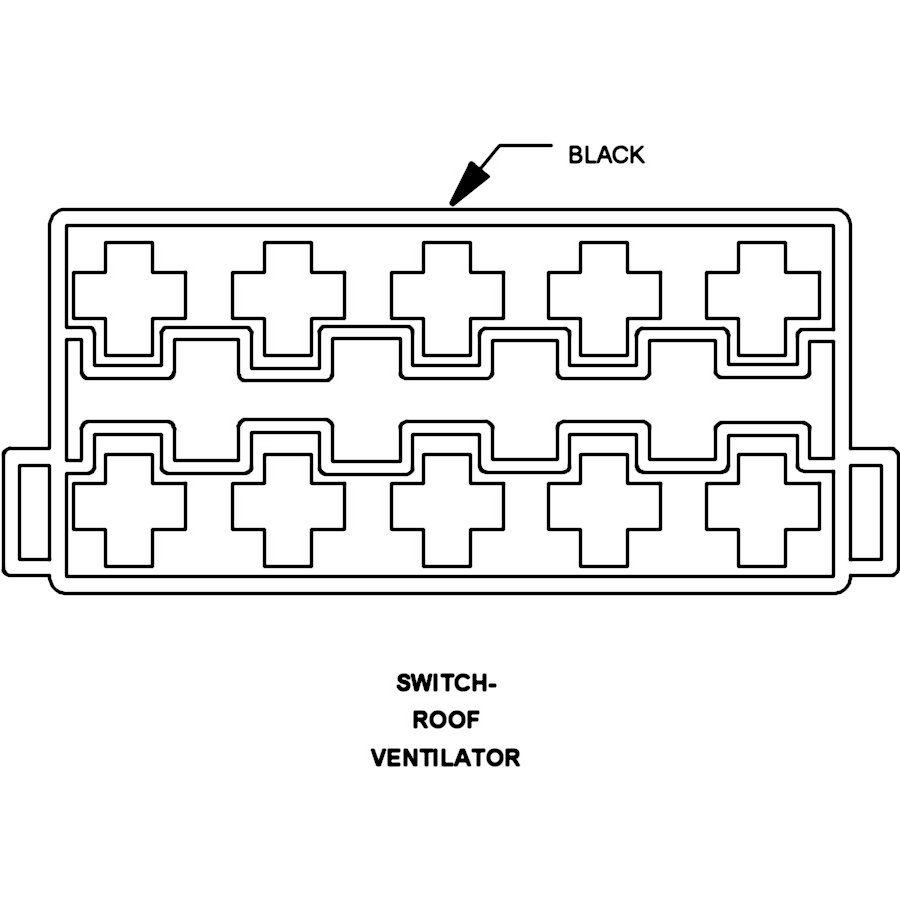

Component : SWITCH-ROOF VENTILATOR

Connector:
Name : SWITCH-ROOF VENTILATOR
Color : BLACK
# of pins : 10




Pin Description Circuit
1 TERM.58D U815 18GY/DB
2 - -
3 FUSED B(+) U56 16BK
4 FUSED B(+) 2945 16WT/BK
5 GROUND 2938 16BR
6 GROUND 2939 16BR
7 2944 16BK/WT
8 - U56 16BK
9 - -
10 GROUND 2940 18BR
