Installation

INSTALLATION

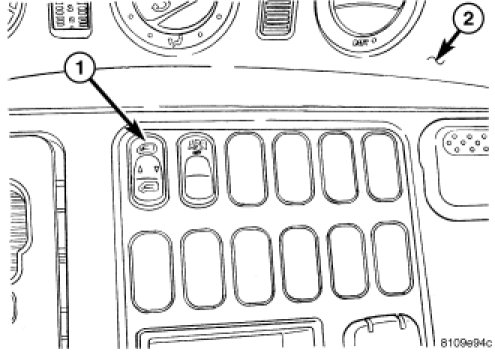

1. Install switch to bezel (1).
2. Connect the electrical connectors
3. Install instrument panel center bezel (2).
4. Connect the battery negative cable.
