Removal

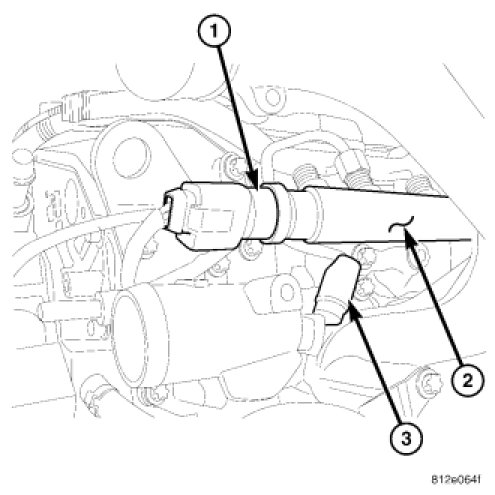

REMOVAL

1. Disconnect the negative battery cable.
2. Disconnect the sensor wiring harness connector.

NOTE: Place a shop towel underneath the sensor to capture any fuel spillage.

3. Unscrew the sensor and discard the seal.
