Fuel Pressure Sensor/Switch: Diagrams

Component ID: 462
Component : SENSOR-FUEL PRESSURE

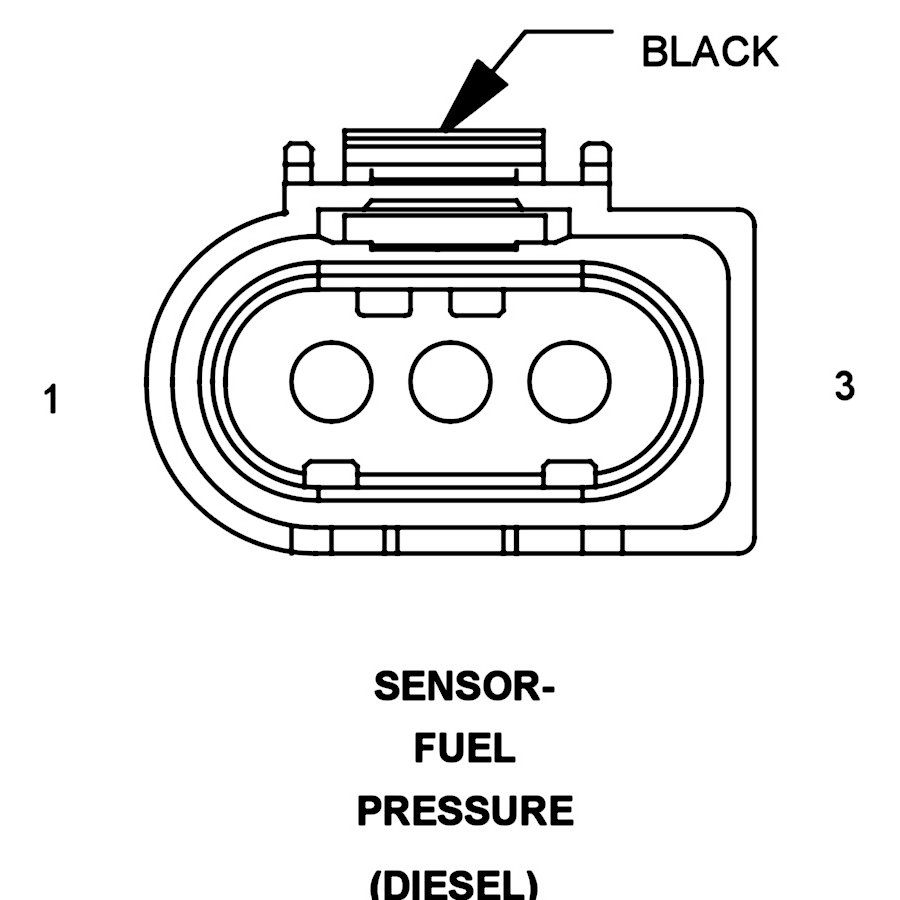

Connector:
Name : SENSOR-FUEL PRESSURE
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)
Gender : FEMALE




Pin Description Circuit
1 FUEL PRESSURE SENSOR GROUND 1320 20OR
2 FUEL PRESSURE SENSOR SIGNAL 1319 20VT/DG
3 FUEL PRESSURE SENSOR 5 VOLT SUPPLY 1321 20YL/VT
