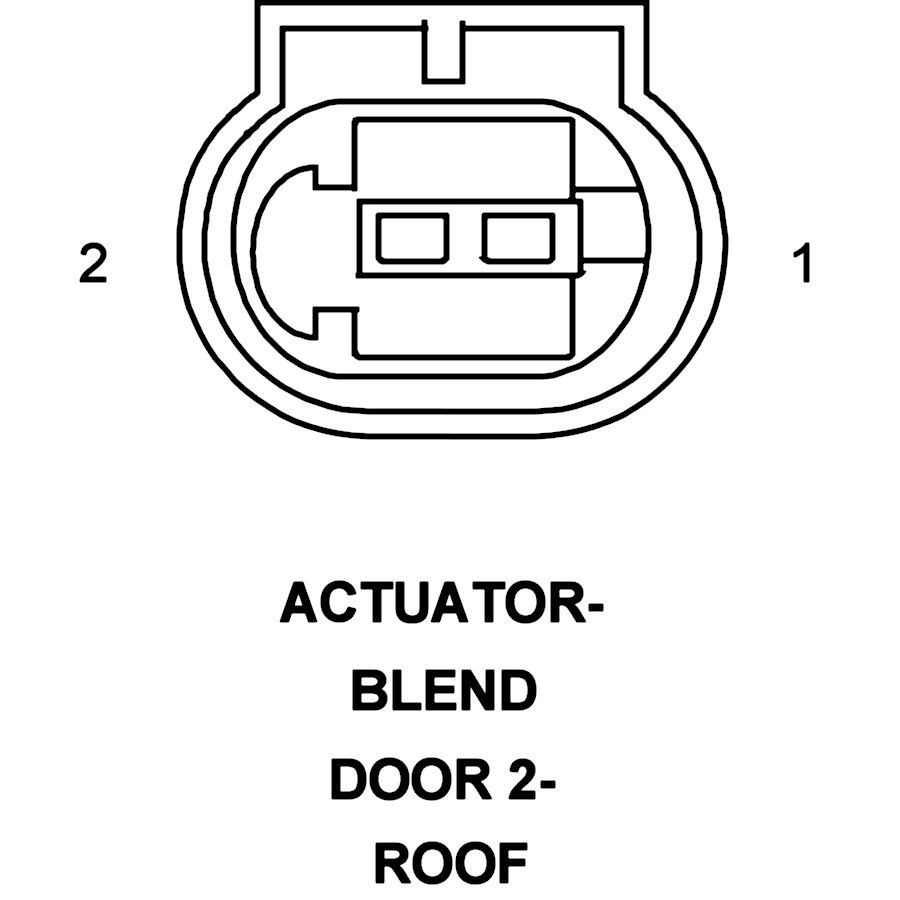

Actuator-Blend Door 2-Roof

Component ID: 10
Component : ACTUATOR-BLEND DOOR 2-ROOF

Connector:
Name : ACTUATOR-BLEND DOOR 2-ROOF
Color :
# of pins : 2




Pin Description Circuit
1 - 3644 10RD
2 GROUND U58 10BR
