Removal

REMOVAL

WARNING: To avoid serious or fatal injury on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment.




1. Disconnect and isolate the battery negative cable.

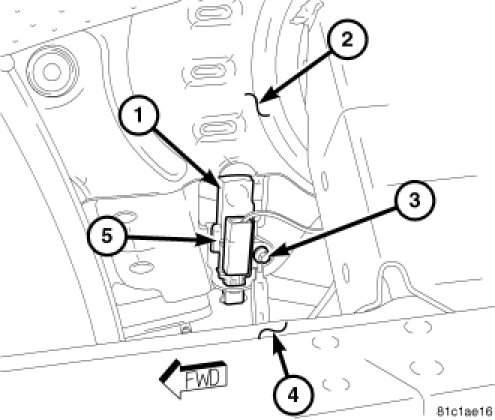

2. Remove the seat from the driver side front seat riser (4).
3. Disconnect the vehicle wire harness connector (5) for the park brake switch (1) from the switch terminal.
4. Remove the screw (3) that secures the park brake switch and the ground eyelet terminal to the park brake lever (2).
5. Remove the park brake switch from the park brake lever.
