Sensor-Park Assist 8


Component ID: 493

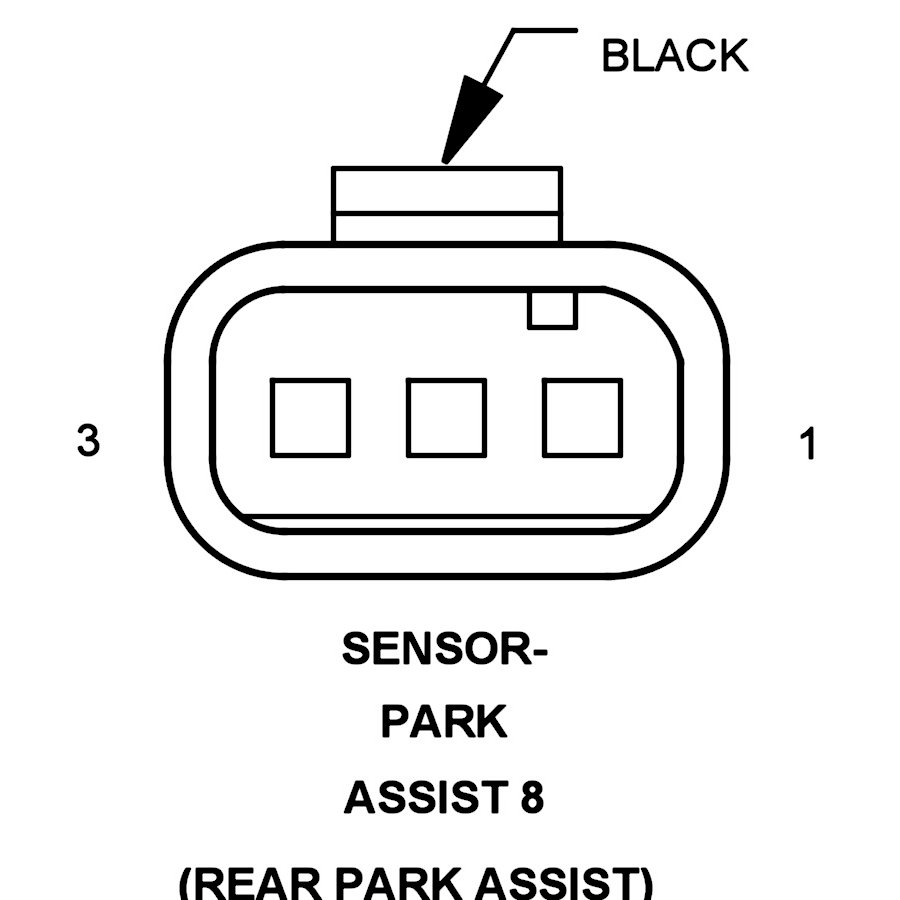

Component : SENSOR-PARK ASSIST 8

Connector:
Name : SENSOR-PARK ASSIST 8
Color : BLACK
# of pins : 3
Qualifier : (REAR PARK ASSIST)




Pin Description Circuit
1 PARK ASSIST SENSOR 8 SIGNAL 612 20YL/VT
2 GROUND U361 20BR/DB
3 PARK ASSIST SENSOR SUPPLY U362 20BK/YL
