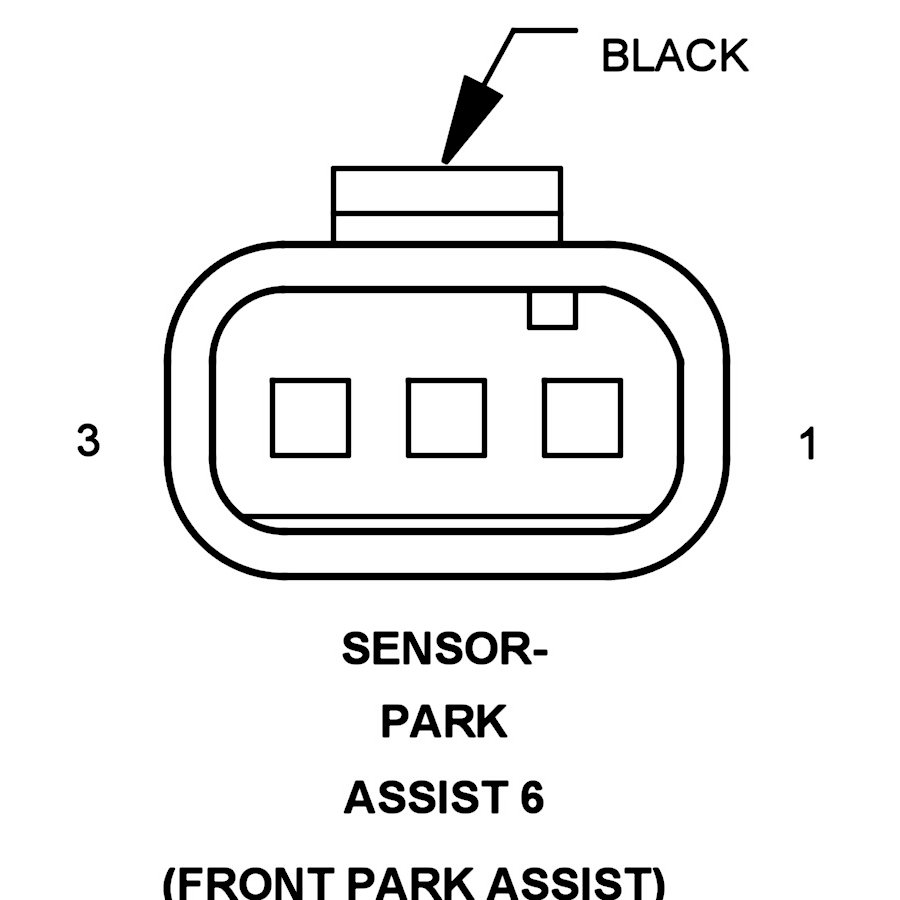

Sensor-Park Assist 6


Component ID: 491
Component : SENSOR-PARK ASSIST 6

Connector:
Name : SENSOR-PARK ASSIST 6
Color : BLACK
# of pins : 3
Qualifier : (FRONT PARK ASSIST)




Pin Description Circuit
1 PARK ASSIST SENSOR 6 SIGNAL 647 20BK/WT
2 GROUND U363 20BR/DB
3 FRONT PARK ASSIST SENSOR SUPPLY U364 20BK/YL
