Sensor-Park Assist 5

Component ID: 490

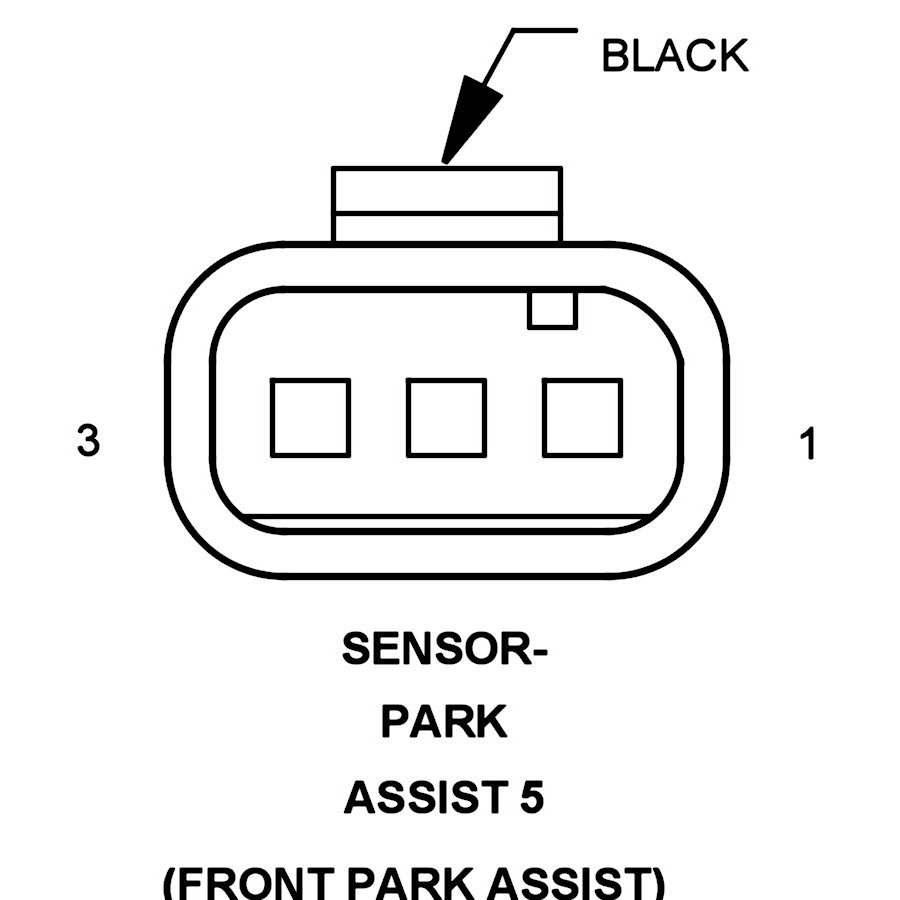

Component : SENSOR-PARK ASSIST 5

Connector:
Name : SENSOR-PARK ASSIST 5
Color : BLACK
# of pins : 3
Qualifier : (FRONT PARK ASSIST)




Pin Description Circuit
1 PARK ASSIST SENSOR 5 SIGNAL 644 20WT/RD
2 GROUND U363 20BR/DB
3 FRONT PARK ASSIST SENSOR SUPPLY U364 20BK/YL
