Sensor-Park Assist 2

Component ID: 487

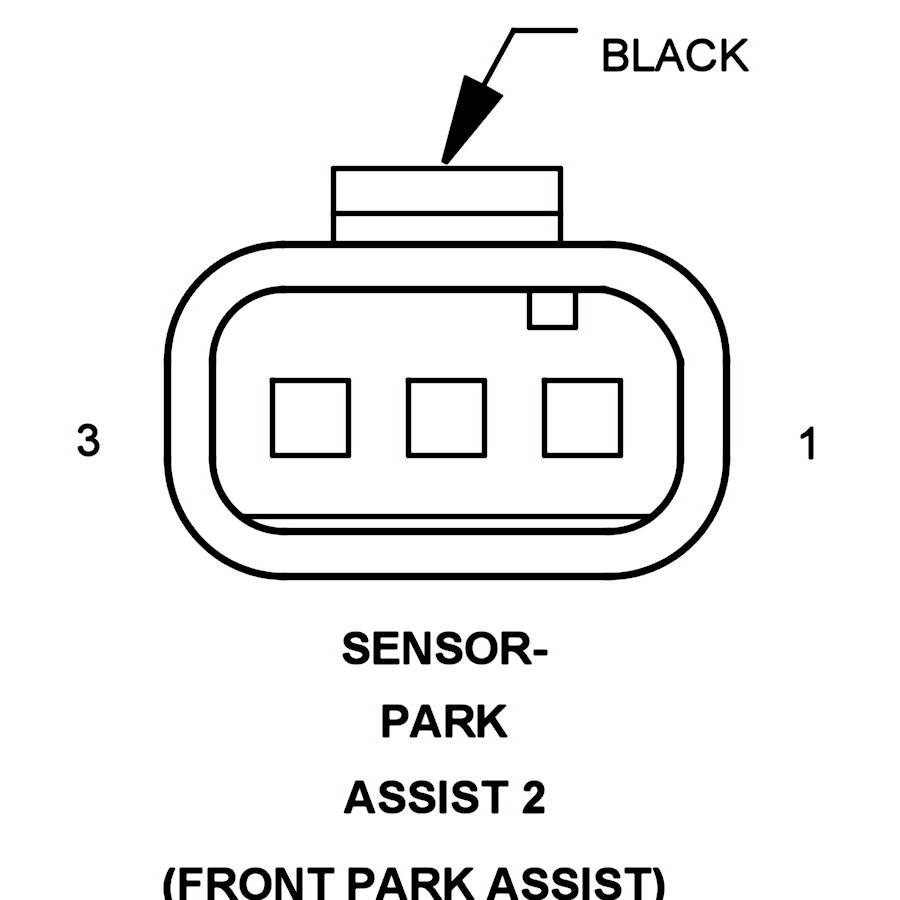

Component : SENSOR-PARK ASSIST 2

Connector:
Name : SENSOR-PARK ASSIST 2
Color : BLACK
# of pins : 3
Qualifier : (FRONT PARK ASSIST)




Pin Description Circuit
1 PARK ASSIST SENSOR 2 SIGNAL 635 20YL/RD
2 GROUND U363 20BR/DB
3 FRONT PARK ASSIST SENSOR SUPPLY U364 20BK/YL
