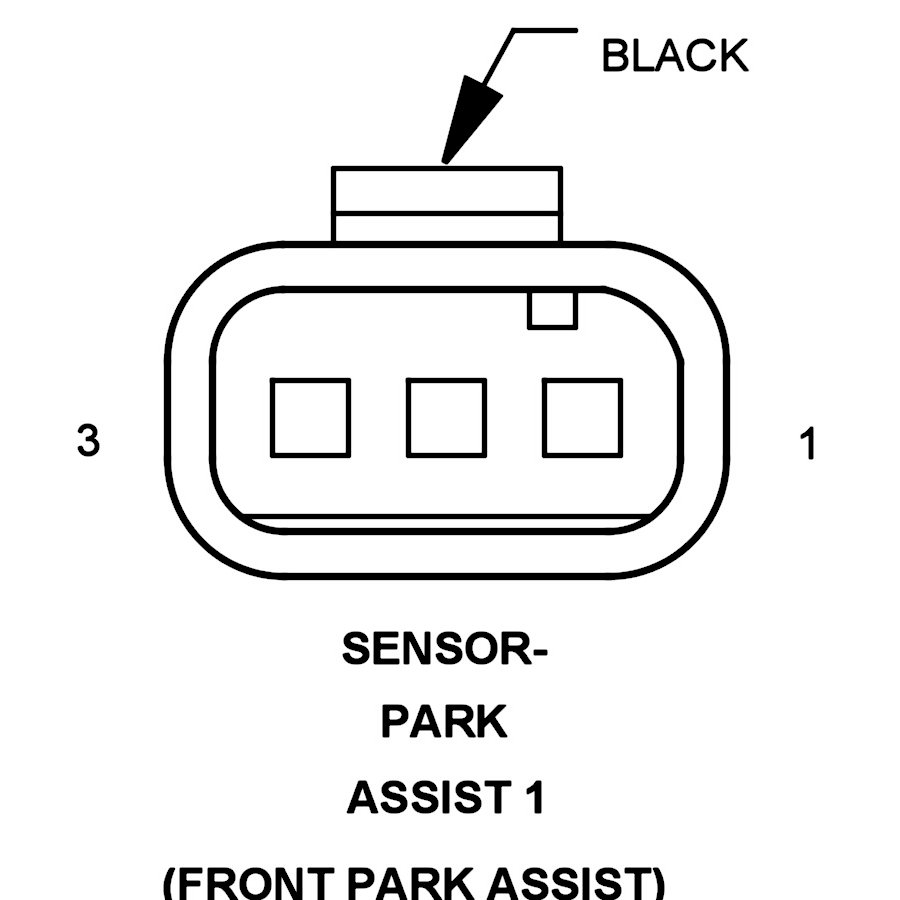

Sensor-Park Assist 1


Component ID: 485
Component : SENSOR-PARK ASSIST 1

Connector:
Name : SENSOR-PARK ASSIST 1
Color : BLACK
# of pins : 3
Qualifier : (FRONT PARK ASSIST)




Pin Description Circuit
1 PARK ASSIST SENSOR 1 SIGNAL 629 20DB/YL
2 GROUND U363 20BR/DB
3 FRONT PARK ASSIST SENSOR SUPPLY U364 20BK/YL
