Hood Sensor/Switch (For Alarm): Diagrams

Component ID: 539

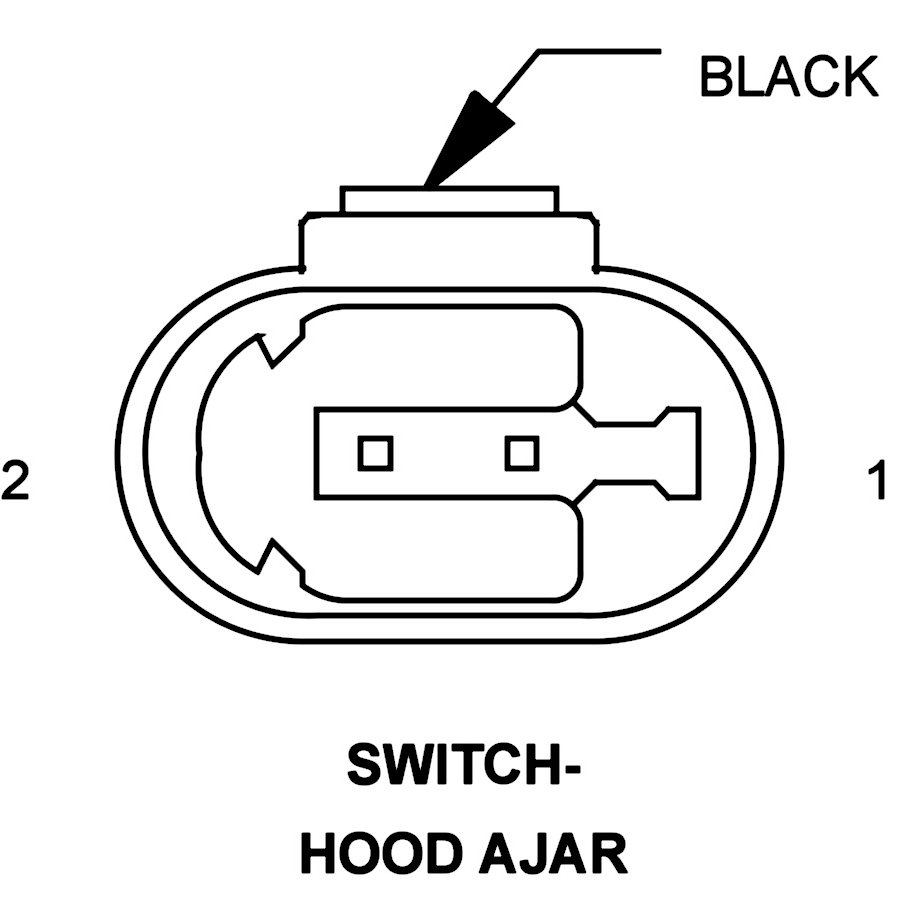

Component : SWITCH-HOOD AJAR

Connector:
Name : SWITCH-HOOD AJAR
Color : BLACK
# of pins : 2




Pin Description Circuit
1 HOOD AJAR SWITCH SENSE 722 20BR/PK
2 GROUND 723 20BR
