Home >> Freightliner >> 2005 >> Sprinter 2500 L5-2.7L DSL Turbo >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Instrument Panel >> Door Switch >> Locations

Door Switch: Locations

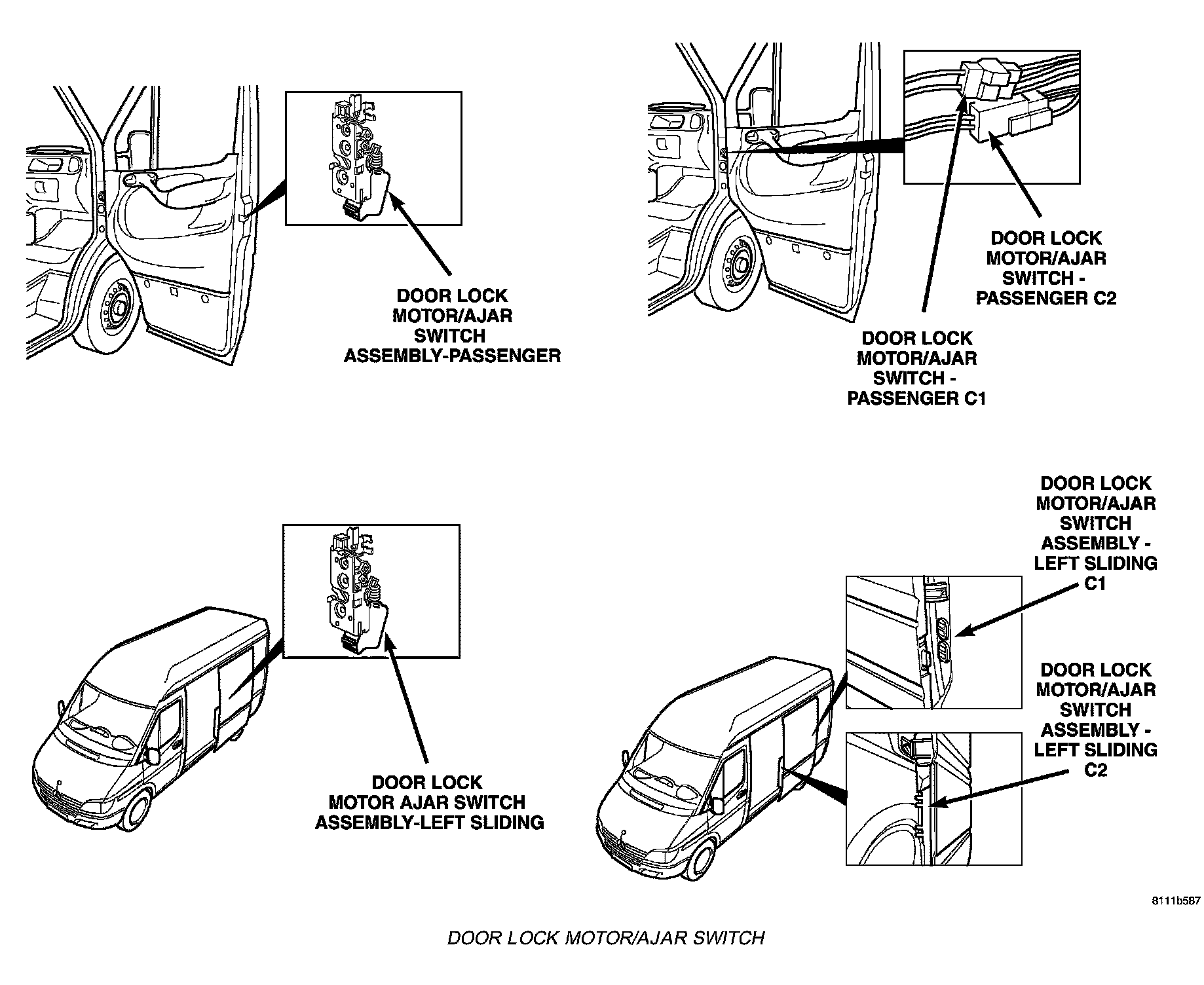

Door Lock Motor/ajar Switch:

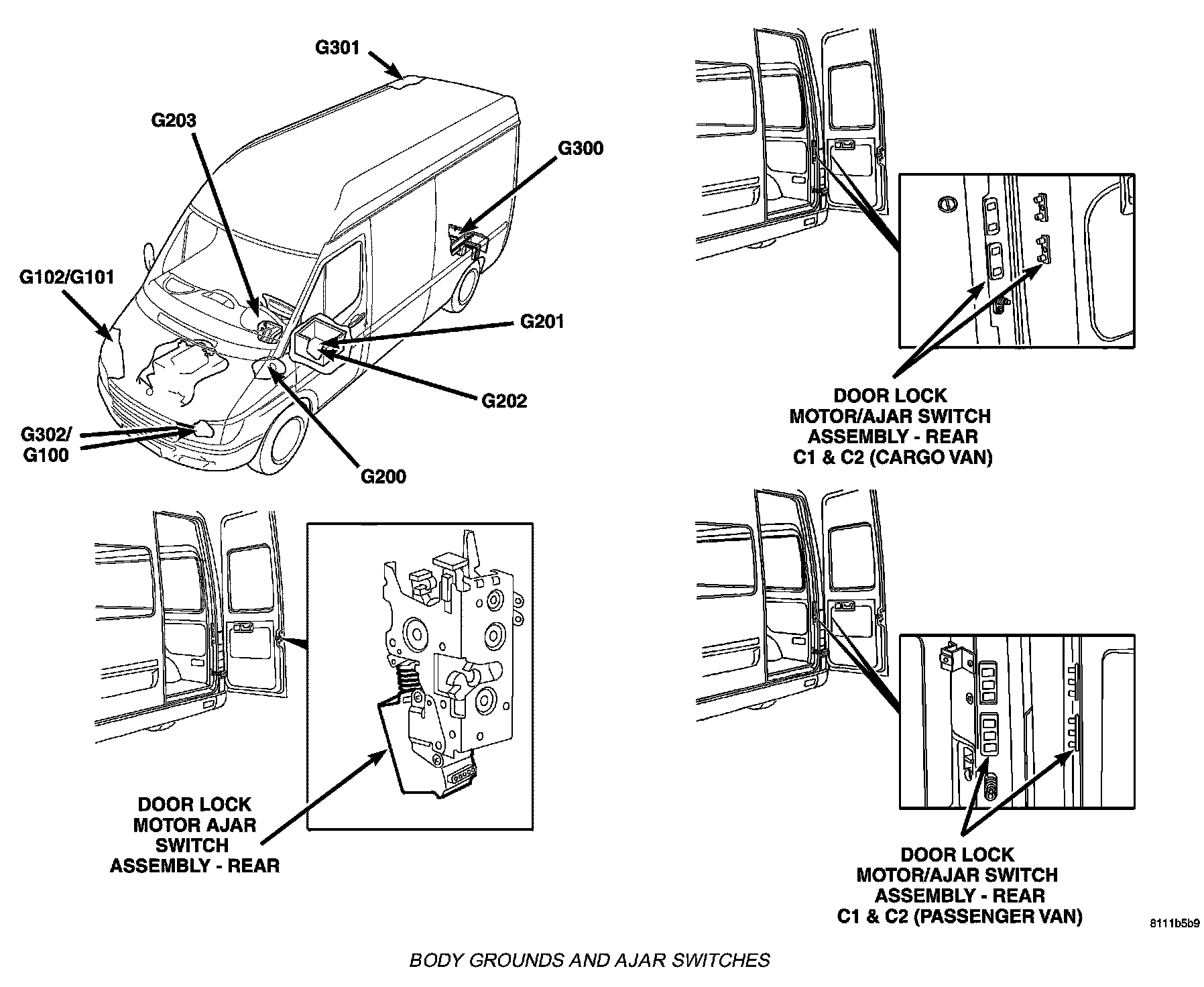

Body Grounds And Ajar Switches:

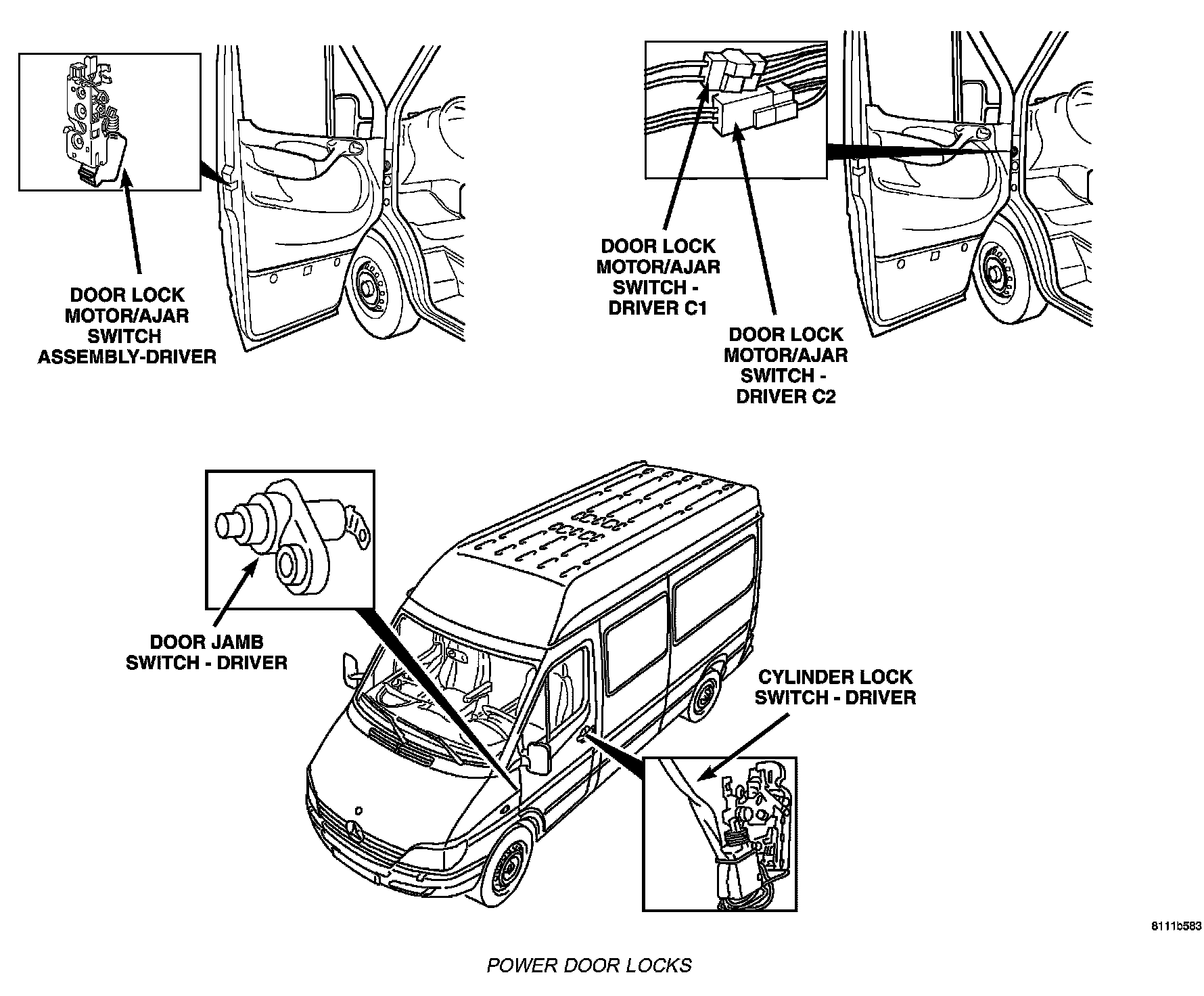

Power Door Locks:
