Brake Pedal and Bracket: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the cowl panel grille. Refer to: Cowl Panel Grille .

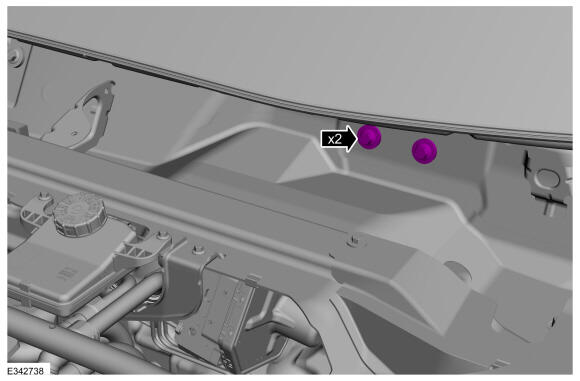

  2. Remove the 2 LH side (under hood) instrument panel bolts

    Torque: 25 Nm

    GFD870285Courtesy of FORD MOTOR COMPANY

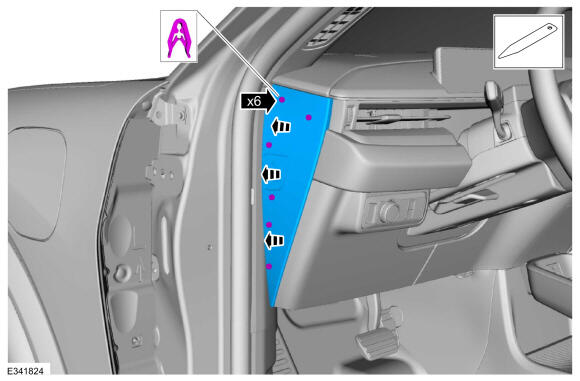

  3. Release the clips and remove the LH instrument panel side trim panel.Use the General Equipment: Interior Trim Remover
    GFD870286Courtesy of FORD MOTOR COMPANY
  4. Remove the cowl side trim panel.

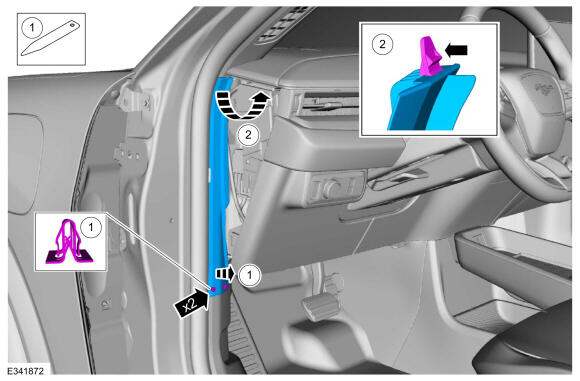

    1. Release the cowl side trim panel lower clips.Use the General Equipment: Interior Trim Remover
    2. Release the cowl side trim panel upper tab.

    GFD870287Courtesy of FORD MOTOR COMPANY

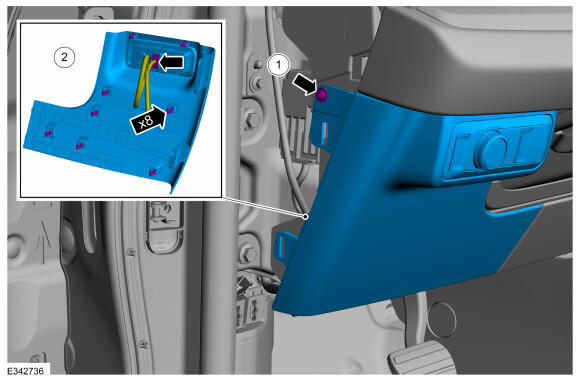

    1. Remove the LH trim panel screw.
    2. Release the clips, disconnect the electrical connector and remove the LH trim panel.
    GFD870288Courtesy of FORD MOTOR COMPANY

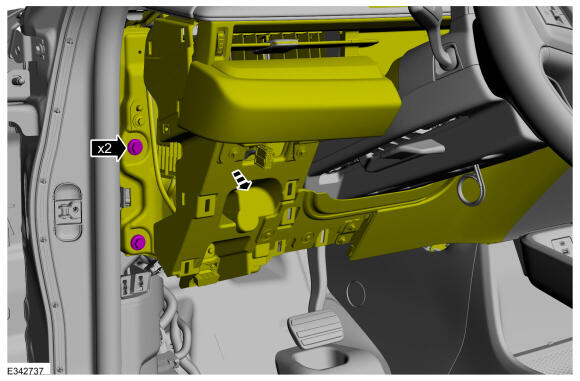

  6. Remove the LH instrument panel bolts, and pull the left side of the instrument panel rearward to get access to the brake pedal.

    Torque: 25 Nm

    GFD870289Courtesy of FORD MOTOR COMPANY
  7. Remove the accelerator pedal.

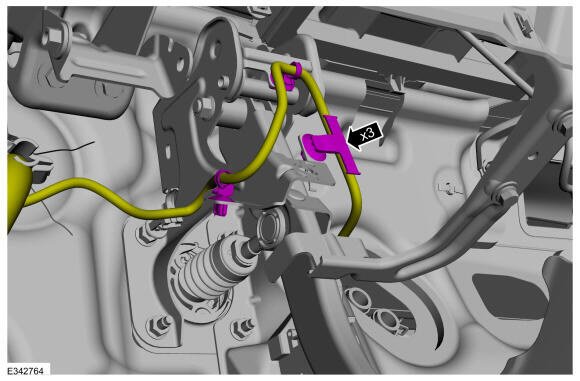

  8. Detach the harness retainers and position the wiring aside.
    GFD870290Courtesy of FORD MOTOR COMPANY

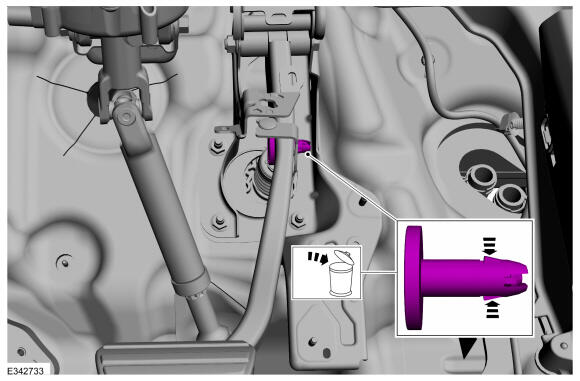

  9. Remove and discard the clevis pin.
    GFD870291Courtesy of FORD MOTOR COMPANY

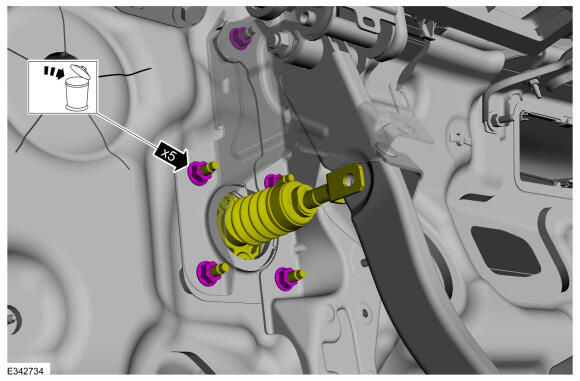

  10. Remove the brake pedal bracket nuts.
    GFD870292Courtesy of FORD MOTOR COMPANY
  11. NOTE: This step requires the aid of another technician.

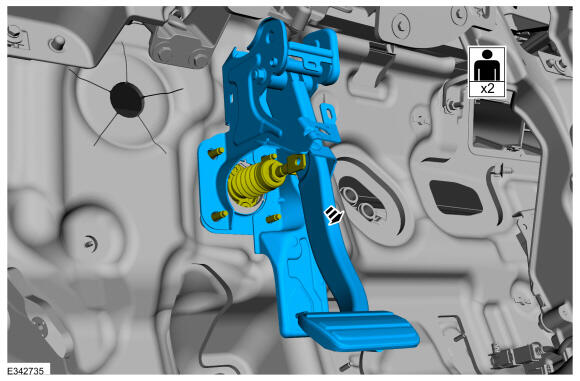

    Pull the LH side of the instrument panel away from the cowl slightly and remove the brake pedal and bracket.

GFD870293Courtesy of FORD MOTOR COMPANY
