Brake Pedal and Bracket: Installation

  1. To install, reverse the removal procedure.
  2. Install the brake pedal bracket nuts in the sequence shown.

    Torque: 23 Nm

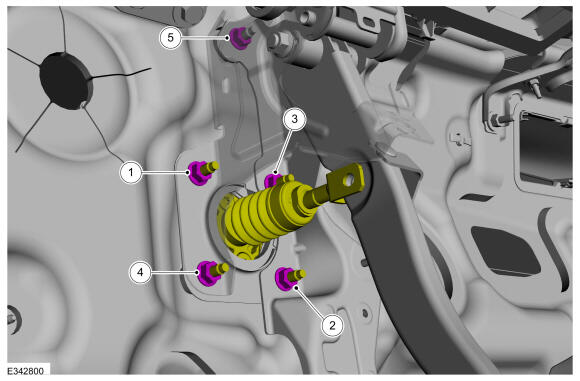

Fig 1: Brake Pedal Bracket Tightening Sequence
GFD870294Courtesy of FORD MOTOR COMPANY
