Message Center

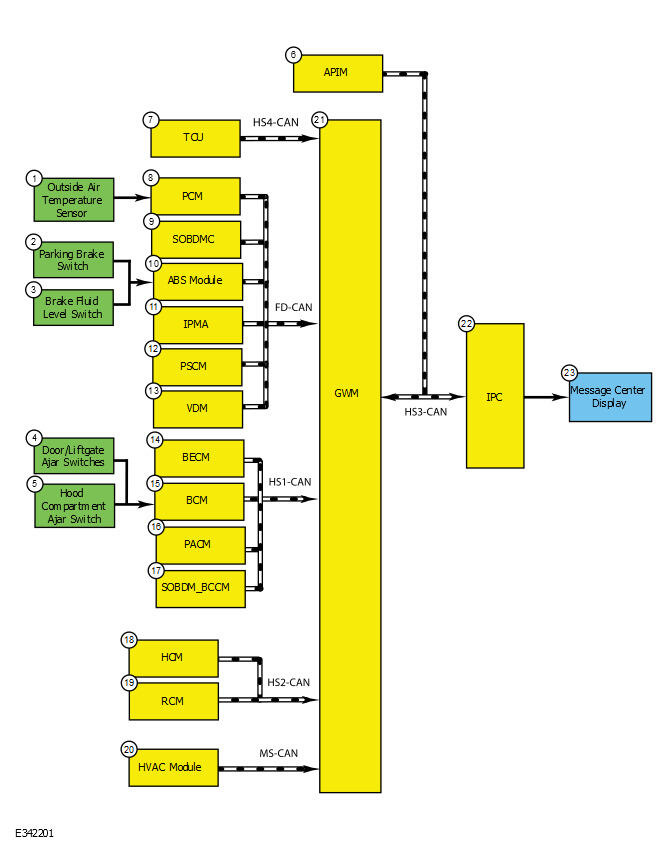

System Diagram

GFD870954Courtesy of FORD MOTOR COMPANY
Item Description
1 Outside air temperature sensor
2 Parking brake switch
3 Brake fluid level switch
4 Door/liftgate ajar switches
5 Hood compartment ajar switch
6 APIM
7 TCM
8 PCM
9 SOBDMC
10 ABS module
11 IPMA
12 PSCM
13 VDM
14 BECM
15 BCM
16 PACM
17 SOBDM _ Battery Charge Control Module (BCCM)
18 HCM
19 RCM
20 HVAC module
21 GWM
22 IPC
23 Message center display

Network Message Chart - Displays

The data in each display is shown when the IPC receives messaged inputs from other modules on the CAN, unless the display data is controlled exclusively by the IPC. The IPC communicates on the HS-CAN3. If the originating module communicates on a network other than the HS-CAN3, the messaged signals are sent to the GWM first, then to the IPC.

Display Network Message Originating Module Originating CAN Receiving Module
Adaptive cruise control Cruise control set speed display PCM FD-CAN IPC
Adaptive cruise control gap distance display IPMA
Adaptive cruise control gap distance display IPMA
Brake Coach Brake event data
Regenerative braking event level data		 SOBDMC FD-CAN IPC
Compass Compass direction APIM HS-CAN3 IPC
Digital speedometer Vehicle speed PCM FD-CAN IPC
Dimming Control Mirror Dimming level BCM HS-CAN1 IPC
Drive range Vehicle electric range display SOBDMC FD-CAN IPC
APIM
Drive range distance to destination Distance to stopover data (distance to destination) APIM HS-CAN3 IPC
SOBDMC
Stopover status (destination type) APIM HS-CAN3 IPC
SOBDMC
Eco coach Eco coach data display PCM FD-CAN IPC
Forward collision alert Forward collision warning indicator request IPMA FD-CAN IPC
Lane keeping system Hands off display
Lane keeping system status display		 IPMA FD-CAN IPC
Lane centering aid system Traffic jam assist status IPMA FD-CAN IPC
Navigation Navigation status APIM HS-CAN3 IPC
Odometer Odometer count PCM FD-CAN IPC
Outside air temperature Ambient air temperature filtered PCM FD-CAN HVAC module
Outside air temperature status HVAC module MS-CAN IPC
PRNDL Transmission gear display mode
Transmission gear display		 SOBDMC FD-CAN IPC
Vehicle speed PCM
Ignition status
Power shed level request
Transport mode		 BCM HS-CAN1
TPMS Tire pressure system status
Tire pressure placard data		 BCM HS-CAN1 IPC

Network Message Chart - Warning Messages

A warning message is displayed in the message center when the IPC receives messaged inputs from other modules on the CAN, unless the message is for a function exclusive to the IPC. The IPC communicates on the HS-CAN3. If the originating module communicates on a network other than the HS-CAN3, the messaged signals are sent to the GWM first, then to the IPC.

IPC Message Network Message Originating Module Originating CAN Receiving Module
Adaptive cruise control Adaptive cruise control message center request
Adaptive cruise control warning display		 IPMA FD-CAN IPC
Adaptive headlamps Adaptive headlamp fault HCM HS-CAN2 IPC
Auto hold Auto hold message request ABS module FD-CAN IPC
Auto stop start Stop start message request PCM FD-CAN IPC
Automatic engine shutdown Engine idle shutdown status PCM FD-CAN IPC
AWD off AWD status request PCM FD-CAN IPC
BLIS / CTA Cross traffic alert brake warning-left
Cross traffic left sensor status
Side obstacle sensor status-left		 IPMA FD-CAN IPC
Cross traffic alert brake warning-right
Cross traffic right sensor status
Side obstacle sensor status-right
Brake system/Parking brake engaged/Brake fluid low Brake fluid level status ABS FD-CAN BCM
Brake (red) warning indicator request ABS module FD-CAN IPC
Brake fluid level low message request
Brake chime request		 BCM HS-CAN1 IPC
Brake applied - power reduced Brake pedal applied message request PCM FD-CAN IPC
Brake pad wear Brake pad wear message request ABS FD-CAN IPC
Charging system Low battery charge warning message request SOBDMC FD-CAN IPC
Charge port door ajar Charge port door ajar status SOBDMC FD-CAN IPC
Check AWD AWD service required PCM FD-CAN IPC
Destination alert - not enough for destination Distance to stopover data (distance to destination) APIM HS-CAN3 SOBDMC
Vehicle electric range display SOBDMC FD-CAN IPC
Distance to empty (Cloud enhanced electric range) Distance to empty offset message request SOBDMC FD-CAN IPC
Door/hood compartment/liftgate ajar Driver door ajar status
Passenger door ajar status
Right rear door ajar status
Left rear door ajar status
Hood ajar status
Liftgate ajar status		 BCM HS-CAN1 IPC
Driver alert Driver alert warning message display IPMA FD-CAN IPC
Electric parking brake Brake lamp request
Parking brake message request
Park brake (yellow) warning indicator request		 ABS module FD-CAN IPC
Electronic latch Door latch message request
Lock system message request		 BCM HS-CAN1 IPC
Front camera Camera status display IPMA FD-CAN IPC
Hazard - system failure Transmission warning indicator request SOBDMC FD-CAN IPC
Battery warning indicator request BECM HS-CAN1 IPC
High voltage to low voltage energy transfer Hybrid battery low charge status BCM HS-CAN1 IPC
Hill start assist Hill start assist status ABS module FD-CAN IPC
Ignition-engine on Transmission gear display
Power pack status		 SOBDMC FD-CAN IPC
Vehicle speed PCM FD-CAN IPC
Driver door ajar status BCM HS-CAN1 IPC
Lane centering aid Traffic jam assist message request
Traffic jam assist warning request		 IPMA FD-CAN IPC
Lane keeping system Lane keeping system status
Camera status display		 IPMA FD-CAN IPC
Limited battery performance Battery performance message display SOBDMC FD-CAN IPC
Load shed Power shed level request BCM HS-CAN1 IPC
MyKey® feature MyKey® audio limit request
MyKey® system information request
MyKey® speed setting request		 APIM HS-CAN3 IPC
Park aid switch status IPMA FD-CAN IPC
Vehicle speed PCM FD-CAN IPC
One-pedal drive One pedal drive indicator display PCM FD-CAN IPC
Parking aid Parking aid fault status IPMA FD-CAN IPC
Passive key and immobilizer system Immobilizer message display BCM HS-CAN1 IPC
Power pack status SOBDMC FD-CAN
Pedestrian alert Pedestrian alert fault PACM HS-CAN1 IPC
Perimeter alarm Perimeter alarm chime request BCM HS-CAN1 IPC
Plug in vehicle - outside air temperature high/low Ambient air temperature plug in display SOBDMC FD-CAN IPC
Power child door locks, switch inhibit, low key FOB battery Lock system message request BCM HS-CAN1 IPC
Power steering EPAS failure PSCM FD-CAN IPC
Remote start Remote start status BCM HS-CAN1 IPC
Reverse brake assist Cross traffic alert brake warning-left
Cross traffic alert brake warning-right
Cross traffic alert left sensor status
Cross traffic alert right sensor status
Park aid fault status		 IPMA FD-CAN IPC
Gear lever position SOBDMC FD-CAN IPC
Rear seatbelt monitor Driver rear seatbelt buckle status
Passenger rear seatbelt buckle status
Rear center seatbelt buckle status		 RCM HS-CAN2 IPC
Seatbelt (Buckle up) Driver seatbelt buckle status RCM HS-CAN2 IPC
Service AdvanceTrac Stability-traction control chime request ABS module FD-CAN IPC
Starting system Starting system message request PCM FD-CAN IPC
Steering wheel lock Steering wheel lock message request BCM HS-CAN1 IPC
TPMS Tire pressure system status BCM HS-CAN1 IPC
Traffic sign recognition Traffic sign recognition message request IPMA FD-CAN IPC
Transport mode Transport mode BCM HS-CAN1 IPC
Vehicle dynamic suspension (GT only) Vehicle dynamic suspension message request VDM FD-CAN IPC
Vehicle inhibit (over the air updates) Vehicle start inhibit message display GWM (Enhanced Central Gateway [ECG]) HS-CAN3 IPC
Wrong way alert (except North America) Embedded navigation status APIM HS-CAN3 IPC
Traffic sign recognition message request IPMA FD-CAN IPC
