Removal And Installation: Radiator: Removal
WARNING: This page is about a different car, the 2024 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the supercharger cooling system. Refer to: Supercharger Cooling System Draining, Filling and Bleeding .

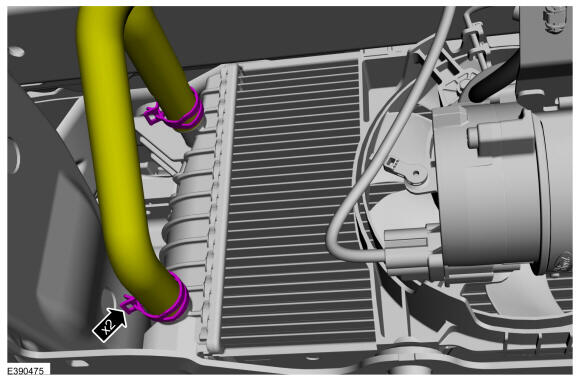

- Release the clamps and disconnect the coolant hoses.Use the General Equipment: Hose Clamp Remover/Installer
-
NOTE: This step requires the aid of another technician.

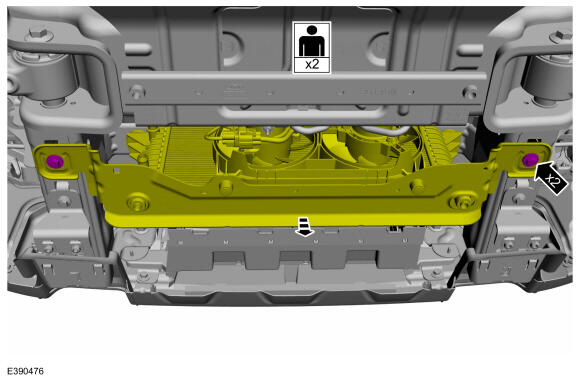

Remove the supercharger radiator lower support bolts and lower the support-radiator-fan assembly.
Torque
: 40 Nm
-
NOTE: This step requires the aid of another technician.

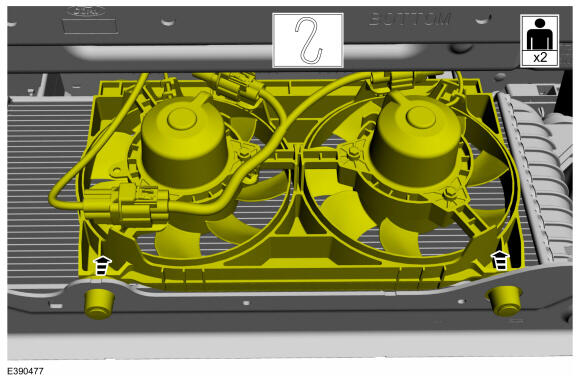

Separate the cooling fan motor and shroud from the lower support and support it.

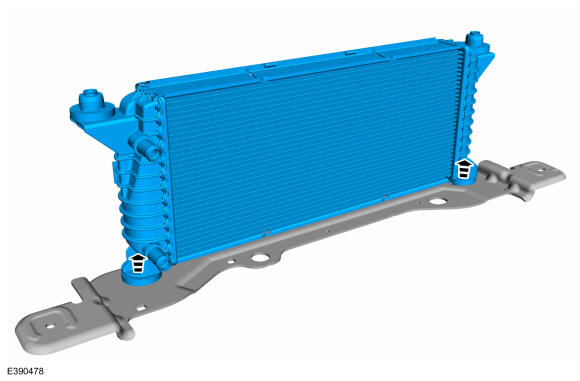

- Remove the supercharger radiator from the lower support.

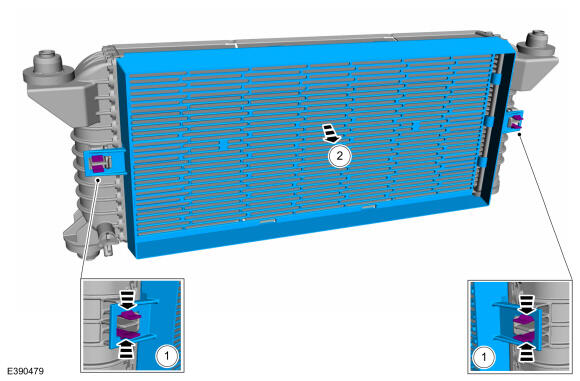

- Release the tabs and remove the front shield from the supercharger radiator.
