Cooling Fan Motor and Shroud: Removal
WARNING: This page is about a different car, the 2024 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-
NOTE: This step requires the aid of another technician.
Remove the bolts and the engine front undershield.
Torque
: 1:: 48 Nm 2:: 55 Nm

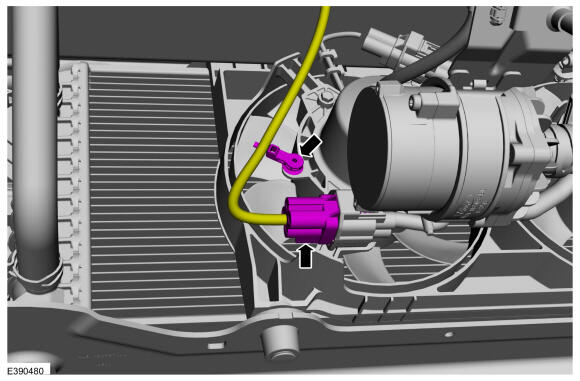

- Disconnect the electrical connector and detach the wiring harness retainer.
-
NOTE: This step requires the aid of another technician.

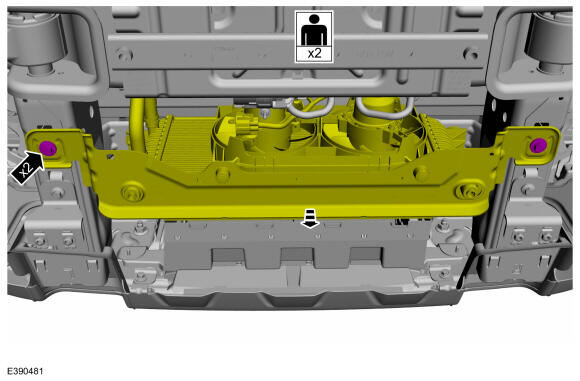

Remove the supercharger radiator lower support bolts and lower the support-radiator-fan assembly.
Torque
: 40 Nm
-
NOTE: This step requires the aid of another technician.

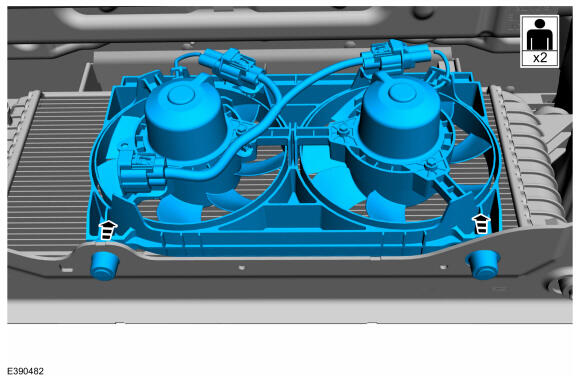

Remove the cooling fan motor and shroud from the lower support.

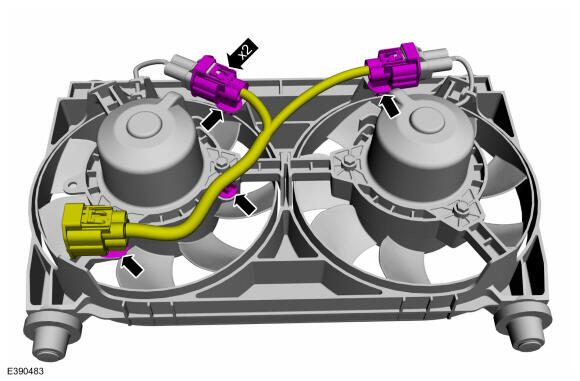

- If necessary.Disconnect the electrical connectors, detach the wiring harness retainers and remove the harness from the fan.
