Coolant Pump: Removal

WARNING: This page is about a different car, the 2024 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Drain the supercharger cooling system. Refer to: Supercharger Cooling System Draining, Filling and Bleeding (303-03K).

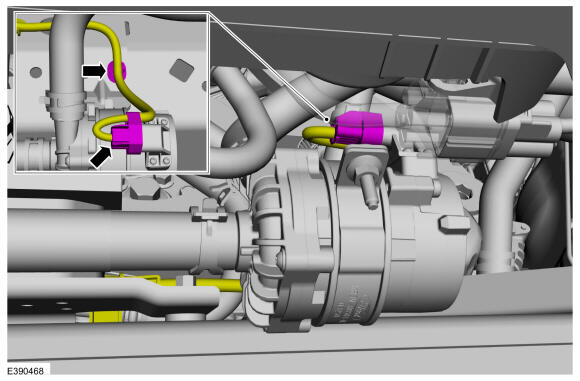

- Disconnect the electrical connector.
- Detach the wiring harness retainer.
Courtesy of FORD MOTOR COMPANY

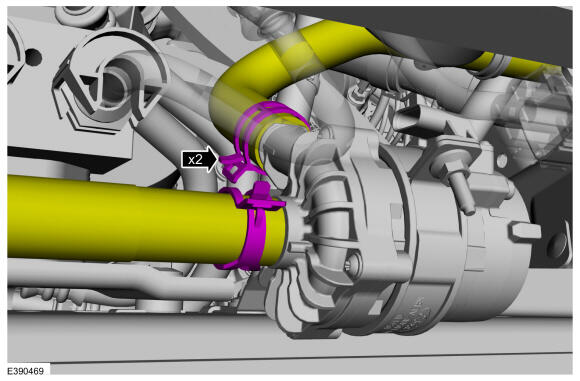

Release the clamps and disconnect the coolant hoses.Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

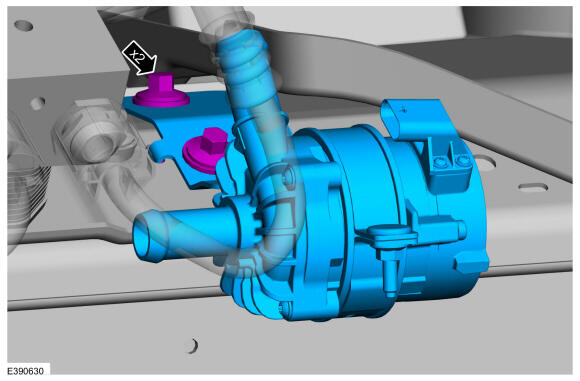

Remove the bolts and the coolant pump.
Torque

: 10.5 Nm

Courtesy of FORD MOTOR COMPANY
