Component Location
WARNING: This page is about a different car, the 2024 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

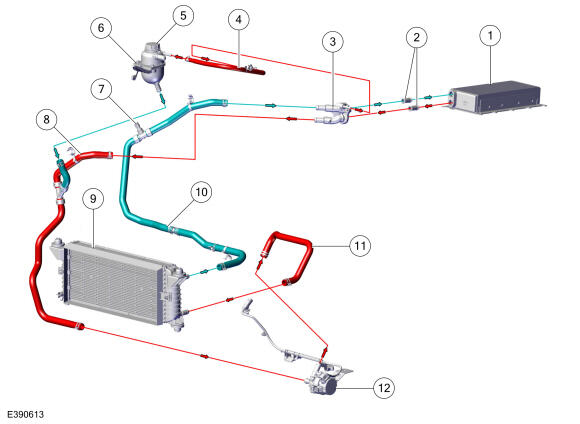

| Item | Description |
|---|---|
| 1 | Charge air cooler |
| 2 | Intake manifold intercooler coolant connector |
| 3 | Intake manifold intercooler coolant tube assembly |
| 4 | Radiator vent hose |
| 5 | Degas bottle cap |
| 6 | Degas bottle |
| 7 | Coolant temperature sensor |
| 8 | Intercooler hose assembly |
| 9 | Radiator |
| 10 | Radiator outlet hose |
| 11 | Radiator inlet hose |
| 12 | Charge air coolant pump |
