Instrument Cluster

WARNING: This page is about a different car, the 2024 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

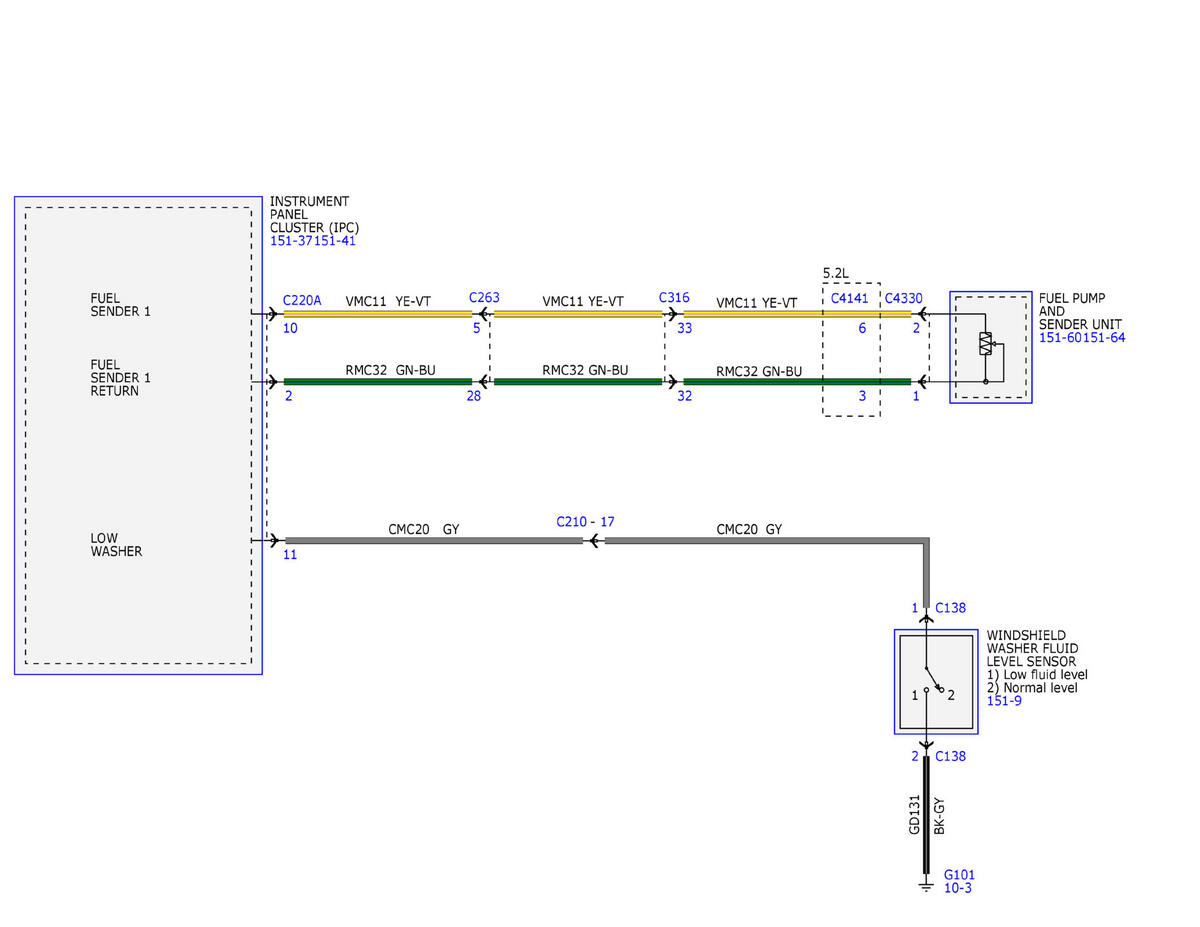

Fig 1: Instrument Cluster (1 Of 9)

Courtesy of FORD MOTOR COMPANY

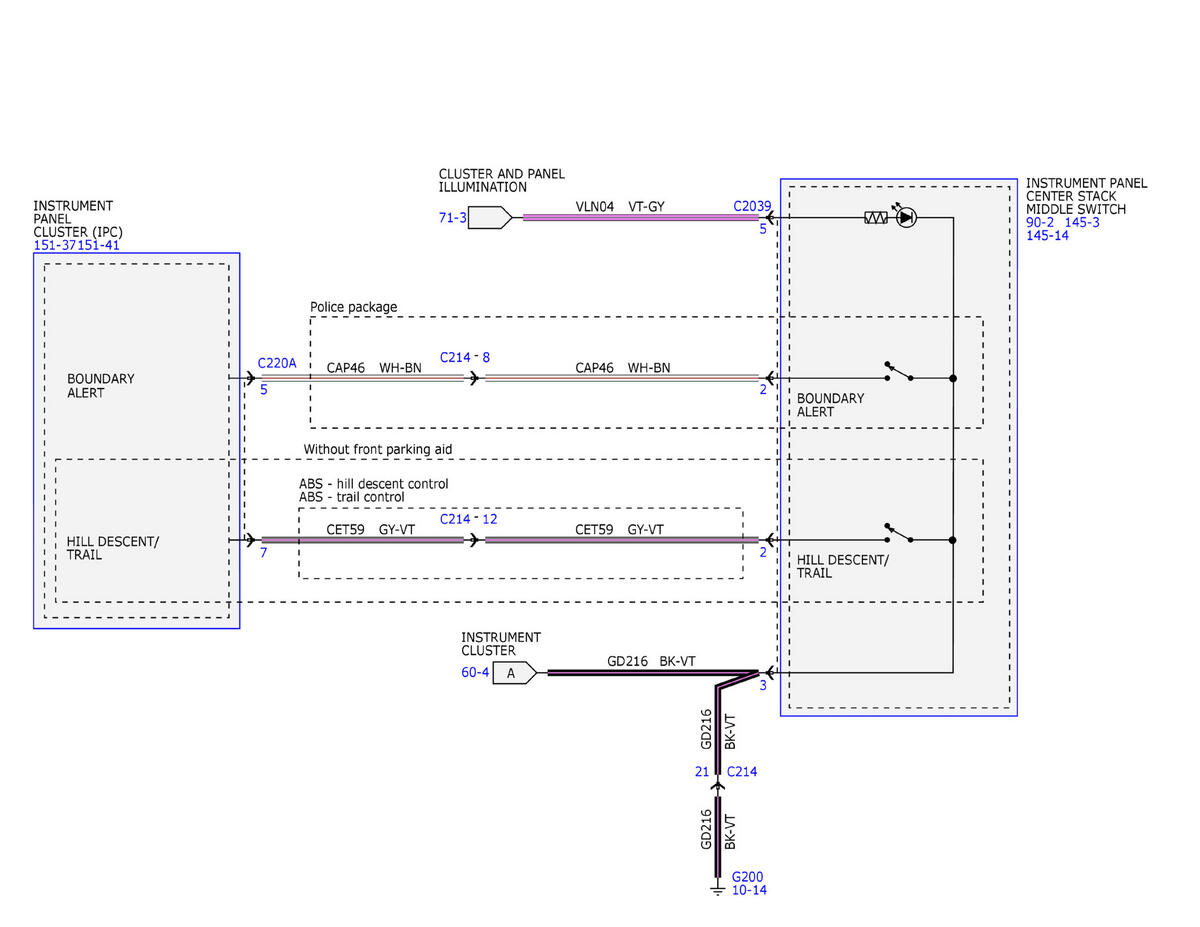

Fig 2: Instrument Cluster (2 Of 9)

Courtesy of FORD MOTOR COMPANY

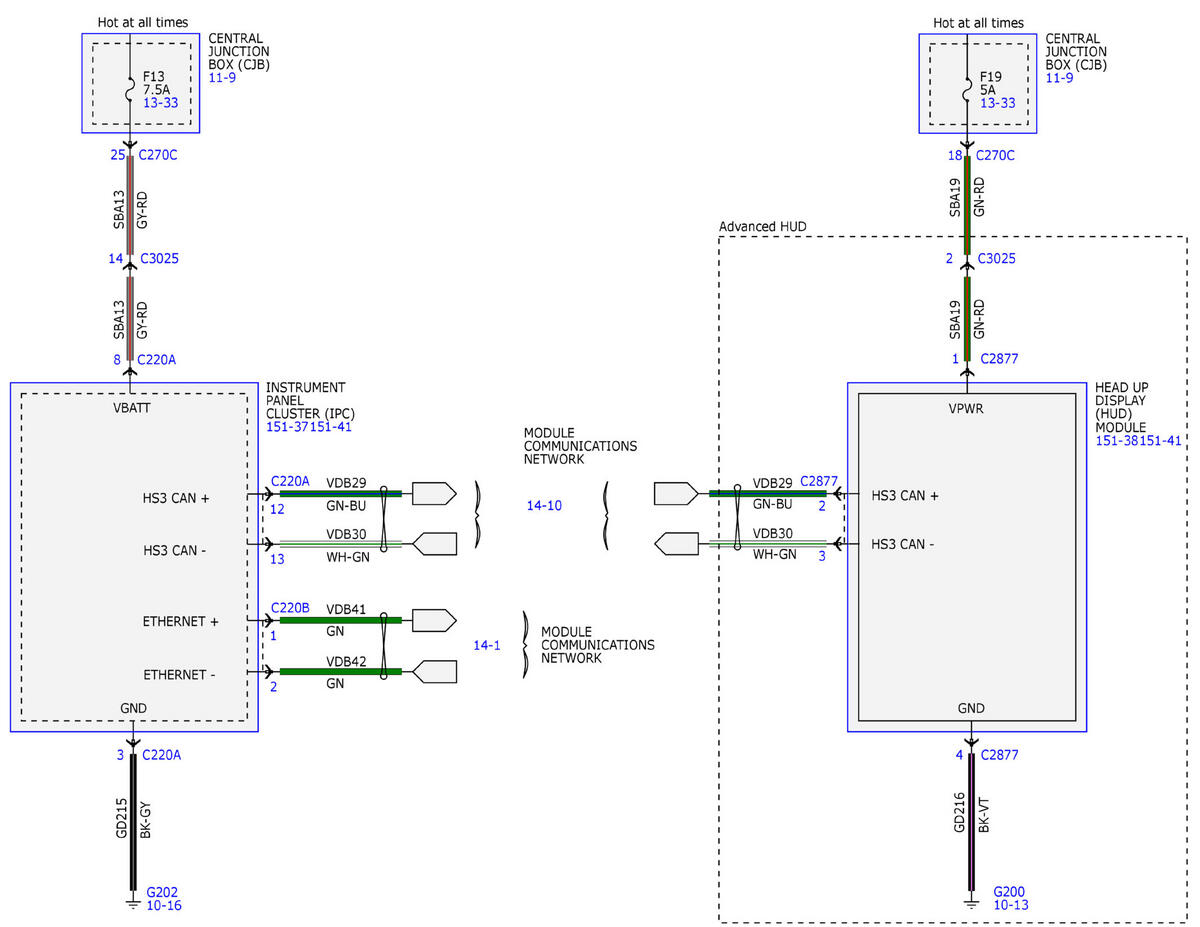

Fig 3: Instrument Cluster (3 Of 9)

Courtesy of FORD MOTOR COMPANY

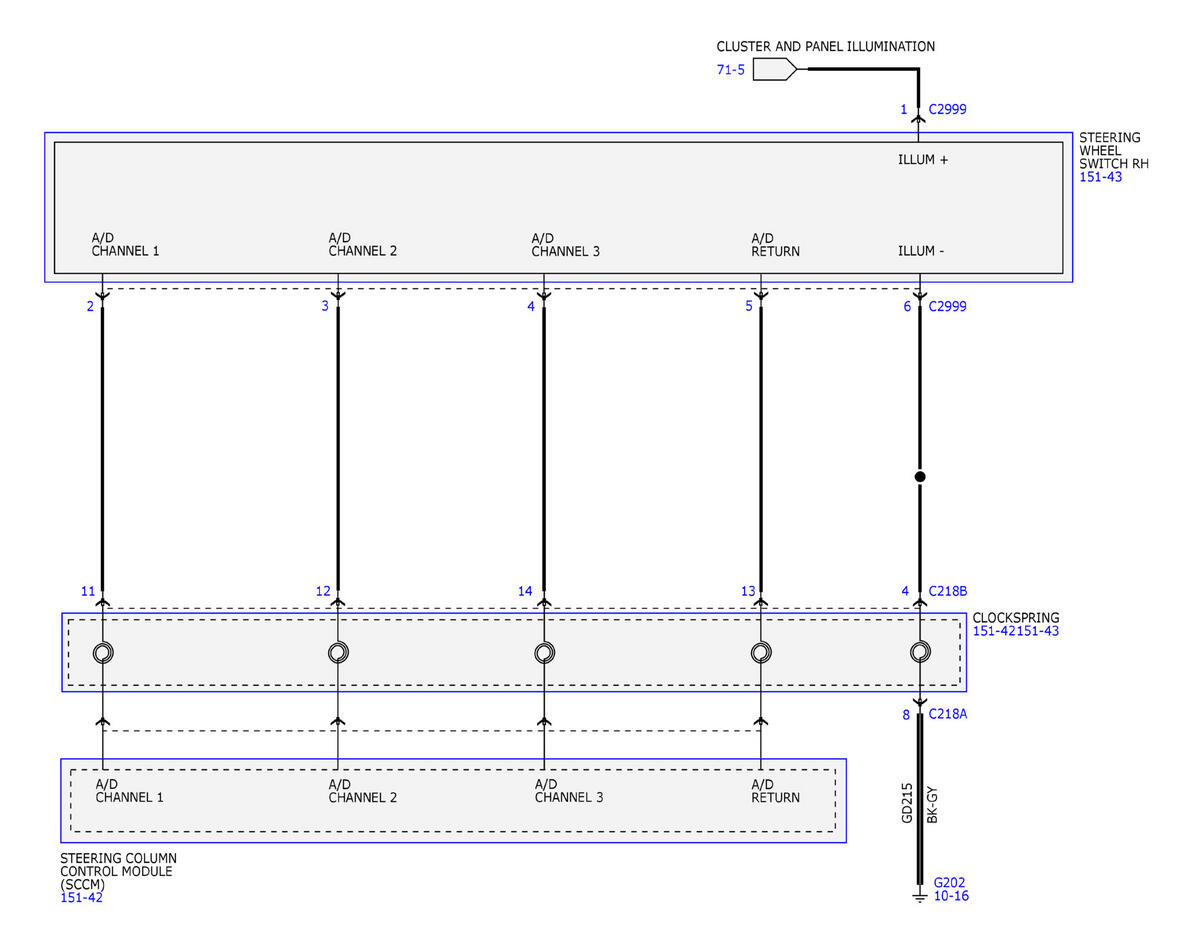

Fig 4: Instrument Cluster (4 Of 9)

Courtesy of FORD MOTOR COMPANY

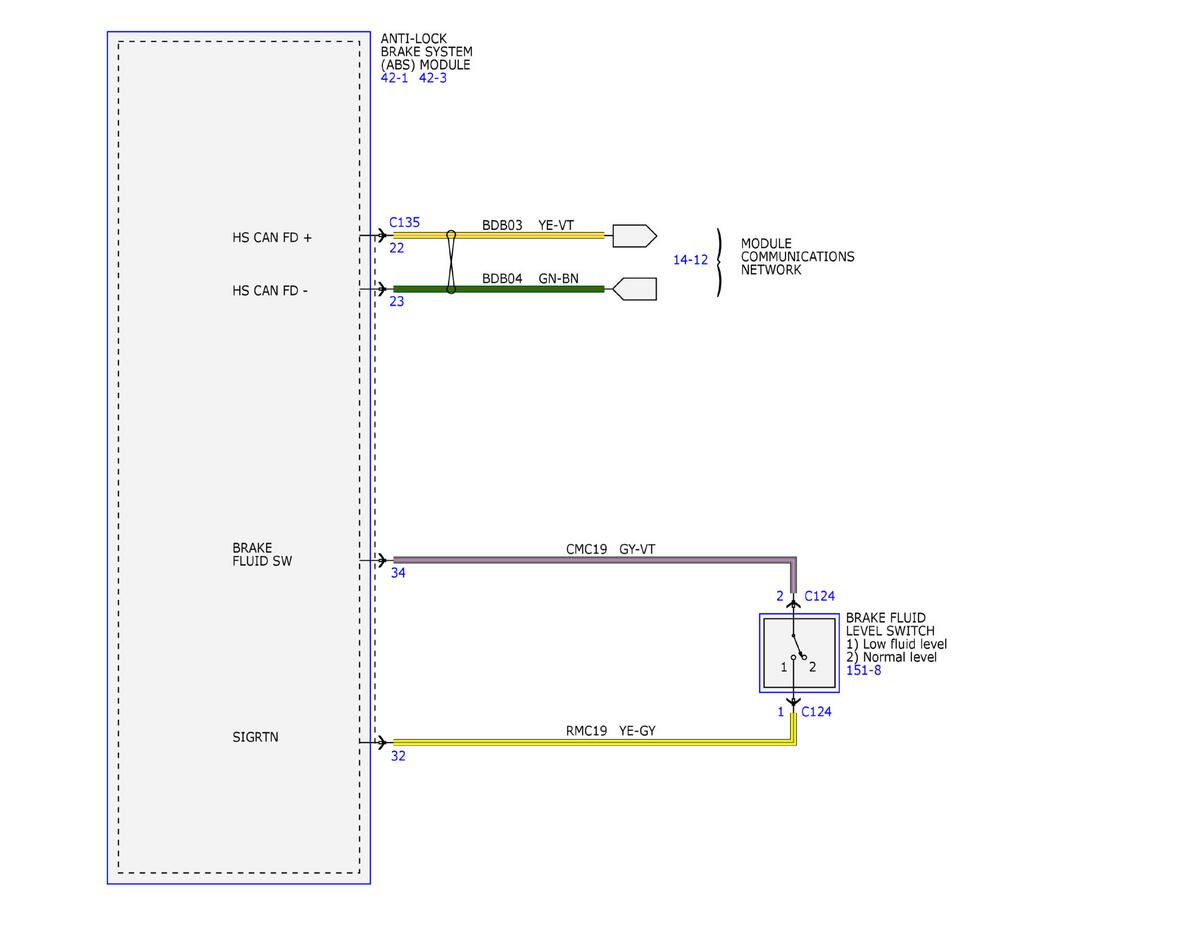

Fig 5: Instrument Cluster (5 Of 9)

Courtesy of FORD MOTOR COMPANY

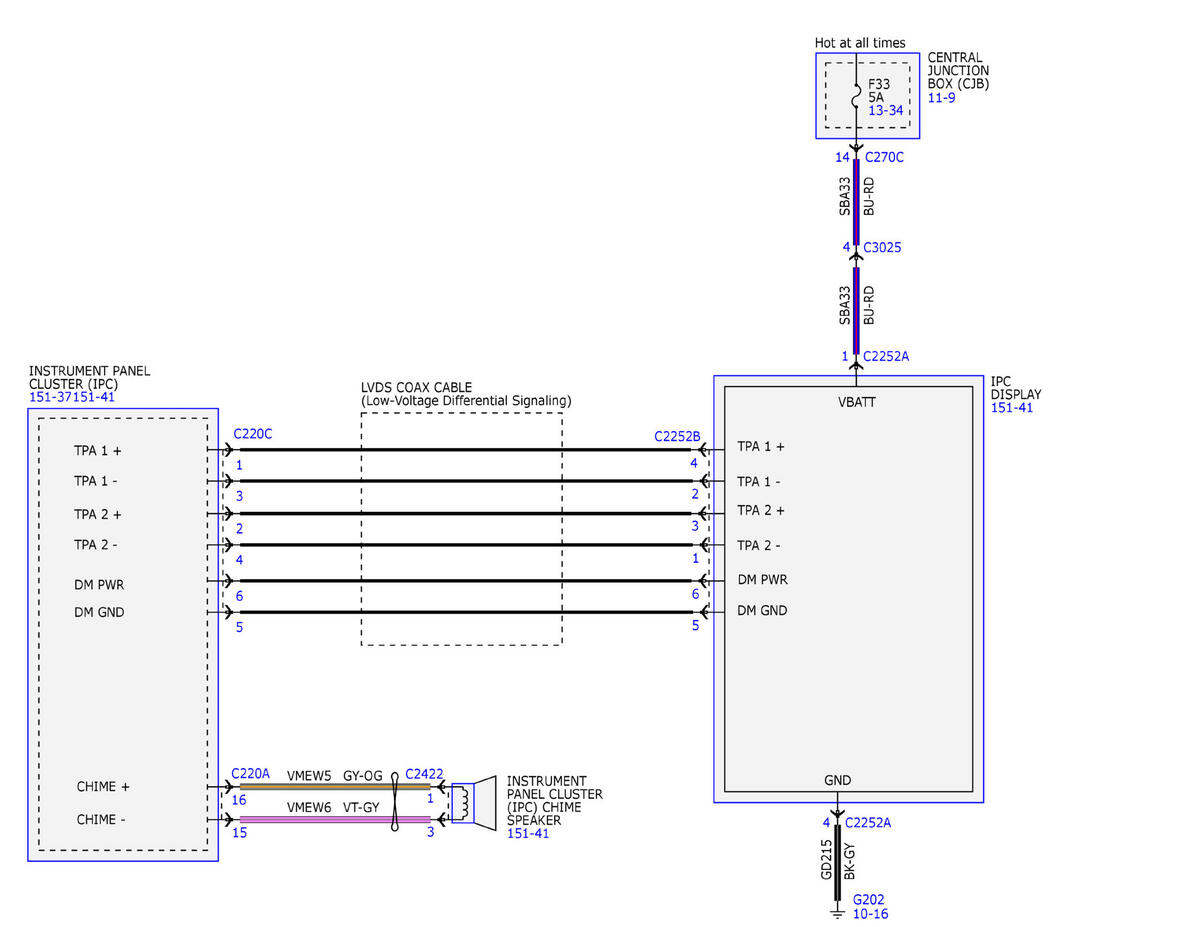

Fig 6: Instrument Cluster (6 Of 9)

Courtesy of FORD MOTOR COMPANY

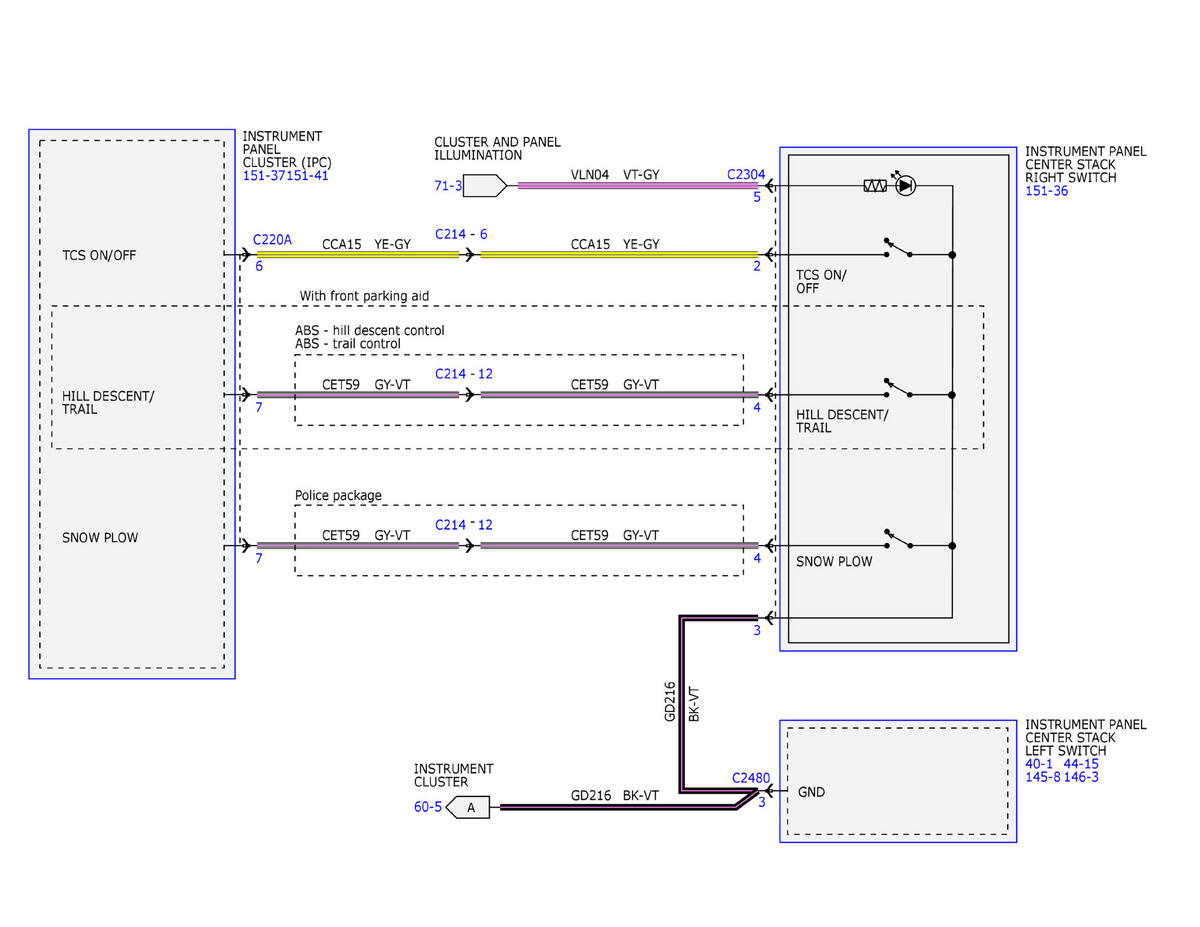

Fig 7: Instrument Cluster (7 Of 9)

Courtesy of FORD MOTOR COMPANY

Fig 8: Instrument Cluster (8 Of 9)

Courtesy of FORD MOTOR COMPANY

Fig 9: Instrument Cluster (9 Of 9)

Courtesy of FORD MOTOR COMPANY
