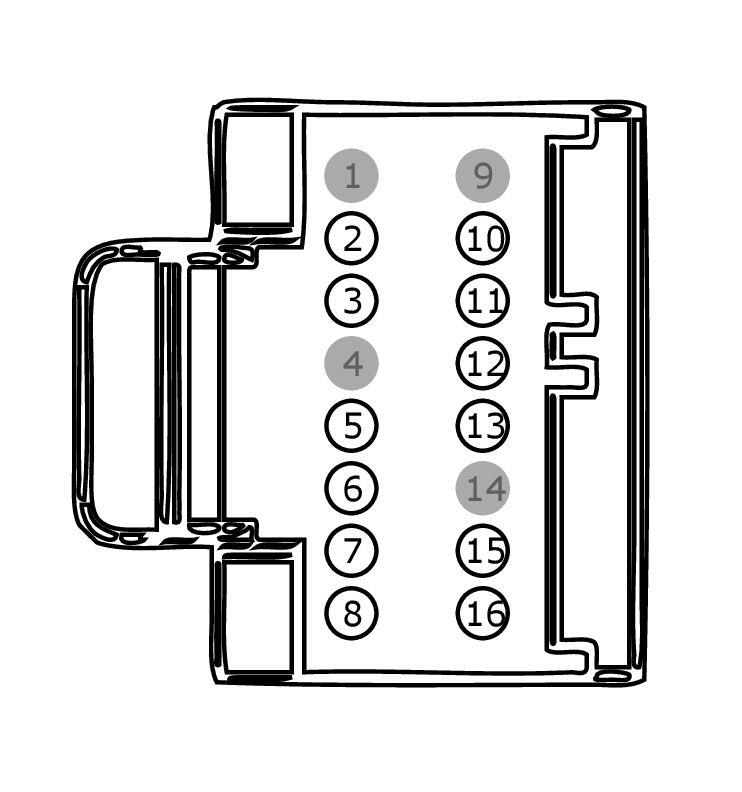

Connector End View C220A - INSTRUMENT PANEL CLUSTER (IPC)
WARNING: This page is about a different car, the 2024 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C220A | INSTRUMENT PANEL CLUSTER (IPC) | BK | 14401 | part# N/A | See Below |
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * | * | Not Used | N/A | ||||
| 2 | RMC32 (GN-BU) | 22 | ECU - SENSOR FUEL LEVEL | N/A | ||||
| 3 | GD215 (BK-GY) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT | N/A | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | CAP46 (WH-BN) | 22 | SWITCH - POLICE BOUNDARY ALERT | N/A | ||||
| 6 | CCA15 (YE-GY) | 22 | SWITCH - IVD/TCS DISABLE | N/A | ||||
| 7 | CET59 (GY-VT) | 22 | SWITCH - HILL DESCENT CONTROL | N/A | ||||
| 8 | SBA13 (GY-RD) | 22 | FUSE - 13 | N/A | ||||
| 9 | * | * | Not Used | N/A | ||||
| 10 | VMC11 (YE-VT) | 22 | SENSOR - FUEL LEVEL (FLI) | N/A | ||||
| 11 | CMC20 (GY) | 22 | SWITCH - LOW LEVEL WASHER FLUID | N/A | ||||
| 12 | VDB29 (GN-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH | N/A | ||||
| 13 | VDB30 (WH-GN) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW | N/A | ||||
| 14 | * | * | Not Used | N/A | ||||
| 15 | VMEW6 (VT-GY) | 22 | ECU - INTG MM AND CLUS # CHIME (-) | N/A | ||||
| 16 | VMEW5 (GY-OG) | 22 | ECU - INTG MM AND CLUS # CHIME(+) | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number
: WPT-1560
Service Part Number:
JU2Z-14S411-APA
Gauge:
20
Pin material:
Tin
Cavities:
16
Vehicle Uses:
Instrument ClusterModule - Seat MemoryModule - Upfitter InterfaceRadio - Amplifier
