Brake Fluid Reservoir: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the EBB. Refer to: ELECTRIC BRAKE BOOSTER (EBB)

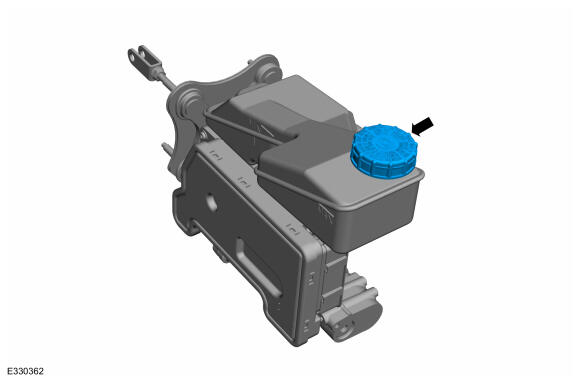

Remove the brake fluid reservoir cap.

Courtesy of FORD MOTOR COMPANY

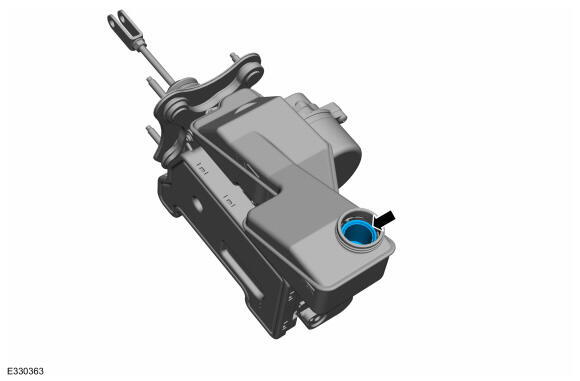

Remove the brake fluid reservoir filter and remove the brake fluid.

Courtesy of FORD MOTOR COMPANY

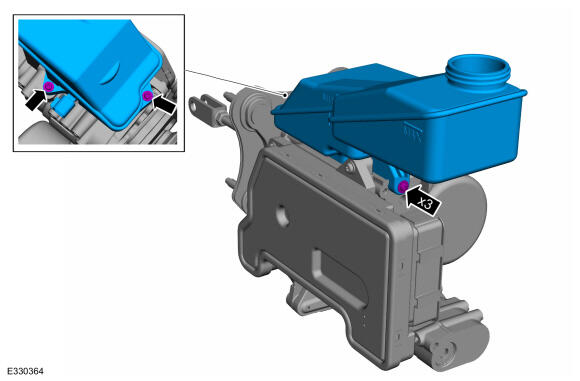

Remove the screws and the brake fluid reservoir.
Torque

: 2.6 Nm

Courtesy of FORD MOTOR COMPANY

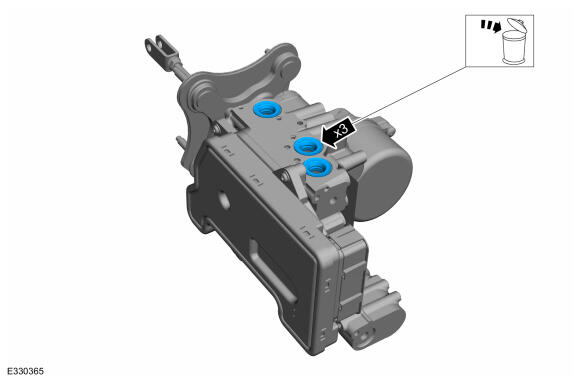

NOTE: Brake fluid reservoir mounting screws and the sealing washers are supplied with the brake fluid reservoir kit.

Ensure that old brake fluid reservoir sealing washers are removed before installing a new reservoir with new washers.

Courtesy of FORD MOTOR COMPANY
