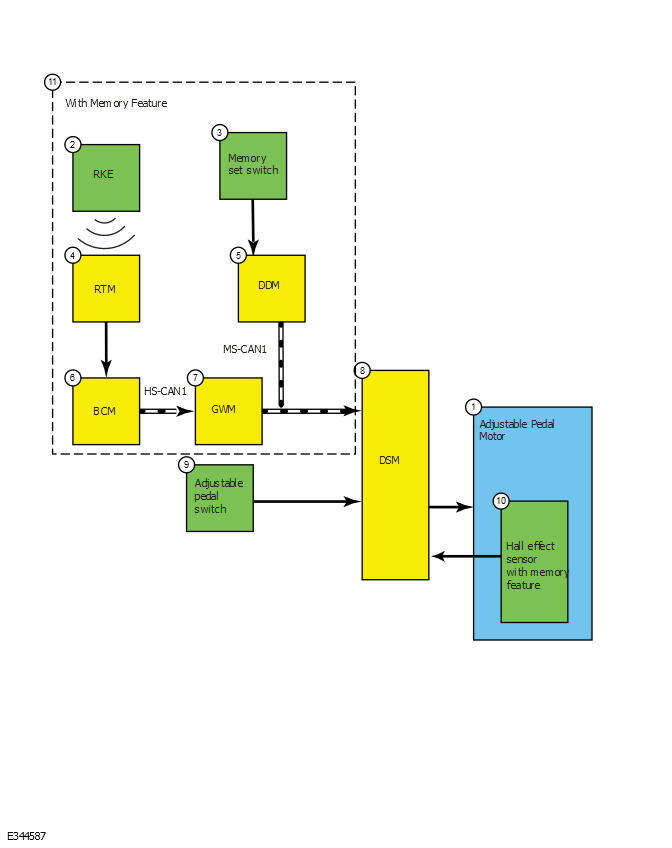

System Diagram - Adjustable Pedals

GFD817115Courtesy of FORD MOTOR COMPANY
Item Description
1 Adjustable Pedal Motor
2 RKE
3 Memory set switch
4 RTM
5 DDM
6 BCM
7 GWM
8 DSM
9 Adjustable pedal switch
10 Hall effect sensor with memory feature
11 With Memory Feature
