Instrument Panel Cluster (IPC) Chime Speaker: Removal

  1. Remove the IPC. Refer to: Instrument Panel Cluster (IPC) - Electric, Vehicles With: 15.5 Inch Center Display Screen .

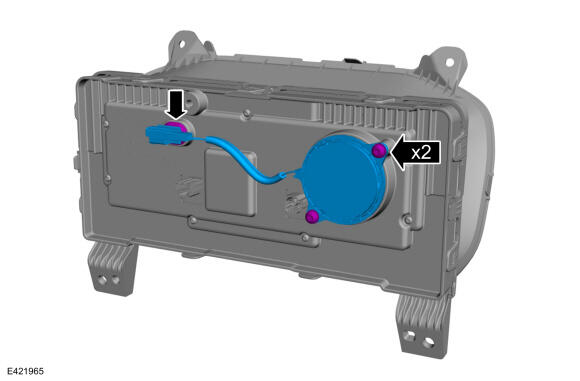

  2. Remove the screws, detach the clip and remove the chime speaker.
GFD823256Courtesy of FORD MOTOR COMPANY
