Instrument Panel Cluster (IPC) - Vehicles With: 12 Inch Center Display Screen: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the IPC following the on-screen instructions. Record the odometer value from the original IPC. If the odometer value cannot be obtained from the IPC (display failure), perform the diagnostic routine. If the value cannot be obtained after the diagnostic routine, the customer should supply the approximate odometer value.
Remove the center display screen. Refer to: Center Display Screen - XL/XLT, Vehicles With: 12 Inch Center Display Screen .

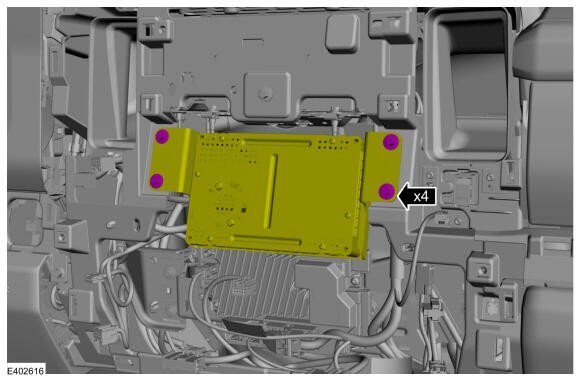

Remove the bolts.

Courtesy of FORD MOTOR COMPANY

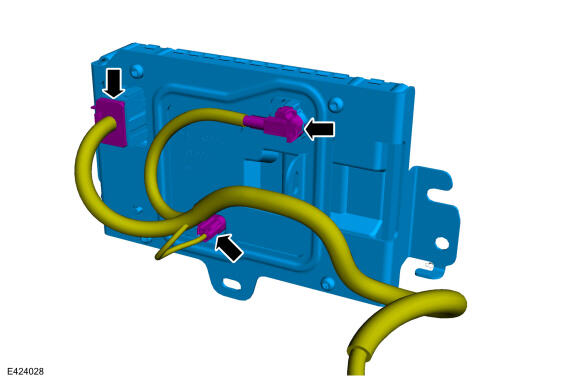

Disconnect the electrical connecters and remove the IPC module.

Courtesy of FORD MOTOR COMPANY
