Instrument Panel Cluster (IPC) - Electric, Vehicles With: 15.5 Inch Center Display Screen: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the IPC following the on-screen instructions. Record the odometer value from the original IPC. If the odometer value cannot be obtained from the IPC (display failure), perform the diagnostic routine. If the value cannot be obtained after the diagnostic routine, the customer should supply the approximate odometer value.

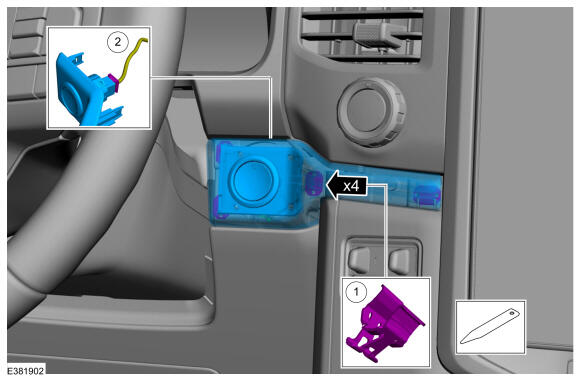

1. Release the clips and remove the RH instrument center trim panel.Use the General Equipment: Interior Trim Remover
2. On vehicles equipped with push button start disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

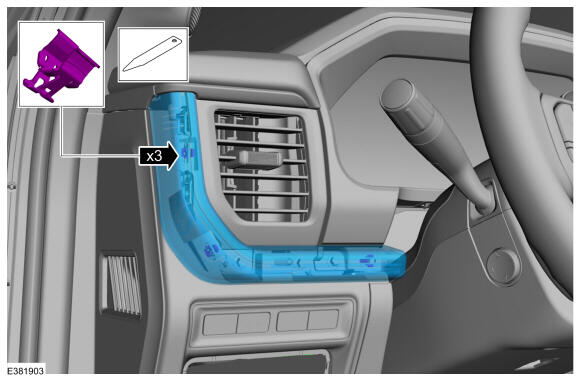

Release the clips and remove the LH instrument center trim panel.Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

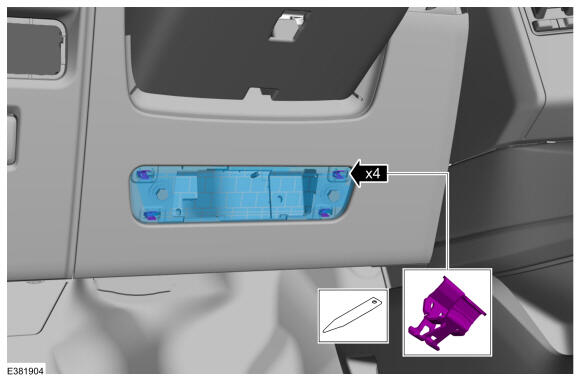

Release the clips and remove the trim panel.Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

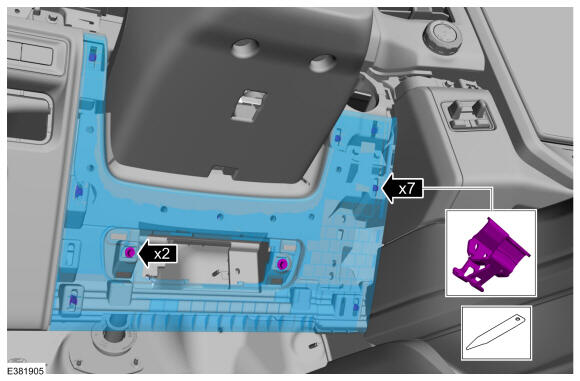

- Release the clips.Use the General Equipment: Interior Trim Remover
- Remove bolts and the lower steering column closeout panel.
  Torque

  : 2.5 Nm
Courtesy of FORD MOTOR COMPANY

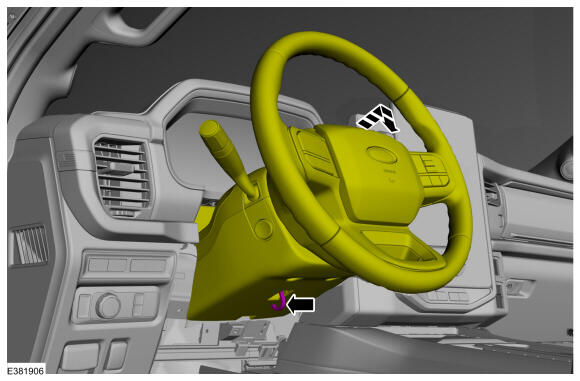

Fully extend and lower the steering column.

Courtesy of FORD MOTOR COMPANY
Release the tabs and disconnect the gap hider from the upper steering column shroud.Remove the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Remove the screws.
Torque

: 2.5 Nm

Courtesy of FORD MOTOR COMPANY
Release the clips and remove the instrument cluster panel bezel.

Courtesy of FORD MOTOR COMPANY
Remove the screws.
Torque

: 2.5 Nm

Courtesy of FORD MOTOR COMPANY

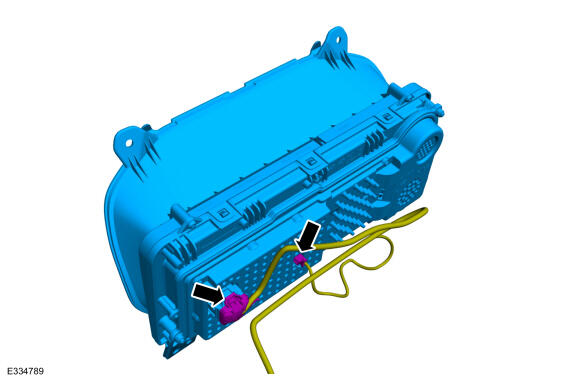

Disconnect the electrical connectors and remove the IPC.

Courtesy of FORD MOTOR COMPANY
