Instrument Panel Cluster (IPC) - Electric: Overview
The IPC uses gauges, warning and informational indicators, RTT indicators, warning messages and chimes to alert the driver of vehicle conditions and system operation. The message center provides menu selections to configure various vehicle features. For a complete list and description of the features the message center controls, refer to the Owner's Literature.
The IPC provides a single display screen that contains the message center, RTT indication and virtual gauge displays.
Informational indicators inform the driver of conditions that exist in the vehicle. Warning indicators provide information to the driver of conditions that could potentially cause personal injury or alter vehicle performance.
RTT indicators illuminate in the message center and replace traditional informational or warning indicators, using the same iconic representation. The message center uses a rotating RTT display area that can display multiple indicators, dedicated RTT displays and fixed locations for other RTT indicators and displays.

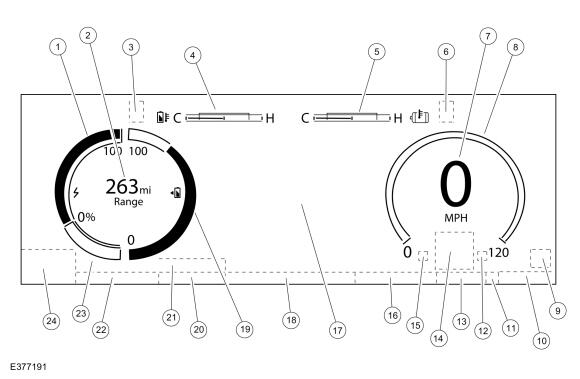

IPC, 12-Inch Display
| Item | Description |
|---|---|
| 1 | Power gauge |
| 2 | Vehicle range display |
| 3 | LH turn RTT indicator |
| 4 | High voltage battery temperature gauge |
| 5 | Electric motor temperture gauge |
| 6 | RH turn RTT indicator |
| 7 | Digital speedometer |
| 8 | Virtual speedometer |
| 9 | Hazard - stop safely now RTT indicator |
| 10 | Rotating Reconfigurable Telltales (RTTs) BLIS off Charging system fault (12-volt battery) Door ajar Engineering Test (ET) mode Hill descent control Hood (front compartment) ajar Low washer fluid level Powertrain malfunction (wrench) Power tailgate ajar Service interval (wrench) |
| 11 | Reconfigurable Telltales (RTTs) Airbag warning Ready to drive TPMS Vehicle plugged in |
| 12 | Overspeed warning RTT indicator (Gulf Cooperative Countries [GCC]) |
| 13 | Odometer display |
| 14 | Advanced driver assistance display (displays when driver assist is turned on) Adaptive cruise control follow mode Highway assist Lane centering aid Lane keep assist |
| 15 | Cruise control/adaptive cruise control RTT indicator |
| 16 | Compass display Lane centering aid RTT indicator Lane keep assist RTT indicator One-pedal drive control RTT indicator |
| 17 | Main menu display Information-on-demand display Driver assistance display (when information-on-demand is selected): Adaptive cruise control display Highway assist display Lane centering aid display Lane keeping system display |
