Head Up Display (HUD) - Overview
Overview
The HUD serves as a supplemental display for driver information and advanced driver assistance features. All HUD information and warnings are displayed through the windshield at the driver's eye level and can be turned on, off and set up to display individual features using the RH steering wheel switches.
NOTE:
Not all displays shown on the illustration will display at the same time.

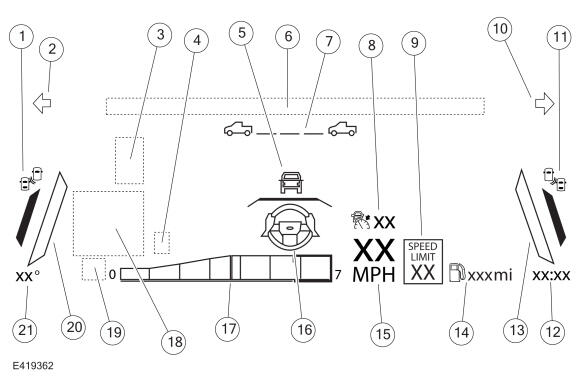

HUD
| Item | Description |
|---|---|
| 1 | BLIS indicator |
| 2 | LH turn indicator |
| 3 | HUD settings menu display Near navigation display |
| 4 | Transmission gear selection Four wheel drive indication (4H, 4L, 4A) |
| 5 | Lead vehicle detected indicator (part of the advanced driver assist system) Distance indication (part of the advanced driver assist system) Off road roll display (not shown) |
| 6 | Message display Phone call display Near navigation display Trailer brake gain display (towing layout only) |
| 7 | Adaptive cruise control gap setting display |
| 8 | Adaptive cruise control indicator and set speed display (shown) Cruise control indicator and set speed display (not shown) Trail control indicator and set speed display (not shown) |
| 9 | Speed sign indicator |
| 10 | RH turn indicator |
| 11 | BLIS indicator (shown) Pitch and roll (rock crawl) display (not shown) |
| 12 | Clock display |
| 13 | Lane keep assist indicator (shown) Lane centering aid indicator (BlueCruise) Off road pitch display (not shown) |
| 14 | DTE display |
| 15 | Digital speedometer display |
| 16 | Near navigation display Lane centering aid indicator (BlueCruise) |
| 17 | Tachometer display (towing or off road layout only) |
| 18 | Trail turn assist indicator Rear locking differential indicator |
| 19 | Far navigation display |
| 20 | Lane keep assist indicator Lane centering aid indicator (BlueCruise) |
| 21 | Outside air temperature display |
The following items displayed in the HUD can be adjusted using the setup menu.
- Content and layout
- Off road pitch and roll
The HUD setup menu allows the driver to adjust the following:
- HUD brightness
- HUD position
- vertical
- image rotation
For all details about the HUD functionality and the display setup, refer to the Owner's Literature.
The HUD displays the following information:
- Advanced driver assist system
- ACC and stop and go
- ACC gap setting
- Assisted lane change
- Lane keeping assist
- Lane centering aid (BlueCruise)
- Distance indication and alert
- Lead vehicle detected
- BLIS
- Clock
- Cruise control indication
- Digital speedometer
- DTE
- Navigation
- Off road pitch and roll, and 4WD (2H, 4H, 4L)
- Outside air temperature
- Phone call information
- Power shift display (Raptor Baja mode only)
- Speed sign
- Tachometer
- Trail control
- Trailer brake gain display
- Transmission gear selection indication
- LH and RH turn indication
