Head Up Display (HUD) Module Calibration

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Adjustment

NOTE: Some step prompts might look slightly different to what is shown on vehicle. For steering wheel switch functions, refer to the vehicle Owners Literature for more information.
NOTE: If it is necessary to cancel any calibration adjustment use the return button to cancel the current adjustment.
NOTE: Typical application shown.

Positional

  1. With brake pedal in the rest position, press the start button.

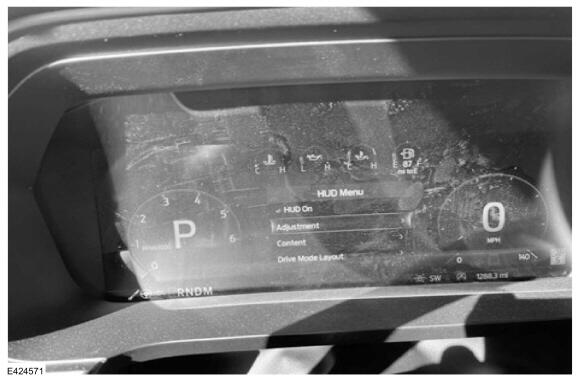

  2. Go to HUD menu in IPC while selecting down button in Steering wheel switch and ensure HUD is turned ON in IPC menu. For steering wheel switch functions, refer to the owners manual.
  3. Make sure the HUD is selected as ON. Then turn on adjustment.
    GFD824290Courtesy of FORD MOTOR COMPANY

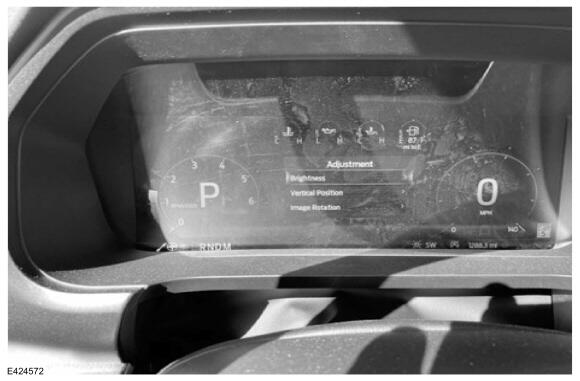

  4. Select the brightness adjustment mode.
    GFD824291Courtesy of FORD MOTOR COMPANY

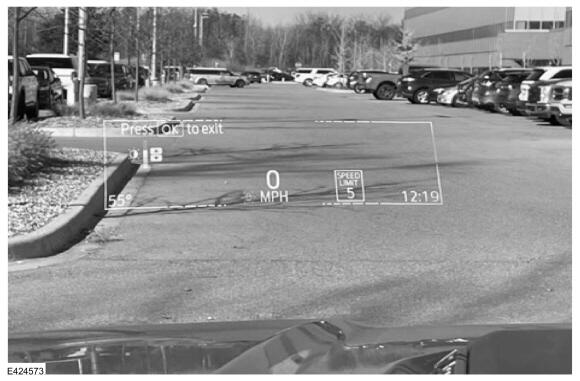

  5. Set the HUD brightness to 13 and press OK.
    GFD824292Courtesy of FORD MOTOR COMPANY

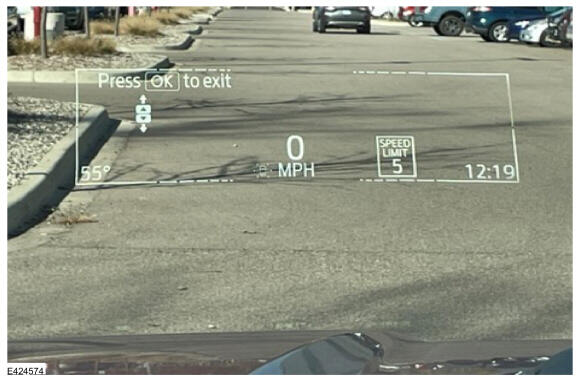

  6. Select vertical position and press OK. Move the vertical setting to the lowest position by repeatedly selecting the down position on the control switch.
    GFD824293Courtesy of FORD MOTOR COMPANY
  7. Vertically center the HUD by selecting the up position on the control switch 14 times.
  8. Press OK.
  9. Using the steering wheel switch, select image rotation and press OK.

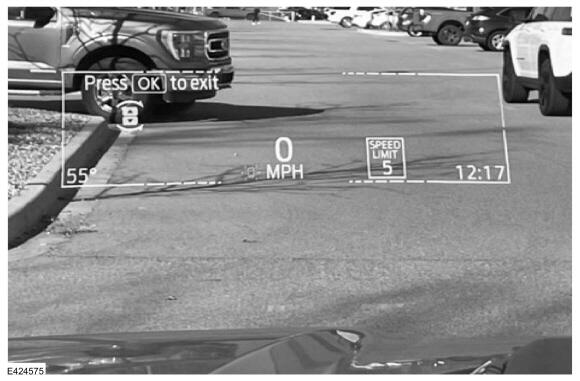

  10. Move the rotational setting to the counter clock-wise most position by repeatedly selecting the down position on the control switch. Then rotationally center the HUD by selecting the up position on the control switch six times and press OK.
    GFD824294Courtesy of FORD MOTOR COMPANY
  11. Press the OK button.
  12. Turn the vehicle off.

    Distortional calibration

  13. NOTE: Typical applications shown.

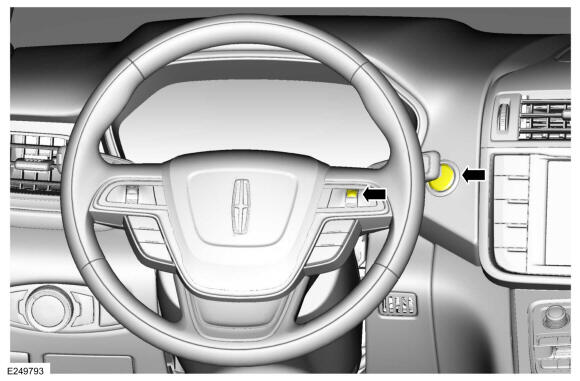

    With brake pedal in the rest position, press and hold the OK button, press the start button. and release the OK button when the text "ETM" appears in the upper LH corner of the HUD. For steering wheel switch functions, refer to the owners manual.

    GFD824295Courtesy of FORD MOTOR COMPANY

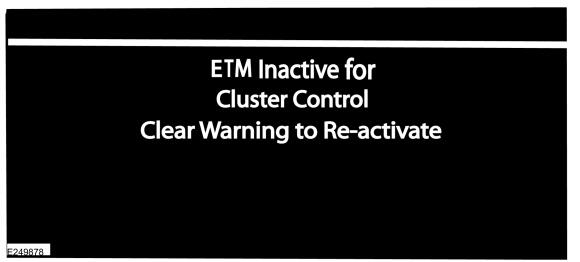

  14. If there are any warnings in the instrument cluster the ETM inactive screen will appear in the on windshield display.
    GFD824296Courtesy of FORD MOTOR COMPANY
  15. NOTE: If the OK button is pressed after all warnings are cleared the HUD will exit the ETM mode.

    Press the OK button to clear each warning.

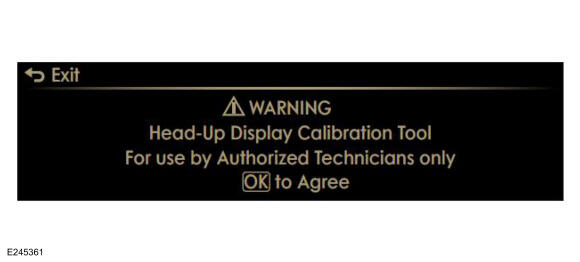

  16. The HUD will display entry screen to the engineering test mode. Press OK to enter the test mode or return to exit the test mode.
    GFD824297Courtesy of FORD MOTOR COMPANY

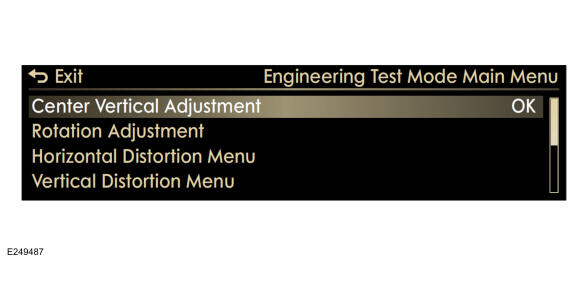

  17. The HUD will display the test mode main menu.
    GFD824298Courtesy of FORD MOTOR COMPANY

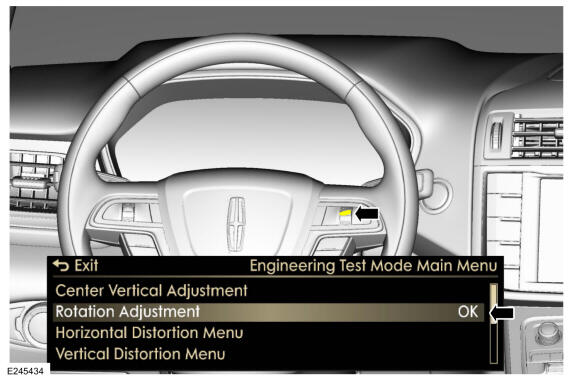

  18. Select the rotation adjustment menu item and press OK.
    GFD824299Courtesy of FORD MOTOR COMPANY

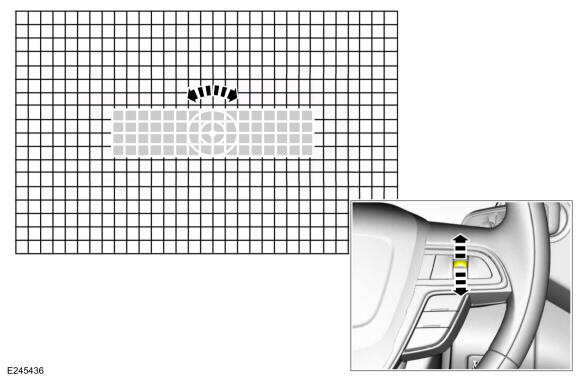

  19. Adjust the alignment grid while viewing the grid through the HUD eye box until the grid is level and press OK.
    GFD824300Courtesy of FORD MOTOR COMPANY

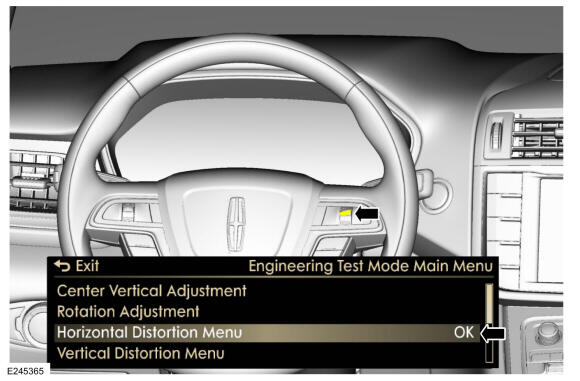

  20. Select horizontal distortion adjustment menu and select OK.
    GFD824301Courtesy of FORD MOTOR COMPANY

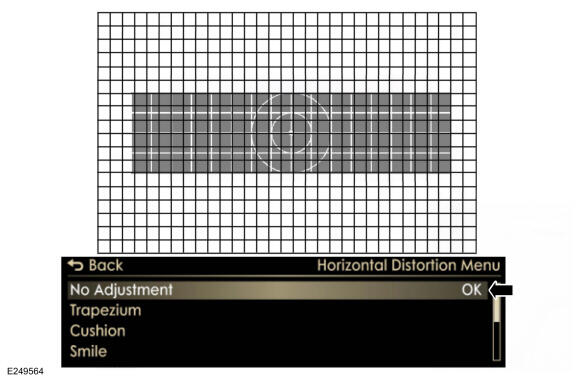

  21. NOTE: Select trapezium and view grid.

    Determine if horizontal distortion is present.

    • If no horizontal distortion is present select OK and go to step 44.

    • If horizontal distortion is present, go to step 40.

    GFD824302Courtesy of FORD MOTOR COMPANY
    1. Horizontal
    2. Selector lever UP
    3. Selector lever DOWN
    4. Trapezium
    5. Cushion
    6. Smile
    7. Shear
    8. Asymmetrical Shear Horizontal Right
    9. Asymmetrical Cushion Horizontal Right
    10. Asymmetrical Shear Horizontal Left
    11. Asymmetrical Cushion Horizontal Left

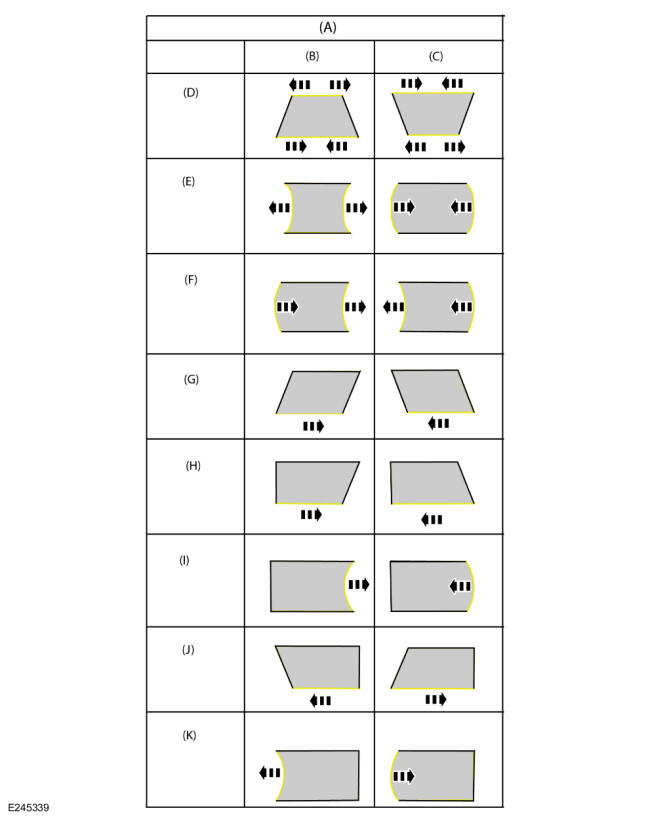

    Identify the category (D through K) for the most severe distortion present in the displayed image.

    GFD824303Courtesy of FORD MOTOR COMPANY

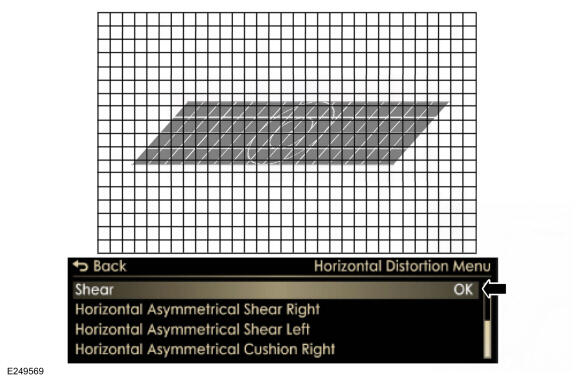

  23. NOTE: Steps for shear horizontal distortion shown, all other horizontal distortion steps are similar.

    Select shear from the menu and press OK.

    GFD824304Courtesy of FORD MOTOR COMPANY

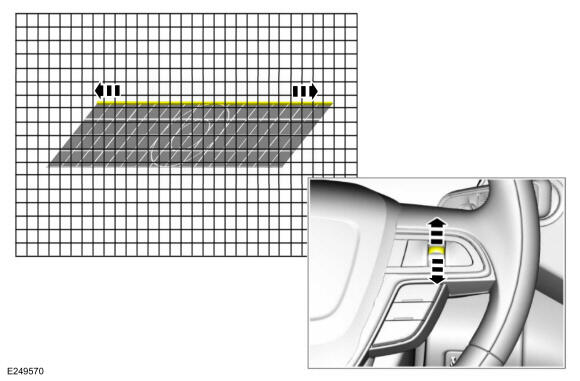

  24. Using the up and down button remove the horizontal distortion from the image then press OK to save adjustment.
    GFD824305Courtesy of FORD MOTOR COMPANY
  25. Press return to exit to the previous menu.

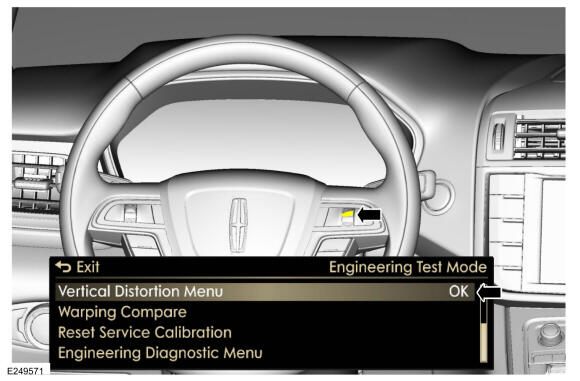

  26. Select vertical distortion menu and press OK.
    GFD824306Courtesy of FORD MOTOR COMPANY

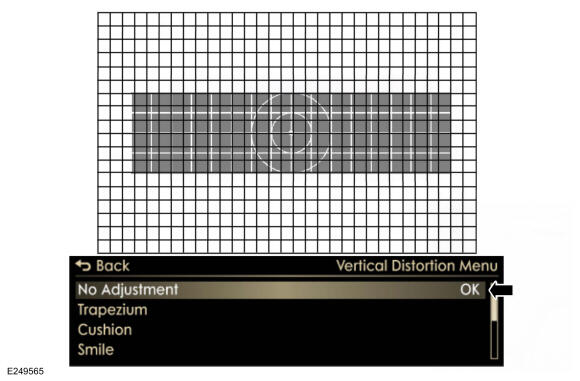

  27. NOTE: Select trapezium and view grid.

    Determine if vertical distortion is present.

    • If no vertical distortion is present, go to step 50.

    • If vertical distortion is present, go to step 46.

    GFD824307Courtesy of FORD MOTOR COMPANY
    1. Vertical
    2. Selector lever UP
    3. Selector lever DOWN
    4. Trapezium
    5. Cushion
    6. Smile
    7. Shear

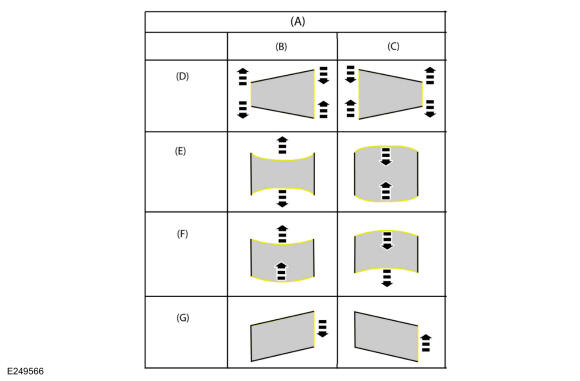

    Identify the category of the most severe distortion present in the displayed image.

    GFD824308Courtesy of FORD MOTOR COMPANY

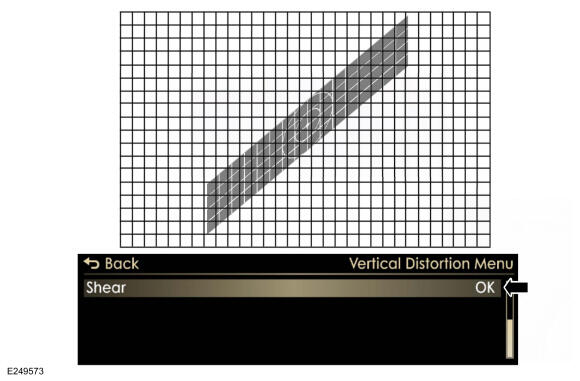

  29. NOTE: Steps for shear vertical distortion shown, all other vertical distortion steps are similar.

    Select shear form the menu and press OK.

    GFD824309Courtesy of FORD MOTOR COMPANY

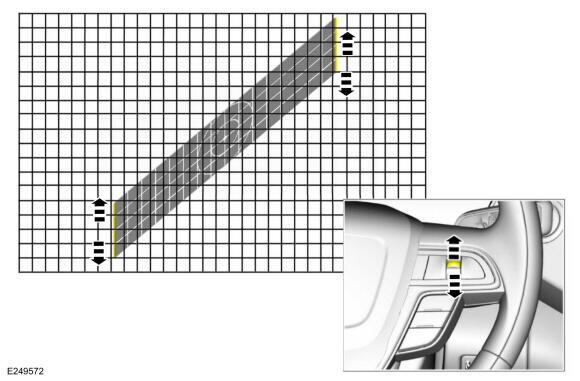

  30. Using the up and down button remove the vertical distortion from the image then press OK.
    GFD824310Courtesy of FORD MOTOR COMPANY
  31. Press return.
  32. Carry out the warping compare procedure.

    Warping compare

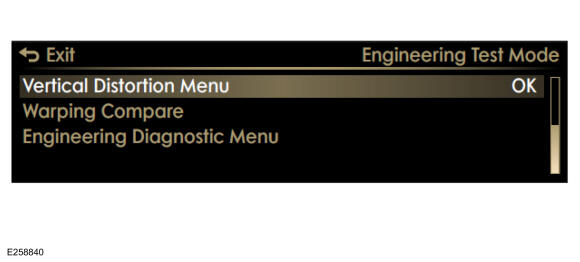

  33. Select and press the back button item until the main menu is visible.
    GFD824311Courtesy of FORD MOTOR COMPANY

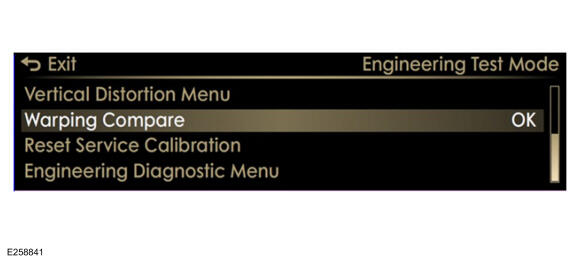

  34. Select warping compare and press OK.
    GFD824312Courtesy of FORD MOTOR COMPANY

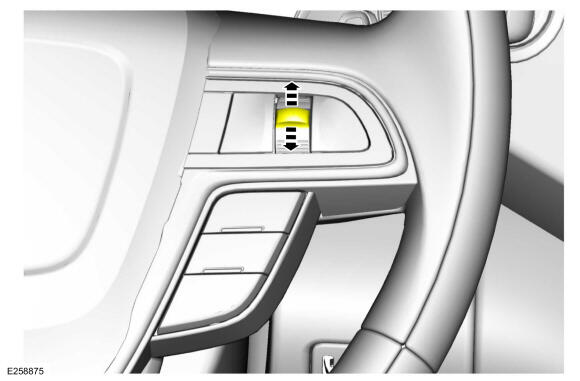

  35. Using the up and down button cycle through the available displays.
    GFD824313Courtesy of FORD MOTOR COMPANY

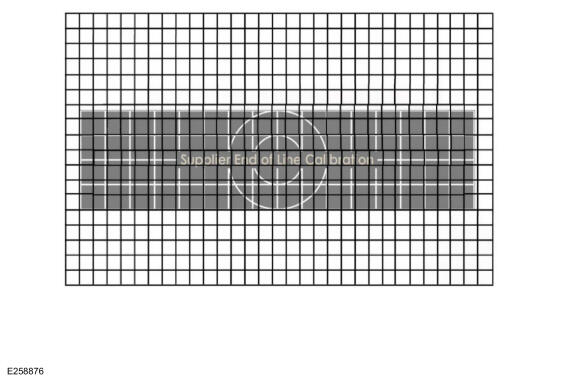

  36. View and evaluate the supplier end of line calibration for warpage.
    GFD824314Courtesy of FORD MOTOR COMPANY

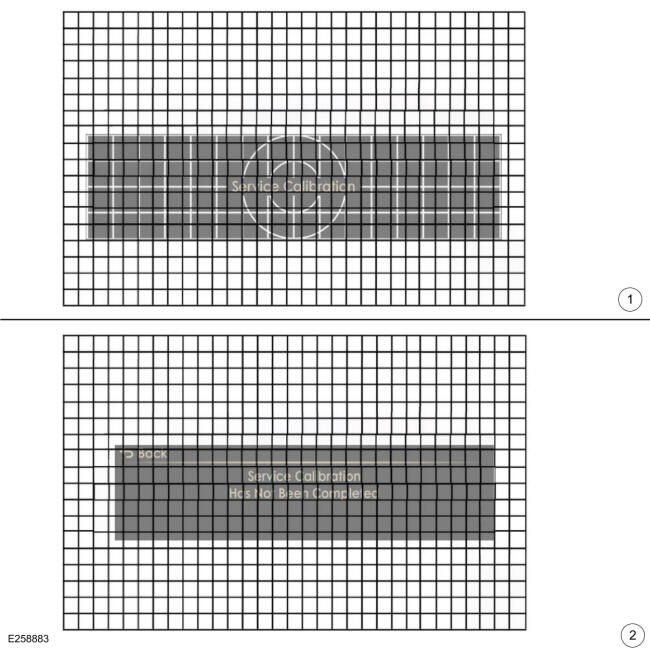

  37. View and evaluate the calibration display. Carry out the actions below based on the display observed.

    1. View and evaluate the service calibration for warpage.
    2. Return to distortional calibration and complete service calibration.

    GFD824315Courtesy of FORD MOTOR COMPANY

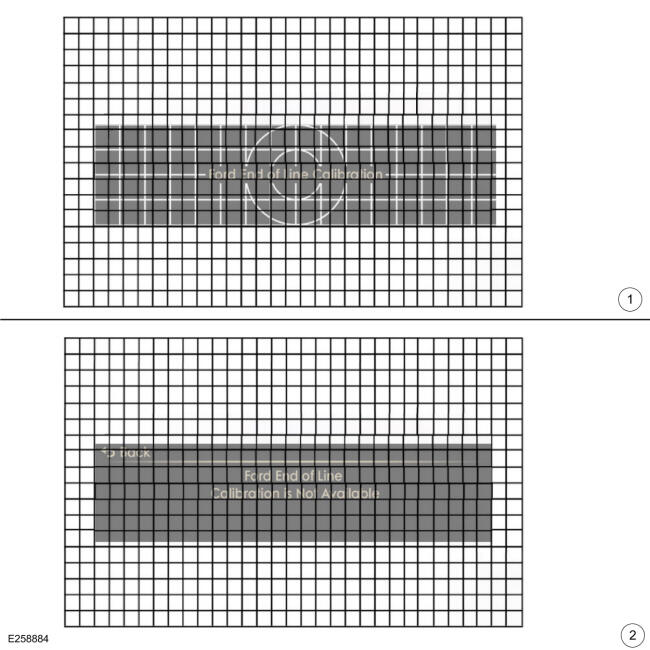

  38. View and evaluate the calibration display. Carry out the actions below based on the display observed.

    1. View and evaluate the Ford end of line calibration for warpage.
    2. Disregard as an option for warpage improvement.

    GFD824316Courtesy of FORD MOTOR COMPANY
  39. Review the grid in the HUD image and compare it to the grid on the calibration target, switching between the different warping corrections. Use this method to confirm the service warping distortion correction improves the image quality over the end of line warping. Did the service calibration correct the image distortion?

    1. Yes: Exit the ETM mode and turn off the vehicle.
    2. No: Carry out the service calibration reset procedure and start the distortion correction all over.

    Service calibration reset

    NOTE: This procedure is to be used only when the positional and distortional changes are to be erased and the HUD returned to the original factory settings.
  40. Press and hold the OK button, start the vehicle and release the HUD button when the text "ETM" appears in the upper LH corner of the HUD.
    GFD824295Courtesy of FORD MOTOR COMPANY
  41. If there are any warnings in the instrument cluster the ETM inactive screen will appear in the on windshield display.
    GFD824296Courtesy of FORD MOTOR COMPANY
  42. NOTE: If the OK button is pressed after all warnings are cleared the HUD will exit the ETM mode.

    Press the OK button to clear each warning.

  43. The message center in the instrument cluster will display entry screen to the engineering test mode. Press OK to enter the test mode or return to exit the test mode.
    GFD824297Courtesy of FORD MOTOR COMPANY
  44. The message center will display the test mode main menu.
    GFD824298Courtesy of FORD MOTOR COMPANY

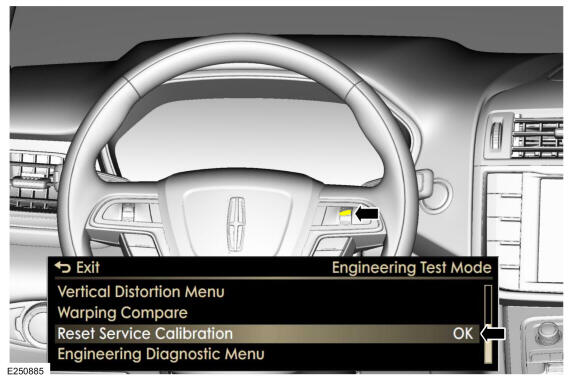

  45. Select the Reset Service Calibration menu item and press OK.
    GFD824317Courtesy of FORD MOTOR COMPANY

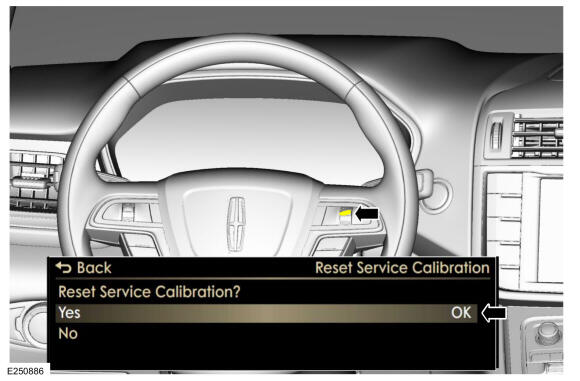

    • To reset the service calibration to the factory settings select YES and press OK.

    • To retain the current calibration settings select NO and press OK.

    GFD824318Courtesy of FORD MOTOR COMPANY
  47. Press return.
  48. Turn the vehicle off.
