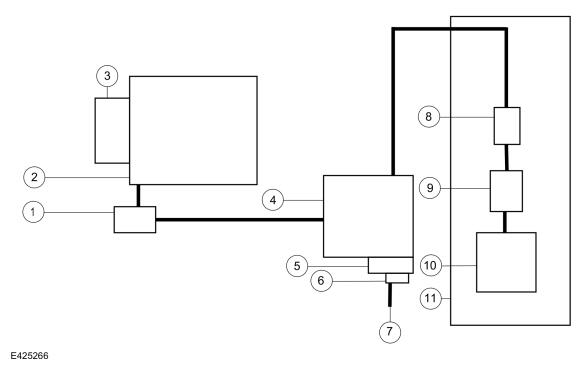

System Diagram
WARNING: This page is about a different car, the 2024 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
EVAP purge valve |
| 2 |
Intake manifold |
| 3 |
Throttle body |
| 4 |
EVAP canister |
| 5 |
EVAP canister filter |
| 6 |
EVAP canister vent solenoid |
| 7 |
Fresh air hose |
| 8 |
EVAP blocking valve (VBV) |
| 9 |
Fuel tank pressure (FTP) sensor |
| 10 |
Fuel pump and sender unit |
| 11 |
Fuel tank |
