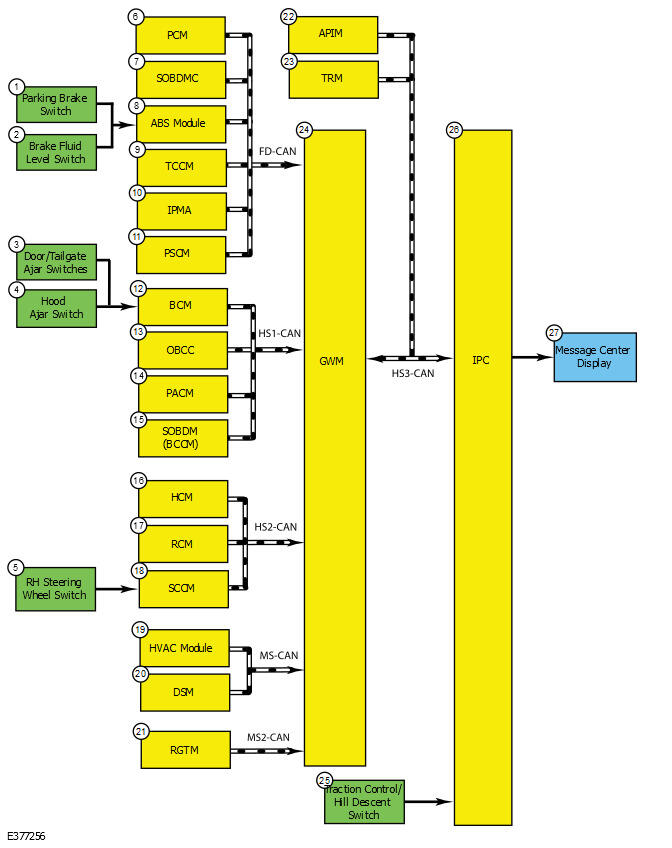

System Diagram

Message Center

GFD823241Courtesy of FORD MOTOR COMPANY
Item Description
1 Parking brake switch
2 Brake fluid level switch
3 Door/tailgate ajar switches
4 Hood ajar switch
5 RH steering wheel switch
6 PCM
7 SOBDMC
8 ABS module
9 TCCM
10 IPMA
11 PSCM
12 BCM
13 OBCC
14 PACM
15 SOBDM (Battery Charger Control Module [BCCM])
16 HCM
17 RCM
18 SCCM
19 HVAC module
20 DSM
21 RGTM
22 APIM
23 TRM
24 GWM
25 Traction control/hill descent switch
26 IPC
27 Message center display

Network Message Chart - Displays

The data in each display is shown when the IPC receives messaged inputs from other modules on the CAN, unless the display data is controlled exclusively by the IPC. The IPC communcates on the HS-CAN3. If the originating module communicates on a network other than the HS-CAN3, the messaged signals are sent to the GWM first, then to the IPC.

Display Network Message Originating Module Originating CAN Receiving Module
Adaptive cruise control Cruise control set speed display PCM FD-CAN IPC
Adaptive cruise control gap distance display IPMA
Battery Charge Range Vehicle electric range display SOBDMC FD-CAN IPC
Compass Compass direction APIM HS-CAN3 IPC
Digital speedometer Vehicle speed PCM FD-CAN IPC
Forward collision alert Forward collision warning indicator request IPMA FD-CAN IPC
Lane keeping system Hands off display
Lane keeping system status display		 IPMA FD-CAN IPC
Lane centering system Traffic jam assist status
Traffic jam assist message request
Traffic jam assist warning request		 IPMA FD-CAN IPC
Odometer Odometer count PCM FD-CAN IPC
Outside air temperature Ambient air temperature filtered PCM FD-CAN HVAC module
Outside air temperature status HVAC module MS-CAN IPC
Speed sign recognition Traffic sign recognition status request IPMA FD-CAN IPC
PRND Transmission gear display mode
Transmission gear display		 SOBDMC FD-CAN IPC
Vehicle speed PCM FD-CAN
Ignition status
Power shed level request
Transport mode		 BCM HS-CAN1

Network Message Chart - Information-On-Demand Displays

The information-on-demand displays are selected using the menu screens in the message center. The data in each display is shown when the IPC receives messaged inputs from other modules on the CAN, unless the display data is controlled exclusively by the IPC. The IPC communcates on the HS-CAN3. If the originating module communicates on a network other than the HS-CAN3, the messaged signals are sent to the GWM first, then to the IPC.

Information Display Network Message Originating Module Originating CAN Receiving Module
Brake coach Brake event data
Regenerative braking event level data		 SOBDMC FD-CAN IPC
Navigation Navigation status APIM HS-CAN3 IPC
TPMS Tire pressure system status
Tire pressure placard data		 BCM HS-CAN1 IPC
Trailer lighting Parklamp status BCM HS-CAN1 IPC
Trailer lamp connected
Trailer lamp out
Trailer turn indicator status
Trailer battery charge status		 TRM HS-CAN3 IPC
Trailer information Trailer setup
Trailer reverse status
Trailer reverse message request		 IPMA FD-CAN IPC
BLIS trailer tow left status
BLIS trailer tow right status		 IPMA FD-CAN IPC
Vehicle speed PCM FD-CAN IPC
Gear lever position SOBDMC FD-CAN IPC
Ignition status BCM HS-CAN1 IPC

Network Message Chart - Warning Messages

A warning message is displayed in the message center when the IPC receives messaged inputs from other modules on the CAN, unless the message is for a function exclusive to the IPC. The IPC communcates on the HS-CAN3. If the originating module communicates on a network other than the HS-CAN3, the messaged signals are sent to the GWM first, then to the IPC.

IPC Message Network Message Originating Module Originating CAN Receiving Module
4WD fault and shift instructions 4WD high/low status TCCM FD-CAN IPC
Adaptive cruise control Adaptive cruise control message center request
Adaptive cruise control warning display		 IPMA FD-CAN IPC
Adaptive headlamps Adaptive headlamp fault HCM HS-CAN2 IPC
Auto hold Auto hold message request ABS module FD-CAN IPC
BLIS / CTA Side obstacle sensor status-left
Side obstacle sensor status-right
Cross traffic left sensor status
Cross traffic right sensor status		 IPMA FD-CAN IPC
Brake system/Parking brake engaged/Brake fluid low Brake (red) warning indicator request
Parking brake (red) indicator request		 ABS module FD-CAN IPC
Brake warning indicator request BCM HS-CAN1 IPC
Brake applied - power reduced Brake pedal applied message request PCM FD-CAN IPC
Change 4WD lubrication 4WD high/low status TCCM FD-CAN IPC
Charge port door ajar Charge port door ajar status SOBDM HS-CAN1 IPC
Charge station fault Battery charger service required request OBCC HS-CAN1 IPC
Door/hood/tailgate ajar Driver door ajar status
Passenger door ajar status
Right rear door ajar status
Left rear door ajar status
Hood ajar status
Tailgate ajar status		 BCM HS-CAN1 IPC
Electric parking brake Brake lamp request
Parking brake message request
Park brake (yellow) warning indicator request		 ABS module FD-CAN IPC
Electronic locking differential (eLocker) Rear locking differential service required
Rear differential lock message request		 TCCM FD-CAN IPC
Factory/transport mode Factory mode
Transport mode		 BCM HS-CAN1 IPC
Front camera Camera status display IPMA FD-CAN IPC
Lane centering aid system Traffic jam assist message request IPMA FD-CAN IPC
Lane keeping system Lane keeping system status
Camera status display		 IPMA FD-CAN IPC
Limited battery performance Battery performance message display SOBDMC FD-CAN IPC
Load shed (12-volt battery) Power shed level request BCM HS-CAN1 IPC
Memory seat Memory command DSM MS-CAN IPC
Neutral tow 4WD high/low status TCCM FD-CAN IPC
Off road mode 4WD high/low status TCCM FD-CAN IPC
One-pedal drive control One pedal drive indicator display PCM FD-CAN IPC
Parking aid Parking aid fault status IPMA FD-CAN IPC
Passive key and immobilizer system Immobilizer message display BCM HS-CAN1 IPC
Power pack status PCM FD-CAN
Pedestrian alert Pedestrian alert fault PACM HS-CAN1 IPC
Perimeter alarm Perimeter alarm chime request BCM HS-CAN1 IPC
Power child door locks Lock system message request BCM HS-CAN1 IPC
Power running boards Power step message request DSM MS-CAN IPC
Power steering EPAS failure PSCM FD-CAN IPC
Powertrain cooling Powertrain cooling message request PCM FD-CAN IPC
Pre-collision assist system Forward collision warning message request IPMA FD-CAN IPC
Ready to drive Ready to drive display SOBDMC FD-CAN IPC
Remote start Remote start status BCM HS-CAN1 IPC
Reverse brake assist Reverse brake assist alert display
Reverse brake assist message request		 IPMA FD-CAN IPC
Rear seatbelt monitor Driver rear seatbelt buckle status
Passenger rear seatbelt buckle status
Rear center seatbelt buckle status		 RCM HS-CAN2 IPC
Seatbelt (Buckle up) Driver rear seatbelt buckle status RCM HS-CAN2 IPC
Side wind compensation Stability-traction control mode message request ABS module FD-CAN IPC
Sleeper seat (max recline feature) Sleeper seat position message request DSM MS-CAN IPC
Speed sign recognition Traffic sign recognition message request IPMA FD-CAN IPC
Stability-traction control on/off Stability-traction control on/off message request ABS module FD-CAN IPC
Service AdvanceTrac Stability-traction control chime request ABS module FD-CAN IPC
Starting system Starting system message request PCM FD-CAN IPC
Steering wheel lock Steering wheel lock message request BCM HS-CAN1 IPC
Tailgate step Power tailgate step message request RGTM MS-CAN 2 IPC
TPMS (fault and tire training status) Tire pressure system status BCM HS-CAN1 IPC
Trailer information (trailer lighting, trailer brake, trailer sway) Trailer sway event in progress ABS module FD-CAN IPC
Trailer lamp connected
Trailer lamp out
Trailer turn indicator status
Trailer battery charge
Trailer brake control status		 TRM HS-CAN3 IPC
Vehicle start inhibit (Over the Air [OTA] updates) Vehicle start inhibit message display GWM HS-CAN3 IPC
Work surface (stow before driving) Work surface latch status BCM HS-CAN1 IPC
