System Diagram - Gauges

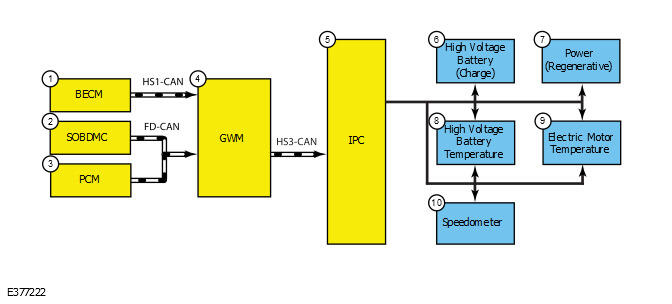

Virtual Gauges
| Item | Description |
|---|---|
| 1 | BECM |
| 2 | SOBDMC |
| 3 | PCM |
| 4 | GWM |
| 5 | IPC |
| 6 | High voltage battery (charge) |
| 7 | Power (regenerative) |
| 8 | High voltage battery temperature |
| 9 | Electric motor temperature |
| 10 | Speedometer |
Network Message Chart - Gauges
The data on each gauge is displayed when the IPC receives messaged inputs from other modules on the CAN. The IPC communcates on the HS-CAN3. If the originating module communicates on a network other than the HS-CAN3, the messaged signals will be sent to the GWM first, then to the IPC.
| Gauge | Network Message | Originating Module | Originating CAN | Receiving Module |
|---|---|---|---|---|
| High voltage battery (Charge) | Battery state of charge display | BECM | HS-CAN1 | IPC |
| High voltage battery temperature | High voltage battery temperature status | BECM | HS-CAN1 | IPC |
| Electric motor temperature | Engine coolant temperature data | PCM | FD-CAN | IPC |
| Engine overheat indication request | ||||
| Power (regenerative) | Power regeneration average display | SOBDMC | FD-CAN | IPC |
| Speedometer | Vehicle speed | PCM | FD-CAN | IPC |
