Turbocharger LH: Installation

Install a new turbocharger end coolant supply tube O-ring seal. Lubricate the new O-ring seal with clean engine coolant. Refer to Specifications .
NOTE: A new turbocharger oil supply filter must be installed. Failure to follow these instructions can result in turbocharger damage.

Install the new turbocharger oil supply tube O-ring seals and the new turbocharger oil supply tube oil filter. Lubricate the new turbocharger oil supply tube O-ring seals with clean engine oil. Refer to Specifications .

Courtesy of FORD MOTOR COMPANY
NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.
- Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to turbocharger O-ring bore and the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. Do not use a metal brush, damage to sealing area will result in leaks. Install new components if needed.

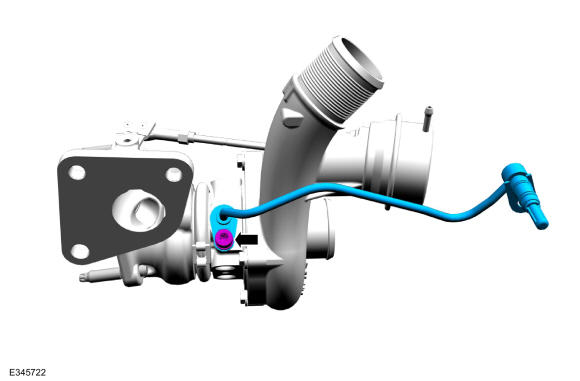

1. Connect the turbocharger oil supply tube to the turbocharger, then install and tighten the turbocharger oil supply tube bolt.
  Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
If removed, install and tighten the turbocharger studs
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
- NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.

  Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to engine O-ring bores for both the oil and coolant tubes. Inspect the area for deep scratches and gouges. Do not use a metal brush, damage to sealing area will result in leaks. Install new components if needed.
1. Place the turbocharger on the front crossmember.
2. NOTE: Insure that the turbocharger oil supply tube and oil filter are properly installed and fully seated into the engine front cover.

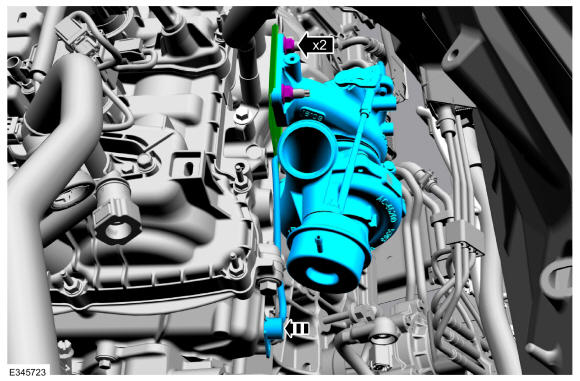

  Install the turbocharger from the top, with the new gasket and the nuts. Install the turbocharger oil supply tube to the engine while installing the turbocharger.

  Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
Courtesy of FORD MOTOR COMPANY

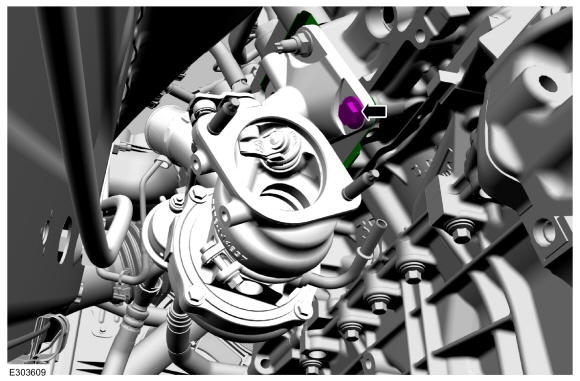

Install and tighten the turbocharger bolt.
Torque: 44 lb.ft (60 Nm)

Courtesy of FORD MOTOR COMPANY

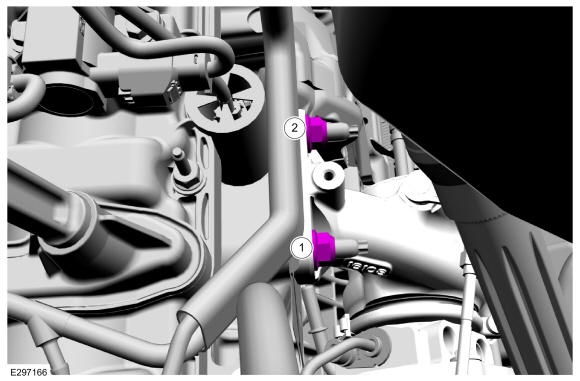

1. Tighten the turbocharger nut.
  Torque: 27 lb.ft (37 Nm)
2. Tighten the turbocharger nut.
  Torque: 44 lb.ft (60 Nm)
Courtesy of FORD MOTOR COMPANY
Re-tighten the turbocharger bolt.
Torque: 44 lb.ft (60 Nm)

Courtesy of FORD MOTOR COMPANY
1. Re-tighten the turbocharger nut
  Torque: 27 lb.ft (37 Nm)
2. Re-tighten the turbocharger nuts.
  Torque: 44 lb.ft (60 Nm)
Fig 1: Turbocharger Nuts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Lubricate the rubber gasket and tube with clean engine coolant. Refer to Specifications .

Courtesy of FORD MOTOR COMPANY
Install a new turbocharger coolant supply tube O-ring seals. Lubricate the new O-ring seal with clean engine coolant. Refer to Specifications .

Courtesy of FORD MOTOR COMPANY
NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.
- Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to engine O-ring bore and the turbocharger tube to turbocharger O-ring bore. Inspect the area for deep scratches and gouges. Install new components if needed.
1. Install the turbocharger coolant supply tube, then install and tighten the bolts.
  Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
Install the starter motor. Refer to Starter Motor .

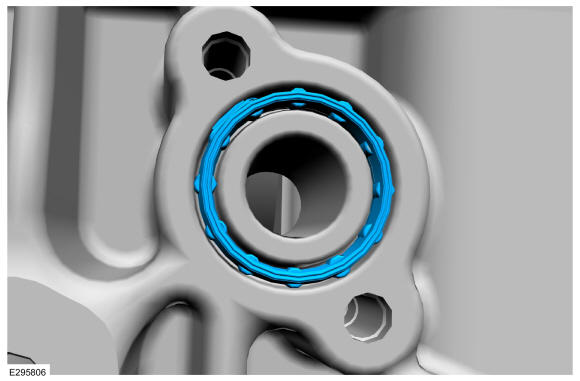

Install the new turbocharger oil return tube-to-engine block gasket.

Courtesy of FORD MOTOR COMPANY
Install a new turbocharger oil return tube O-ring seal, then lubricate with clean engine oil. Refer to Specifications .

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use a metal brush, damage to sealing area will result in leaks.
- Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges.

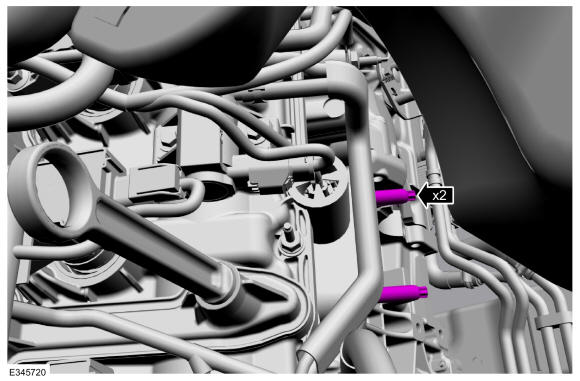

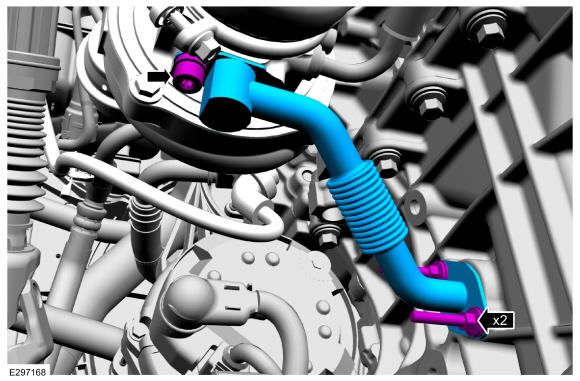

1. Install the turbocharger oil return tube, then install and tighten the turbocharger oil return tube bolts.
  Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
Install the wire harness bracket, then install and tighten the bolt.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

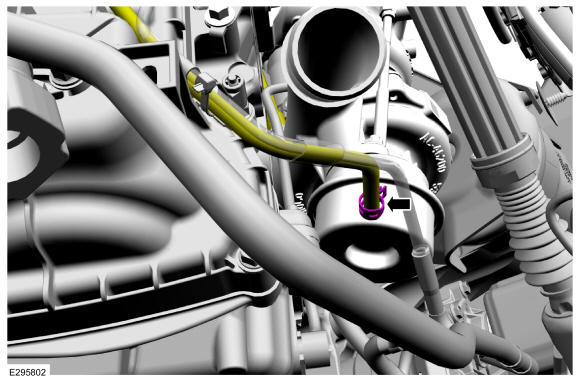

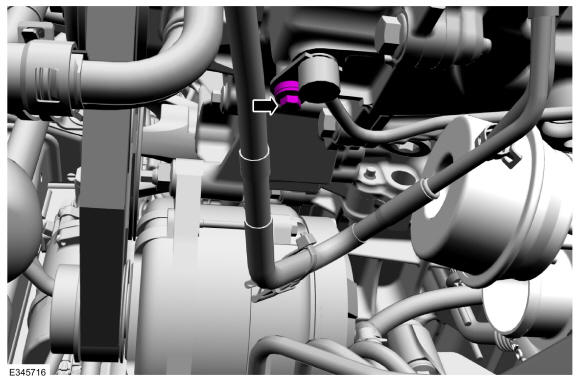

Connect the turbocharger wastegate control hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

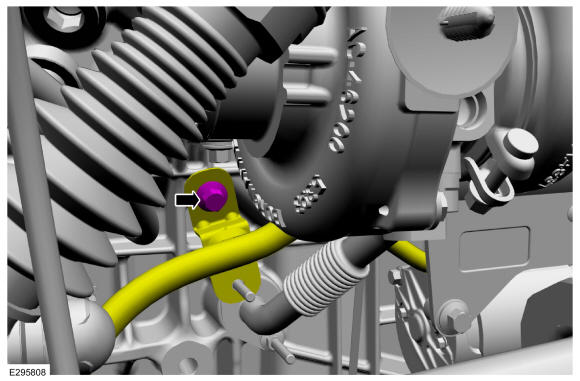

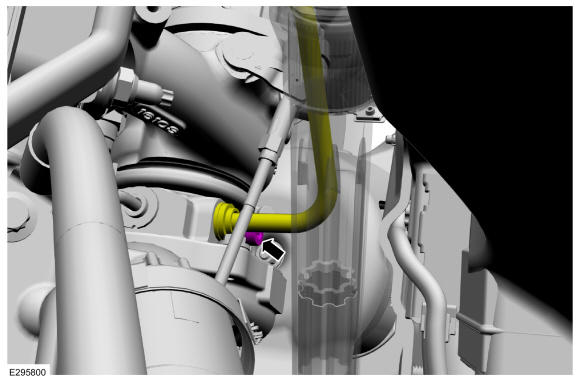

Install and tighten the oil supply tube bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install a new turbocharger coolant return tube O-ring seal. Lubricate the new O-ring seal with clean engine coolant. Refer to Specifications .

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use a metal brush, damage to sealing area will result in leaks.
- Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges. Install new components if needed.
  Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

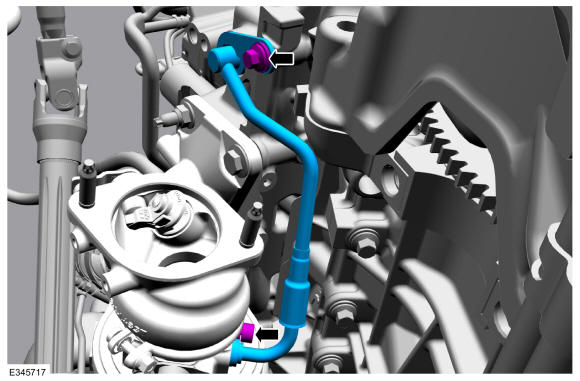

1. Connect the turbocharger coolant return tube to the turbocharger, then install and tighten the bolt.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

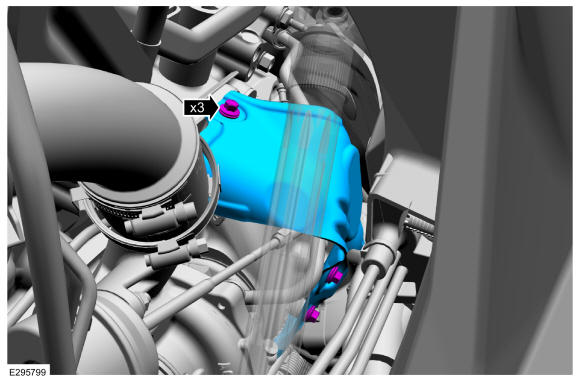

Install the turbocharger heat shield, then install and tighten the heat shield bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

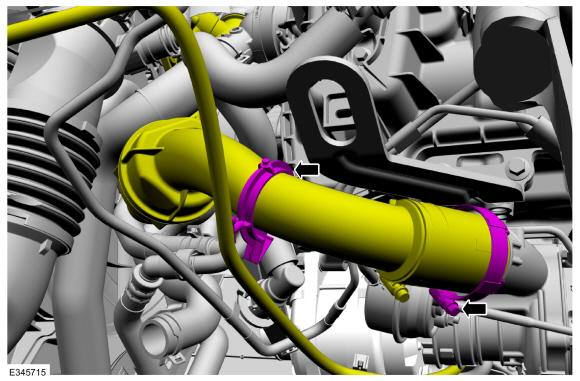

Install the left charge air cooler intake pipe to the turbocharger, then tighten the clamp. Attach the wire harness retainer.
Torque: 44 lb.in (5.0 Nm)

Courtesy of FORD MOTOR COMPANY

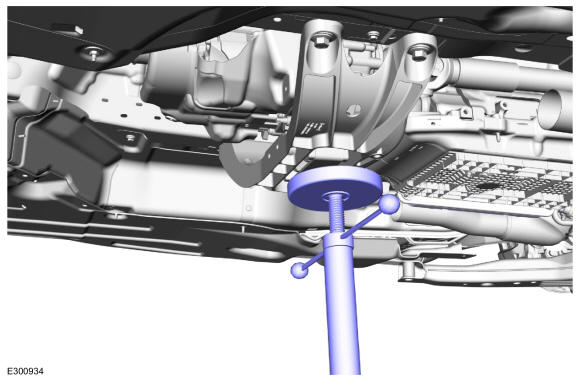

Position an adjustable jack stand under the transmission crossmember.

Courtesy of FORD MOTOR COMPANY

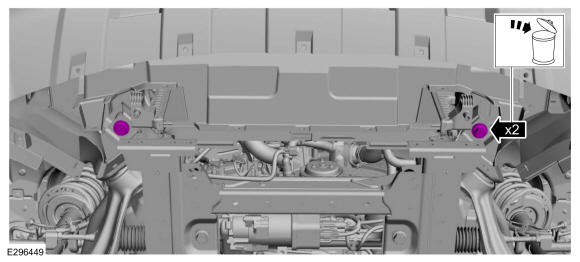

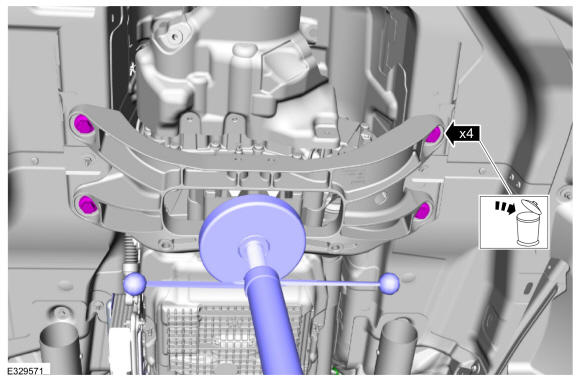

Remove and discard the transmission crossmember bolts.

Courtesy of FORD MOTOR COMPANY

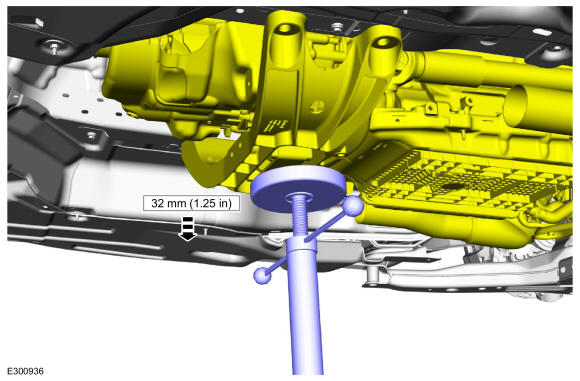

Lower the jack stand 32 mm (1.25 in).

Courtesy of FORD MOTOR COMPANY

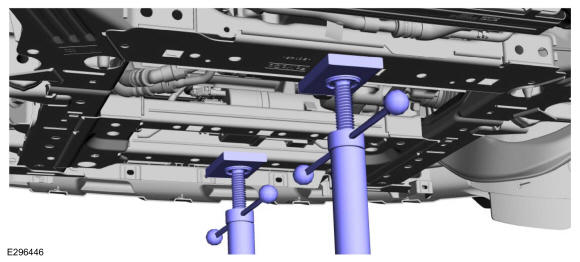

Support the front and rear of the subframe with adjustable jack stands.

Courtesy of FORD MOTOR COMPANY

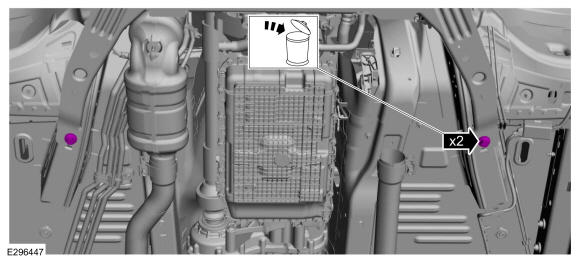

- Remove the rear subframe bolts.
- Discard the bolts.
Courtesy of FORD MOTOR COMPANY
- Remove the middle subframe bolts.
- Discard the bolts.
Courtesy of FORD MOTOR COMPANY

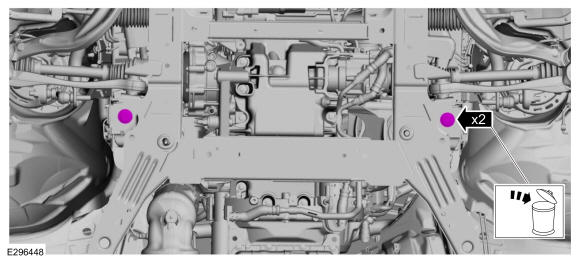

- Remove the front subframe bolts.
- Discard the bolts.
Courtesy of FORD MOTOR COMPANY

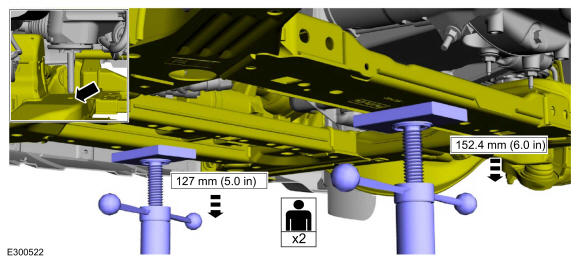

With the aid of an assistant, lower the front jack stand 127 mm (5.0 in) and the rear jack stand 152.4 mm (6.0 in) evenly or until engine mount stud clears the subframe.

Courtesy of FORD MOTOR COMPANY
Install the left engine mount. Refer to Engine Mount LH .
Fill the cooling system. Refer to Engine Cooling System Draining, Vacuum Filling and Bleeding .
Check and top off the engine oil level as needed. Refer to Specifications .
