Instrument Panel Cluster (IPC): Removal

All vehicles

1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

   Using a diagnostic scan tool, begin the PMI process for the IPC following the on-screen instructions. Record the odometer value from the original IPC. If the odometer value cannot be obtained from the IPC (display failure), perform the diagnostic routine. If the value cannot be obtained after the diagnostic routine, the customer should supply the approximate odometer value.

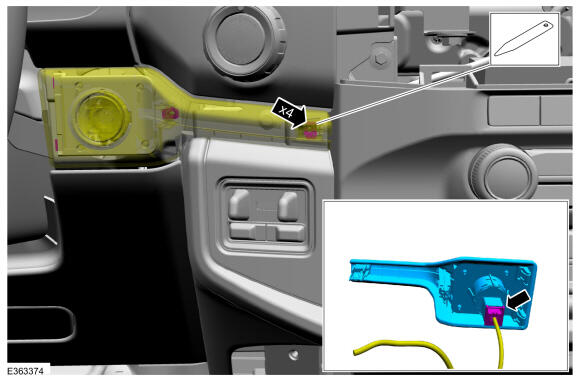

2. Release the clips, position the start/stop switch bezel, disconnect the electrical and remove the start/stop switch bezel.Remove the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

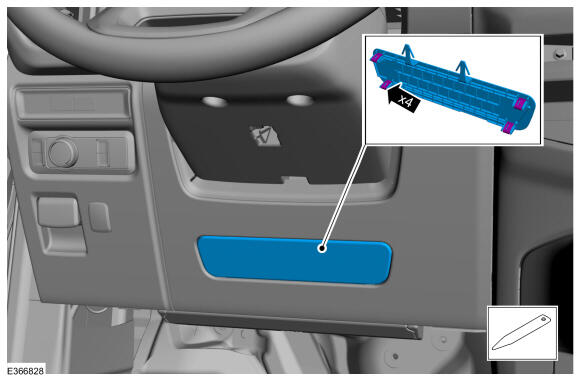

3. Release the clips and remove the trim panel.Remove the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

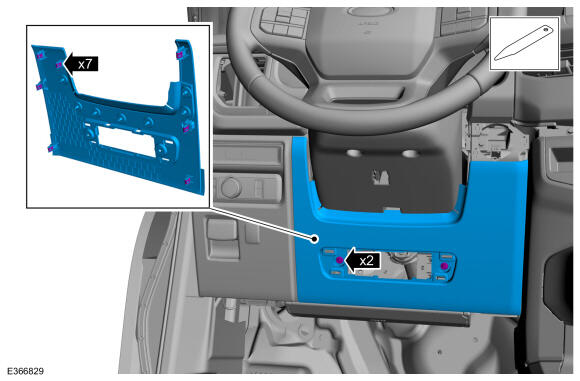

4. Remove the screws, release the clips and remove the steering column opening trim panel.Remove the General Equipment: Interior Trim Remover

   Torque: 2.5 Nm

   Courtesy of FORD MOTOR COMPANY

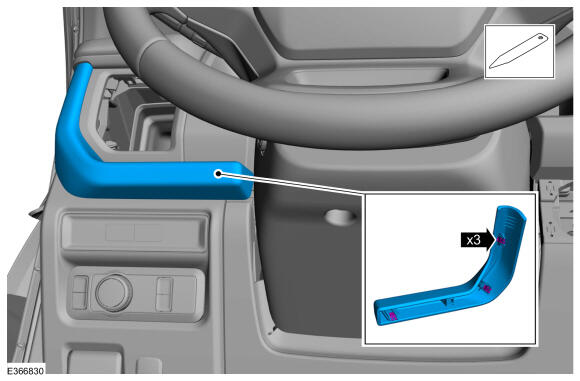

5. Release the clips and remove the trim panel.Remove the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

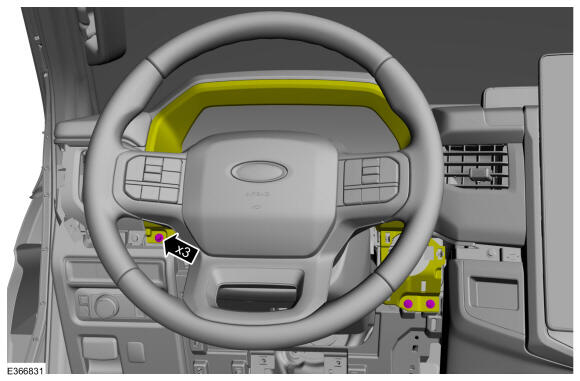

6. Remove the bolts.

   Torque: 2.5 Nm

   Courtesy of FORD MOTOR COMPANY

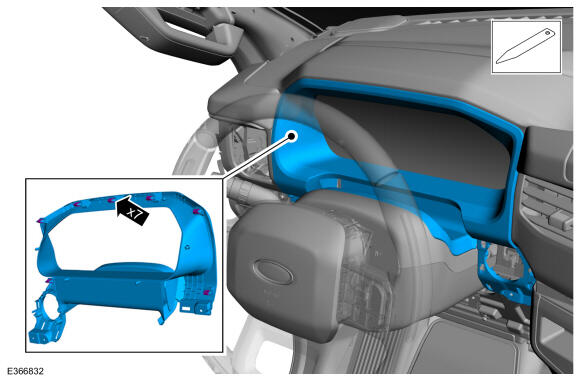

7. Release the clips and remove IPC trim panel.Remove the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

   High Series Cluster

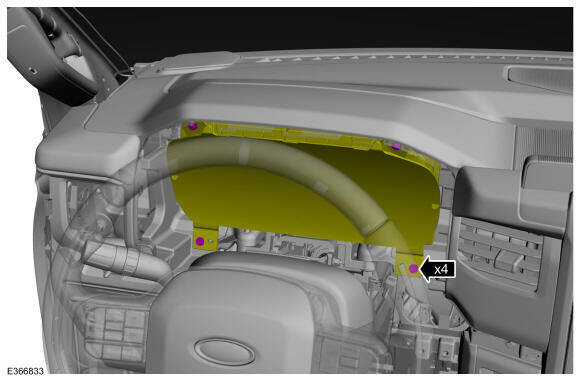

8. Remove the bolts and position aside the IPC.

   Torque: 2.5 Nm

   Courtesy of FORD MOTOR COMPANY

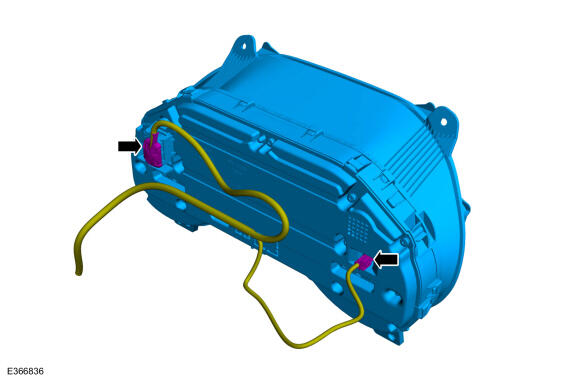

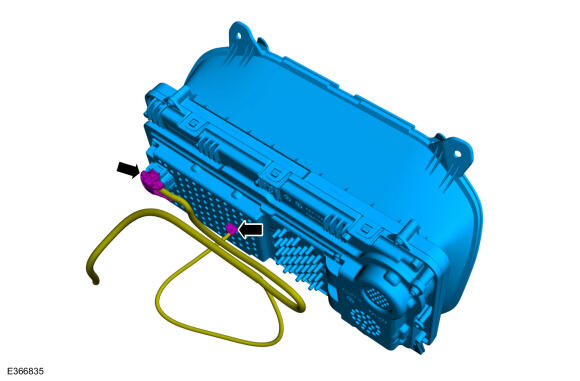

9. Disconnect the electrical connectors and remove the IPC.

   Courtesy of FORD MOTOR COMPANY

   Full TFT/LCD Instrument Cluster

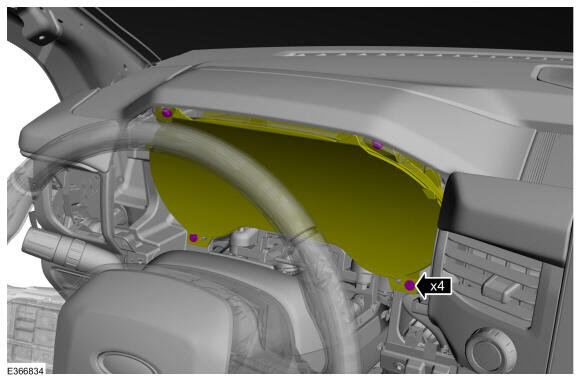

10. Remove the bolts and position aside the IPC.

    Torque: 2.5 Nm

    Courtesy of FORD MOTOR COMPANY

11. Disconnect the electrical connectors and remove the IPC.

Courtesy of FORD MOTOR COMPANY
