System Diagram - Gauges

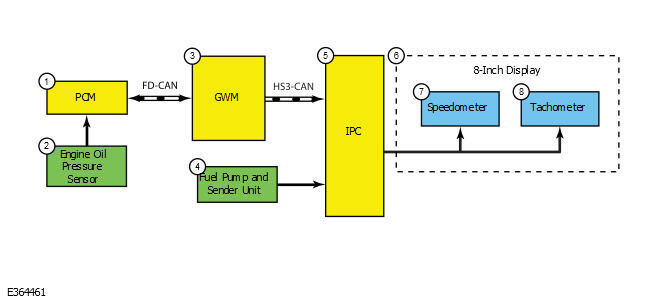

Analog Gauges
| Item | Description |
|---|---|
| 1 | PCM |
| 2 | Engine oil pressure sensor |
| 3 | GWM |
| 4 | Fuel pump and sender unit |
| 5 | IPC |
| 6 | 8-inch display |
| 7 | Speedometer |
| 8 | Tachometer |

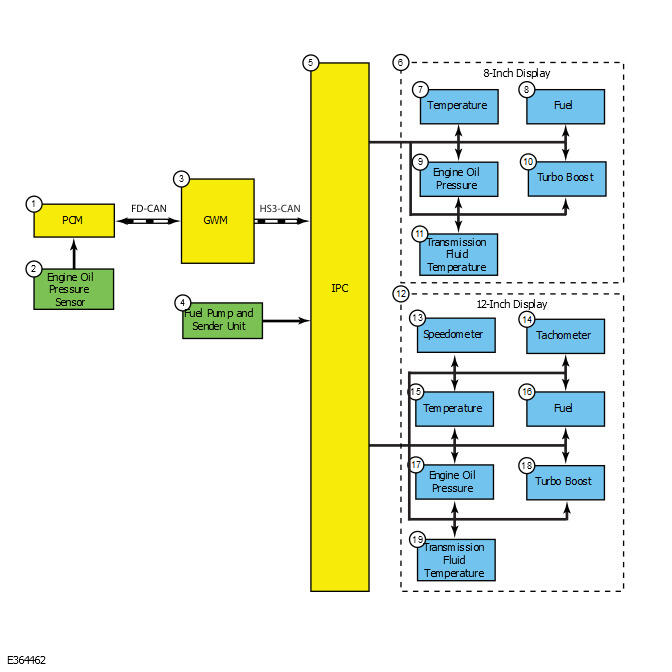

Virtual Gauges
| Item | Description |
|---|---|
| 1 | PCM |
| 2 | Engine oil pressure sensor |
| 3 | GWM |
| 4 | Fuel pump and sender unit |
| 5 | IPC |
| 6 | 8-inch display |
| 7 | Temperature |
| 8 | Fuel |
| 9 | Engine oil pressure |
| 10 | Turbo boost |
| 11 | Transmission fluid Temperature |
| 12 | 12-inch display |
| 13 | Speedometer |
| 14 | Tachometer |
| 15 | Temperature |
| 16 | Fuel |
| 17 | Engine oil pressure |
| 18 | Turbo boost |
| 19 | Transmission fluid temperature |
Network Message Chart - Gauges
The data on each gauge is displayed when the IPC receives messaged inputs from other modules on the CAN. The IPC communicates on the HS-CAN3. If the originating module communicates on a network other than the HS-CAN3, the messaged signals will be sent to the GWM first, then to the IPC.
| Gauge | Network Message | Originating Module | Originating CAN | Receiving Module |
|---|---|---|---|---|
| Engine Oil Pressure (virtual) | Oil pressure warning indicator request | PCM | FD-CAN | IPC |
| Engine Temperature (virtual) | Engine coolant temperature data | PCM | FD-CAN | IPC |
| Engine overheat indication request | ||||
| Fuel (virtual) | Fuel level data | IPC | HS-CAN3 | PCM |
| Fuel level display | PCM | FD-CAN | IPC | |
| Speedometer (analog or virtual) | Vehicle speed | PCM | FD-CAN | IPC |
| Tachometer (analog or virtual) | Engine rpm data | PCM | FD-CAN | IPC |
| Transmission temperature (virtual) | Transmission fluid temperature data | PCM | FD-CAN | IPC |
| Turbo boost (virtual) | Turbo boost data | PCM | FD-CAN | IPC |
