Instrument Panel Cluster (IPC) - Overview: Overview
The IPC uses gauges, warning and informational indicators, RTT indicators, warning messages and chimes to alert the driver of vehicle conditions and system operation. The message center provides menu selections to configure various vehicle features. For a complete list and description of the features the message center controls, refer to the Owner's Literature.
Informational indicators inform the driver of conditions that exist in the vehicle. Warning indicators provide information to the driver of conditions that could potentially cause personal injury or alter vehicle performance.
RTT indicators illuminate in the message center and replace traditional informational or warning indicators, using the same iconic representation. The message center uses a rotating RTT display area that can display multiple indicators, dedicated RTT displays and fixed locations for other RTT indicators and displays.

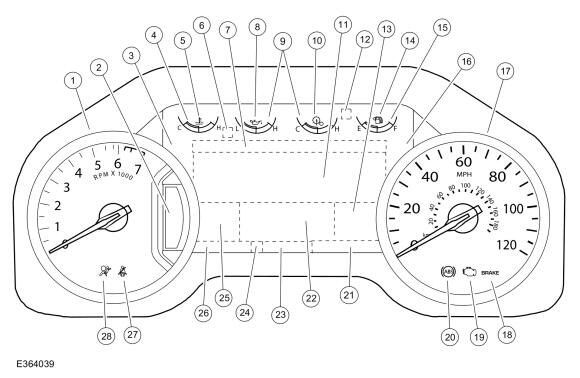

IPC, 8-Inch Display
IPC, 8-Inch Display
NOTE:
The illustration shows the basic display elements. The elements displayed and the layout changes based on driver selections. For additional information about specific feature displays, refer to the Owner's Literature.
| Item | Description |
|---|---|
| 1 | Tachometer |
| 2 | Gear selection display |
| 3 | Compass display Rotating Reconfigurable Telltales (RTTs): LH turn RTT indicator BLIS off Charging system Door ajar Engineering test (ET) mode Hood ajar Hill descent ready Low engine oil pressure (when engine oil pressure gauge is not selected to display) Low washer fluid Powertrain malfunction (wrench) Liftgate ajar Seatbelt (front and rear) Service interval (wrench) TPMS |
| 4 | Engine temperature gauge |
| 5 | Engine over-temperature warning RTT indicator |
| 6 | Forward collision warning RTT indicator |
| 7 | Message center menu/information display |
| 8 | Rotating Reconfigurable Telltales (RTTs) (coincide with selected gauge) |
| 9 | Reconfigurable virtual gauges Engine oil pressure Transmission temperature Turbo boost |
| 10 | Rotating Reconfigurable Telltales (RTTs) (coincide with selected gauge) |
| 11 | Information-on-demand display |
| 12 | Stability-traction control (sliding car icon) RTT indicator Stability-traction control disabled (sliding car OFF icon) RTT indicator |
| 13 | Cruise control/adaptive cruise control set speed display Speed sign display Electric park brake RTT indicator Overspeed warning RTT indicator (Gulf Cooperative Countries [GCC]) |
| 14 | Low fuel RTT indicator |
| 15 | Fuel gauge |
| 16 | Outside air temperature display RH turn RTT indicator Electronic locking differential (eLocker) RTT indicator Four wheel drive RTT indicator (2H, 4H, 4L, 4A) |
| 17 | Speedometer |
| 18 | Brake warning RTT indicator |
| 19 | MIL |
| 20 | ABSRTT indicator |
| 21 | DTE display |
| 22 | Driver assistance display Adaptive cruise control display Cruise control/adaptive cruise control RTT indicator Lane centering aid display Lane keeping system display Trail control RTT indicator |
| 23 | PRNDM display |
| 24 | Drive mode RTT indicator Eco Sport Tow Haul Slippery Trail or Mut/Ruts (4WD only) Deep Snow/Sand (4WD only) |
| 25 | Navigation display Reconfigurable Telltales (RTTs): Auto high beam Auto hold Auto stop-start Front fog lamp High beam Lane keeping system Lane centering aid Lights on |
| 26 | Odometer display |
| 27 | Seatbelt warning RTT indicator |
| 28 | Airbag warning RTT indicator |

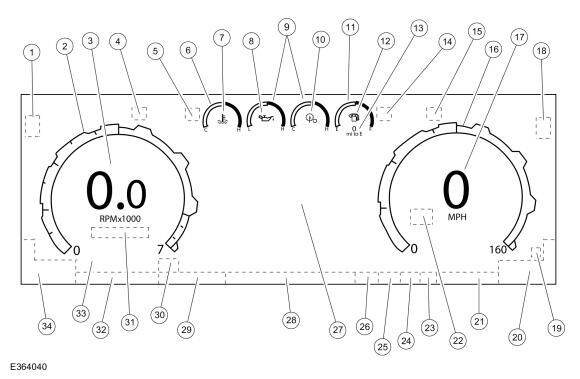

IPC, 12-Inch Display
IPC, 12-Inch Display
NOTE:
The illustration shows the basic display elements. The elements displayed and the layout changes based on driver selections. For additional information about specific feature displays, refer to the Owner's Literature.
| Item | Description |
|---|---|
| 1 | MIL Seatbelt warning RTT indicator (includes rear seats) |
| 2 | Virtual tachometer |
| 3 | Digital tachometer |
| 4 | LH turn RTT indicator |
| 5 | Engine over-temperature warning RTT indicator (when temperature gauge is not selected to display) |
| 6 | Engine temperature gauge |
| 7 | Engine over-temperature warning RTT indicator (when temperature gauge is selected to display) |
| 8 | Rotating Reconfigurable Telltales (RTTs) (coincide with selected gauge) |
| 9 | Reconfigurable virtual gauges Engine oil pressure Transmission temperature Turbo boost |
| 10 | Rotating Reconfigurable Telltales (RTTs) (coincide with selected gauge) |
| 11 | Virtual fuel gauge |
| 12 | Low fuel level warning RTT indicator (when fuel gauge is selected to display) |
| 13 | DTE display |
| 14 | Low fuel level warning RTT indicator (when fuel gauge is not selected to display) |
| 15 | RH turn RTT indicator |
| 16 | Virtual speedometer |
| 17 | Digital speedometer |
| 18 | Overspeed warning (Gulf Cooperative Countries [GCC]) RTT indicator |
| 19 | TPMS warning RTT indicator |
| 20 | Rotating Reconfigurable Telltales (RTTs) Airbag BLIS off Charging system Door ajar Engineering test (ET) mode Hill descent ready Hood ajar Liftgate ajar Low engine oil pressure warning (if gauge is not selected to display) Low washer fluid Powertrain malfunction (wrench) Seatbelt warning Service interval (wrench) |
| 21 | Odometer display |
| 22 | Cruise control/adaptive cruise control RTT indicator Trail control RTT indicator |
| 23 | Auto stop-start RTT indicator |
| 24 | Drive mode RTT indicators: Eco Sport Tow haul Slippery Trail or mud/ruts Deep snow/sand |
| 25 | Compass display |
| 26 | Lane centering aid RTT indicator Lane keeping system RTT indicator |
| 27 | Main menu display Information-on-demand display Driver assistance display (when information-on-demand is selected): Adaptive cruise control display Highway assist display Lane centering aid display Lane keeping system display |
| 28 | Audio selection display |
| 29 | Outside air temperature display ABS warning RTT indicator Forward collision warning RTT indicator |
| 30 | Auto hold RTT indicator |
| 31 | Brake warning RTT indicator Electric park brake RTT indicator |
| 32 | Progressive range select display |
| 33 | PRNDM display |
| 34 | Rotating Reconfigurable Telltales (RTTs): Auto/adaptive high beam Four wheel drive (2H, 4H, 4L, 4A) Front fog lamps High beam Lights on ELD (eLocker) Stability-traction control (sliding car icon) Stability-traction control disabled (sliding car OFF icon) |
