Removal And Installation: Turbocharger: Installation

  1. NOTE: This step is only needed if the component was removed.

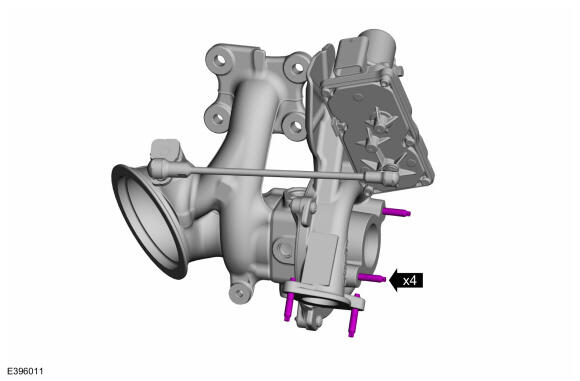

    Install the turbocharger stud bolts.

    Torque

    : 4.1 Nm

    GFD828571Courtesy of FORD MOTOR COMPANY
  2. NOTE: This step is only needed if the component was removed.
    NOTE: Make sure that a new component is installed.

    Component(s) must be lubricated with clean engine coolant.Install and lubricate the turbocharger coolant supply tube seal. Refer to: SPECIFICATIONS .

    GFD828572Courtesy of FORD MOTOR COMPANY
  3. NOTE: This step is only needed if the component was removed.

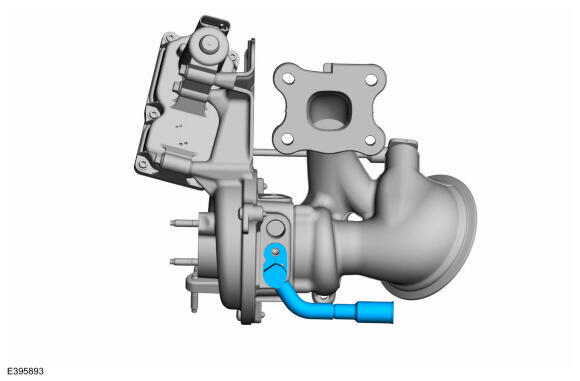

    Install the turbocharger coolant supply tube.

    GFD828568Courtesy of FORD MOTOR COMPANY
  4. NOTE: This step is only needed if the component was removed.
    NOTE: Make sure that a new component is installed.

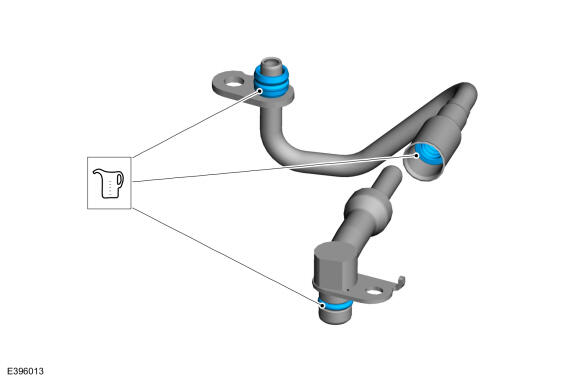

    Component(s) must be lubricated with clean engine coolant.Install and lubricate the turbocharger coolant return tube seals. Refer to: SPECIFICATIONS .

    GFD828573Courtesy of FORD MOTOR COMPANY

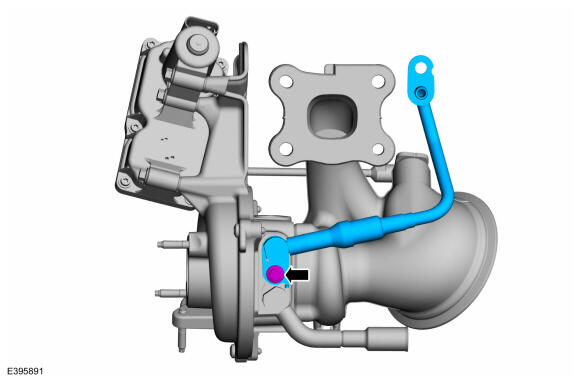

  5. NOTE: This step is only needed if the component was removed.
    NOTE: The component must be fully seated prior to fastener rundown.

    Install the turbocharger coolant return tube and tighten the bolt.

    Torque

    : 10 Nm

    GFD828566Courtesy of FORD MOTOR COMPANY
  6. NOTE: Make sure that new components are installed.

    Component(s) must be lubricated with clean engine oil.Lubricate the turbocharger oil supply tube O-ring seals. Refer to: Specifications .

    GFD828574Courtesy of FORD MOTOR COMPANY

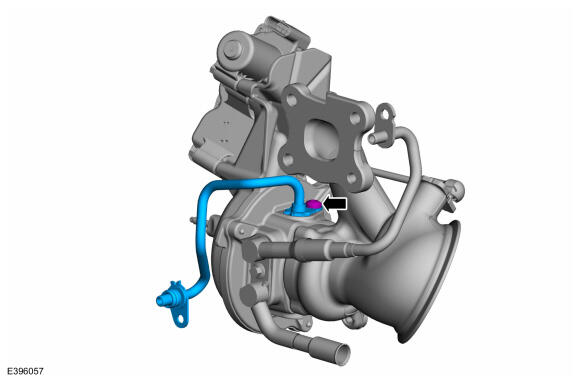

  7. NOTE: The component must be fully seated prior to fastener rundown.

    Install the turbocharger oil supply tube and tighten the bolt.

    Torque

    : 10 Nm

    GFD828575Courtesy of FORD MOTOR COMPANY
  8. NOTE: This step is only needed if the component was removed.

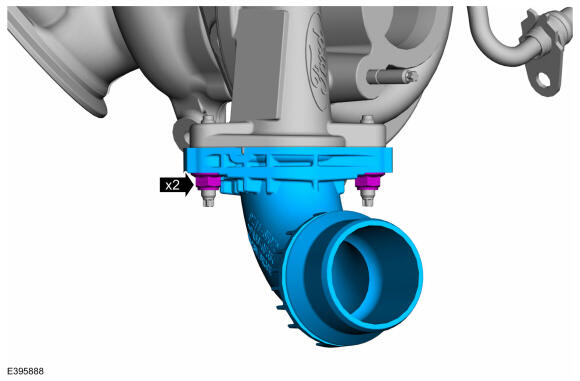

    Install the turbocharger elbow adapter and tighten the nuts.

    GFD828563Courtesy of FORD MOTOR COMPANY

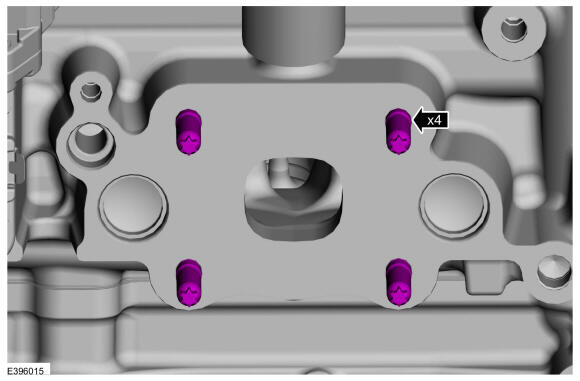

  9. NOTE: This step is only needed if the component was removed.
    NOTE: Make sure that new stud bolts are installed.

    Install the turbocharger mounting studs.

    Torque

    : 10 Nm

    GFD828576Courtesy of FORD MOTOR COMPANY
  10. NOTE: Make sure that a new component is installed.

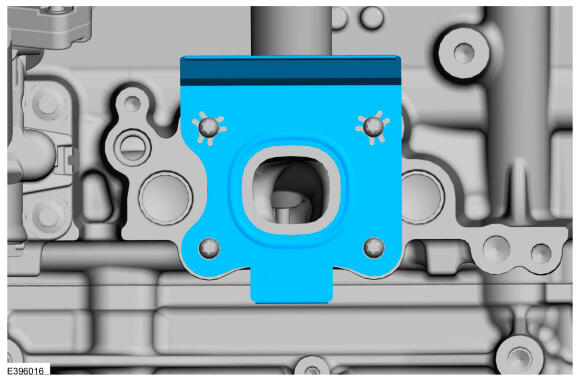

    Install the turbocharger gasket.

    GFD828577Courtesy of FORD MOTOR COMPANY
  11. NOTE: Only tighten the nuts finger tight at this stage.

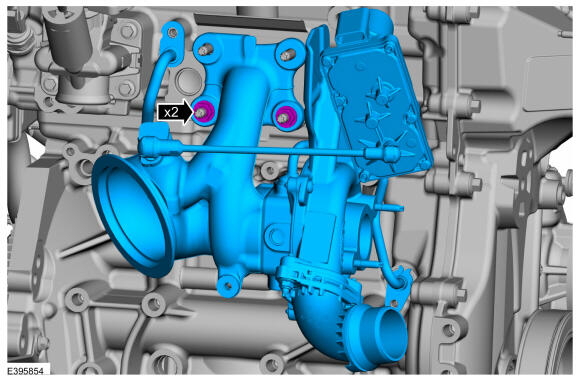

    Install the turbocharger and tighten the nuts.

    GFD828562Courtesy of FORD MOTOR COMPANY

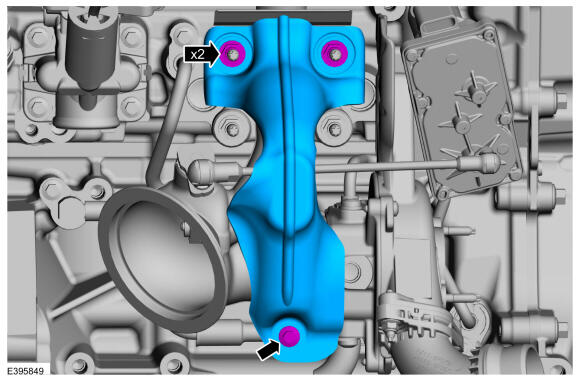

  12. NOTE: Only tighten the nuts finger tight at this stage.

    Install the turbocharger heat shield, then tighten the nuts and the bolt.

    GFD828557Courtesy of FORD MOTOR COMPANY

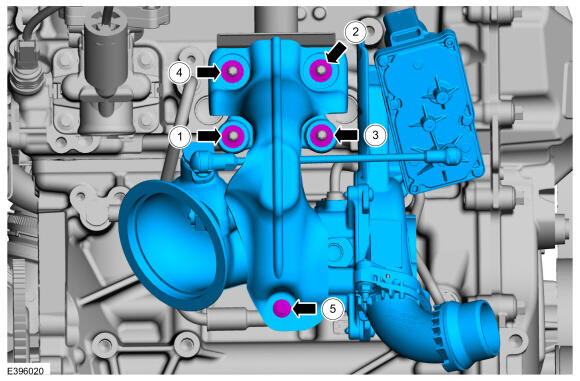

  13. NOTE: The component must be installed by hand before final tightening.

    Tighten the nuts and the bolts in the given sequence.

    Torque

    : Nuts: Stage 1: 23 Nm Stage 2: 23 Nm Bolt: 10 Nm

    GFD828578Courtesy of FORD MOTOR COMPANY
  14. NOTE: The component must be fully seated prior to fastener rundown.

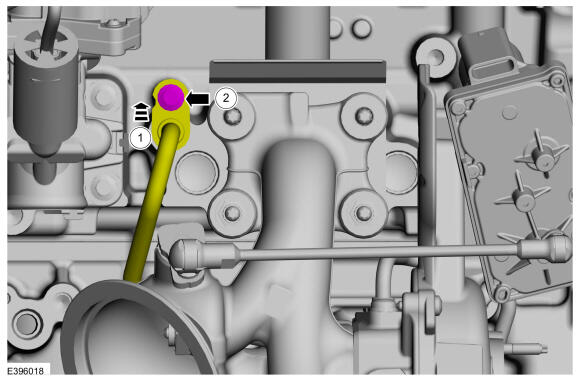

    Install the turbocharger coolant return tube and tighten the bolt.

    Torque

    : 10 Nm

    GFD828579Courtesy of FORD MOTOR COMPANY

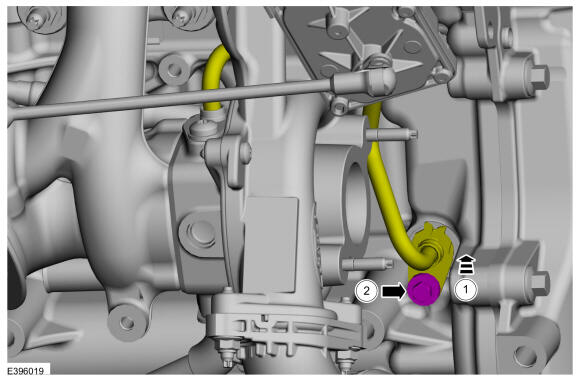

  15. NOTE: The component must be fully seated prior to fastener rundown.

    Install the turbocharger oil supply tube and tighten the bolt.

    Torque

    : 10 Nm

    GFD828580Courtesy of FORD MOTOR COMPANY

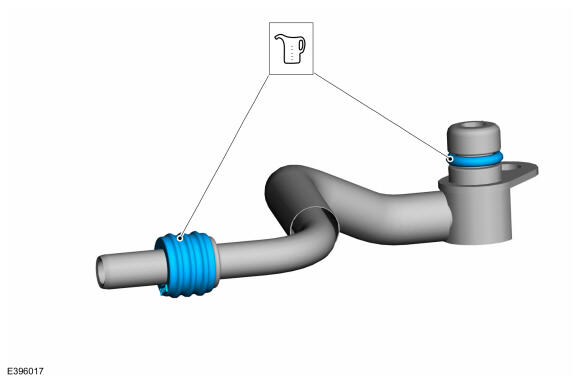

  16. Component(s) must be lubricated with clean engine coolant.Lubricate the outer half of the turbocharger coolant supply tube seals. Refer to: SPECIFICATIONS .
    GFD828581Courtesy of FORD MOTOR COMPANY

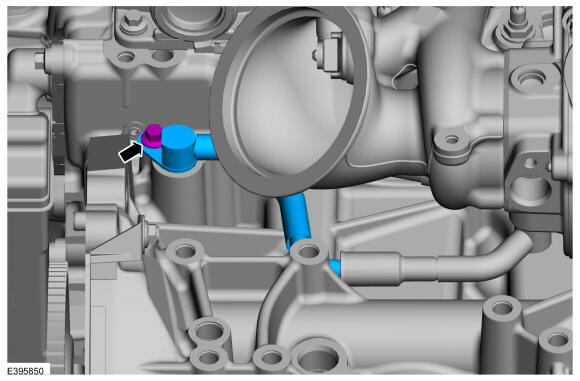

  17. NOTE: The component must be fully seated prior to fastener rundown.

    Install the outer half of the turbocharger coolant supply tube and tighten the bolt.

    GFD828558Courtesy of FORD MOTOR COMPANY
  18. Component(s) must be lubricated with clean engine oil.Lubricate the turbocharger oil return tube O-ring seals.
    GFD827153Courtesy of FORD MOTOR COMPANY

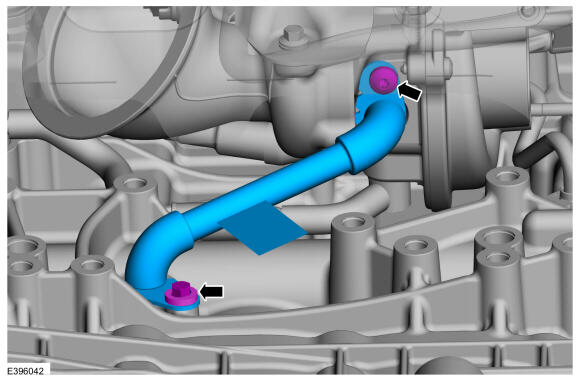

  19. NOTE: The component must be fully seated prior to fastener rundown.

    Install the turbocharger oil supply tube and tighten the bolts.

    Torque

    : 10 Nm

    GFD827154Courtesy of FORD MOTOR COMPANY

    LHD AWD/RHD AWD

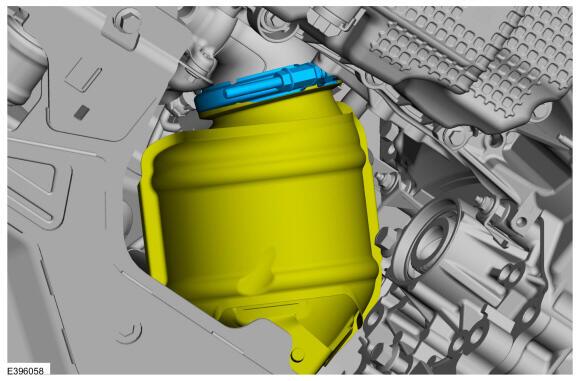

  20. Install the catalytic converter and the clamp.
    GFD828582Courtesy of FORD MOTOR COMPANY

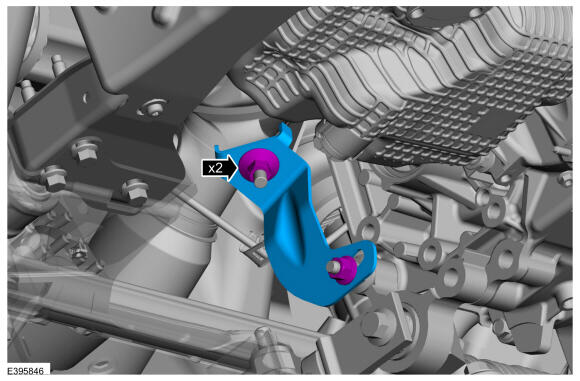

  21. Install the catalytic converter lower bracket and tighten the bolts.

    Torque

    : 48 Nm

    GFD828554Courtesy of FORD MOTOR COMPANY

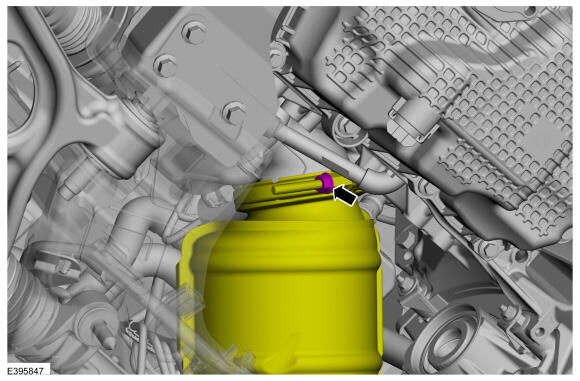

  22. Tighten the bolt.

    Torque

    : 18 Nm

    GFD828555Courtesy of FORD MOTOR COMPANY
  23. Install the power transfer unit. Refer to: Power Transfer Unit - Vehicles With: Power Transfer Unit Oil-to-Coolant Cooler . Refer to: Power Transfer Unit - Vehicles Without: Power Transfer Unit Oil-to-Coolant Cooler .

    LHD FWD/RHD FWD

  24. Install the catalytic converter. Refer to: Catalytic Converter .
  25. Install the front RH half shaft. Refer to: Front Halfshaft RH - 1.5L EcoBoost (129kW/175PS) (CR) .

    All vehicles

  26. Connect the turbocharger wastegate electrical connector.
    GFD828553Courtesy of FORD MOTOR COMPANY
  27. Install the CAC inlet pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
  28. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
  29. Check and top off the engine oil as needed. Refer to: Specifications .
  30. Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  31. If a new turbocharger is installed, road test the vehicle.
