Fuel Tank Isolation Valve - Plug-In Hybrid Electric Vehicle (PHEV): Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
Before beginning any service procedure in this article, refer to health and safety warnings in GENERAL INFORMATION
. Failure to follow this instruction may result in serious personal injury.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
- Remove the fuel vapor vent valve. Refer to: Fuel Vapor Vent Valve - Plug-In Hybrid Electric Vehicle (PHEV) .
-

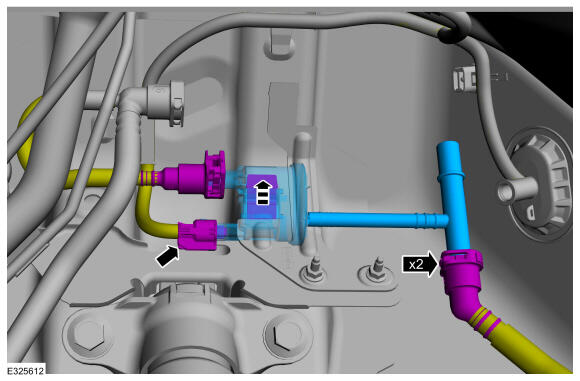

- Disconnect the electrical connector.
- Disconnect the quick release couplings. Refer to: QUICK RELEASE COUPLING 3.
- Remove the isolation valve.
