Fuel System Pressure Release
WARNING: This page is about a different variant/trim than selected.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Pressure release
WARNING:
Fuel may remain pressurized in some fuel lines after the fuel system pressure release procedure. Wear safety gloves and a face shield when disconnecting pressure lines to avoid skin and eye contact. Failure to follow this instruction may result in serious personal injury.
- Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
- Remove the following items:

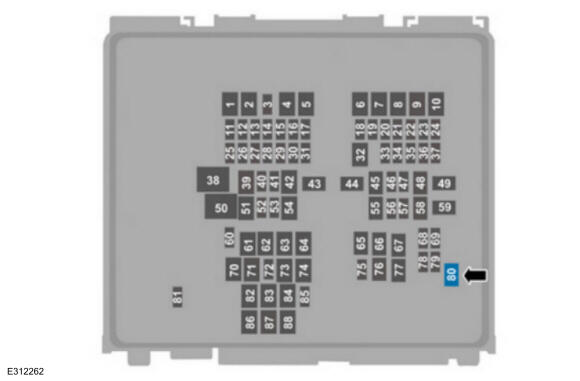

- Fuse 80
- Start and run the engine at idle.
- Wait until the engine stalls.
- Crank the engine for approximately 5 seconds to release the fuel pressure.
- Install the following items:
- Fuse 80
