Fuel Charging And Controls - Turbocharger - 1.5L ECOBOOST (129KW 175PS) (Cr)
>>
Description And Operation
>>
Turbocharger - Component Location

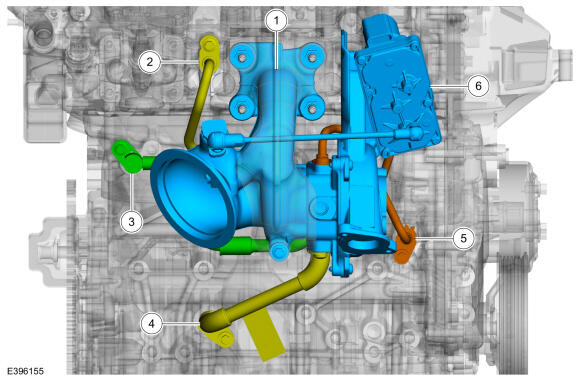

Turbocharger - Component Location
Turbocharger
1.5L EcoBoost
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Turbocharger
2
Turbocharger coolant return tube
3
Turbocharger coolant supply tube
4
Turbocharger oil return tube
5
Turbocharger oil supply tube
6
Wastegate control actuator
