Brake Pedal and Bracket: Removal

LHD AWD/LHD FWD

1. Remove the cowl panel grille Refer to: Cowl Panel Grille .

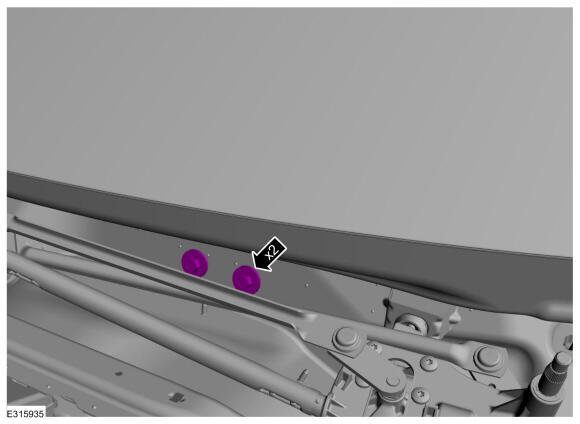

2. Remove the 2 LH side (under hood) instrument panel bolts

   Torque

   : 48 Nm

   Courtesy of FORD MOTOR COMPANY

   All vehicles

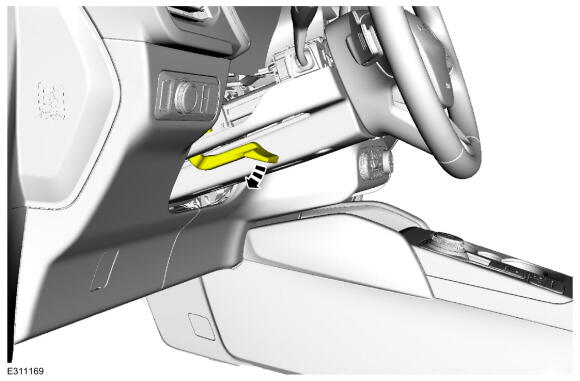

3. Position the manual steering column adjuster lever in the down position.

   Courtesy of FORD MOTOR COMPANY

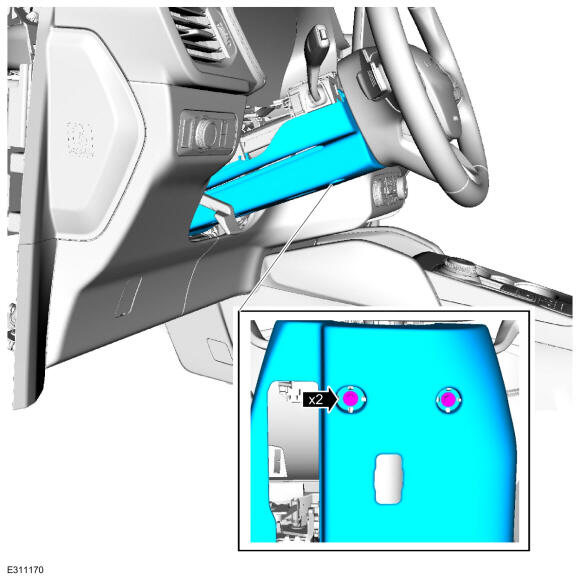

4. Remove the bolts and the lower steering column shroud.

   Torque

   : 1.9 Nm

   Courtesy of FORD MOTOR COMPANY

5. Release the clips and remove the LH instrument panel end cap.

   Courtesy of FORD MOTOR COMPANY

6. 1. Remove the cover.
   2. Lift the cable and strap upward and reward to disengage from the lower trim panel.

   Courtesy of FORD MOTOR COMPANY

7. Release the clips and remove the LH trim panel.
   • Disconnect the electrical connector.

   Courtesy of FORD MOTOR COMPANY

   LHD AWD/LHD FWD

8. Remove the bolts.

   Torque

   : 48 Nm

   Courtesy of FORD MOTOR COMPANY

   All vehicles

9. Remove the accelerator pedal. Refer to: ACCELERATOR PEDAL .
10. NOTE: Do not service the brake pedal or brake booster without first removing the stoplamp switch. The switch must be removed with the brake pedal in the at-rest position. The switch plunger must be compressed for the switch to rotate in the bracket. Attempting to remove the switch when the plunger is extended (during pedal apply) will result in damage to the switch.

    Remove the stoplamp switch. Refer to: appropriate Service Information .

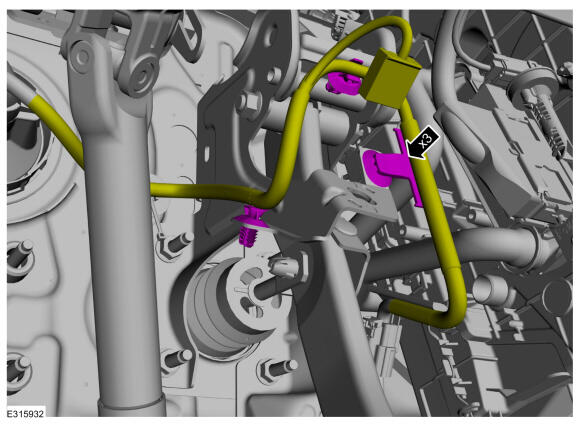

11. Detach the harness retainers and position the wiring aside.

    Courtesy of FORD MOTOR COMPANY

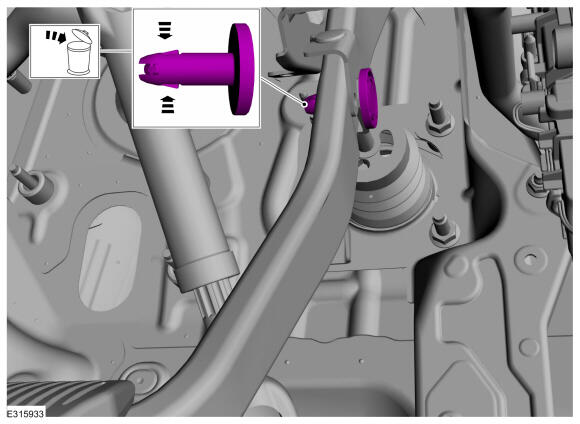

12. Remove and discard the clevis pin.

    Courtesy of FORD MOTOR COMPANY

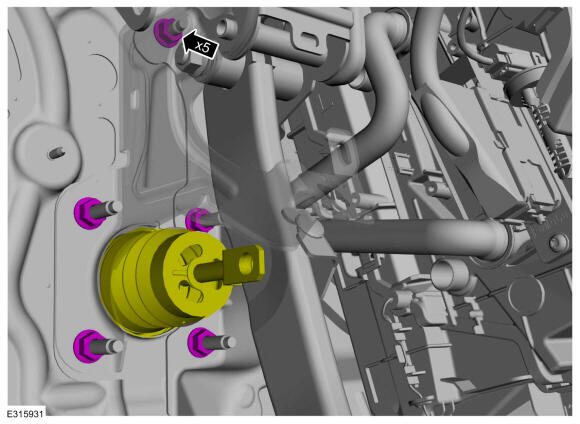

13. Remove the 5 brake pedal bracket nuts.

    Courtesy of FORD MOTOR COMPANY

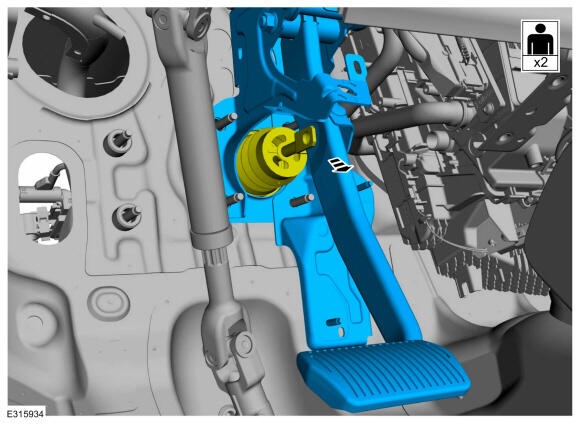

14. NOTE: Have an assistant to pull the HCU away from the cowl enough to allow the brake pedal bracket to clear the studs.
    • Pull the LH side of the instrument panel away from the cowl slightly.
    • Remove the brake pedal and bracket.

Courtesy of FORD MOTOR COMPANY
