Brake Fluid Reservoir: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the EBB. Refer to: ELECTRIC BRAKE BOOSTER (EBB) . Refer to: ELECTRIC BRAKE BOOSTER (EBB) - FULL HYBRID ELECTRIC VEHICLE (FHEV) PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV) .

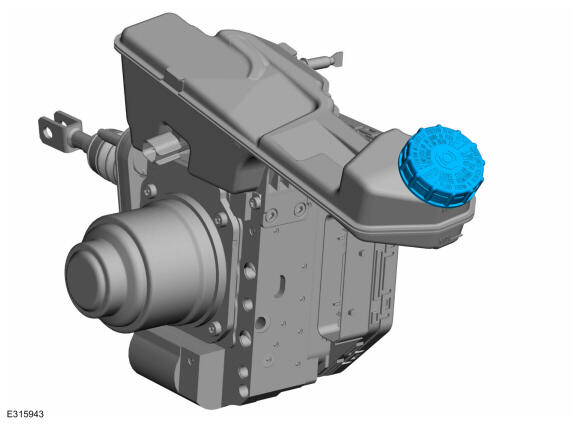

- Remove the brake fluid reservoir cap.

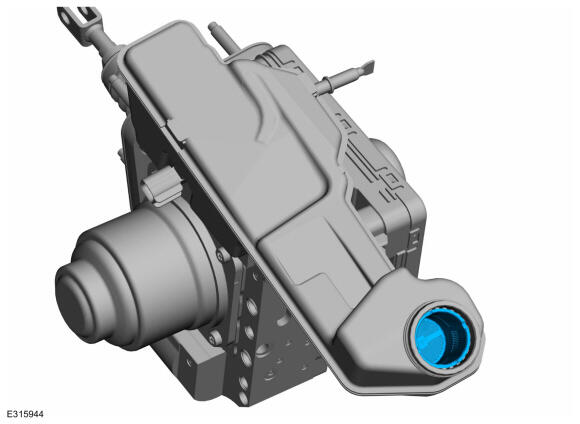

- Remove the brake fluid reservoir filter and remove the brake fluid.

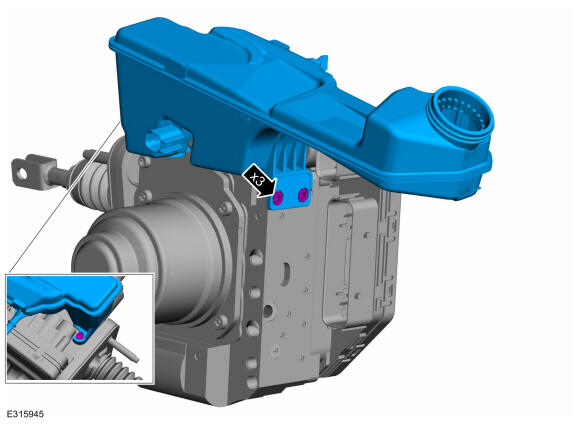

- Remove the screws and the brake fluid reservoir.
Torque
: 2.6 Nm
-
NOTE: Brake fluid reservoir mounting screws and the sealing plugs are supplied with the brake fluid reservoir kit.

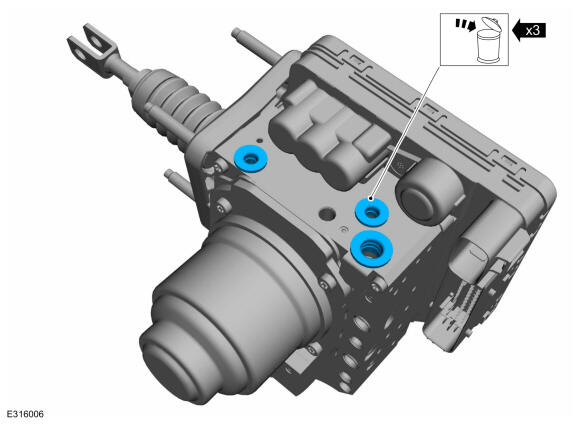

Ensure that old brake fluid reservoir sealing washers are removed before installing new reservoir with new washers.
