Brake Fluid Reservoir: Installation

  1. To install, reverse the removal procedure.

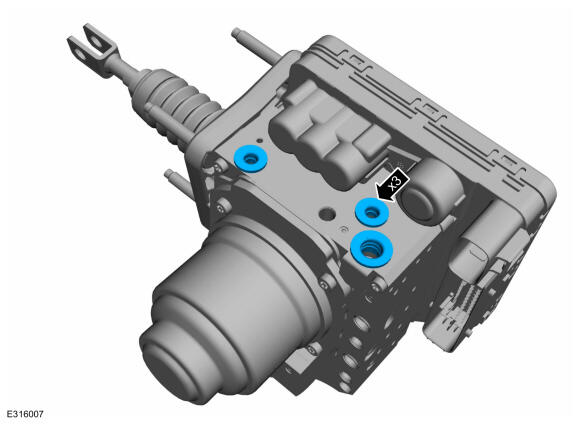

  2. NOTE: This step is only necessary if installing a new brake fluid reservoir.

    Install the new brake fluid reservoir washers supplied with brake fluid reservoir kit.

    GFD826617Courtesy of FORD MOTOR COMPANY
  3. Fill the reservoir with clean, specified brake fluid. Refer to: Specifications .
