Rear Parking Aid Camera - Vehicles With: 360 Degree Camera Parking Aid Camera: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the liftgate trim panel. Refer to: Liftgate Trim Panel

   Vehicles equipped with analog cameras

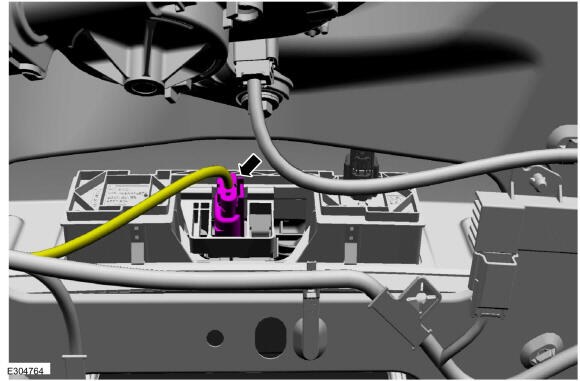

2. Disconnect the electrical connector and position the harness aside.

   Courtesy of FORD MOTOR COMPANY

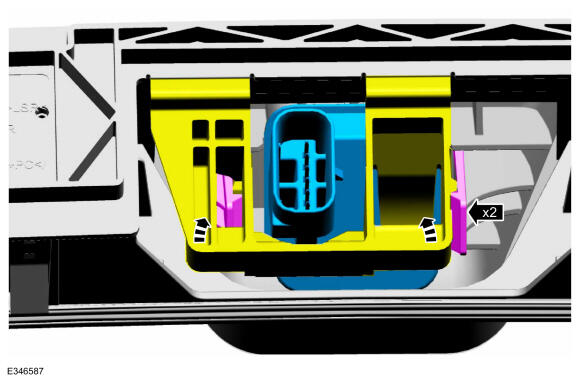

3. Release the tabs, position the camera retaining plate aside and remove the rear parking aid camera.

   Courtesy of FORD MOTOR COMPANY

   Vehicles equipped with digital cameras

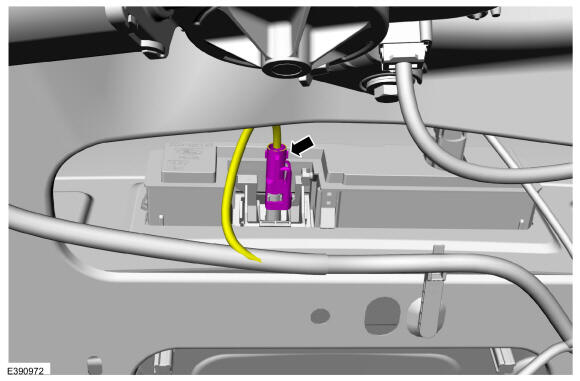

4. Disconnect the electrical connector and position the harness aside.

   Courtesy of FORD MOTOR COMPANY

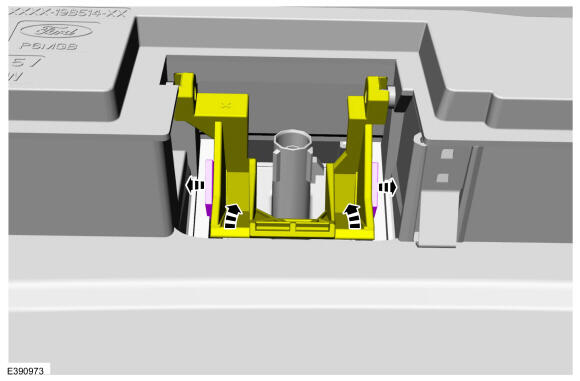

5. Release the tabs, position the camera retaining plate aside.

   Courtesy of FORD MOTOR COMPANY

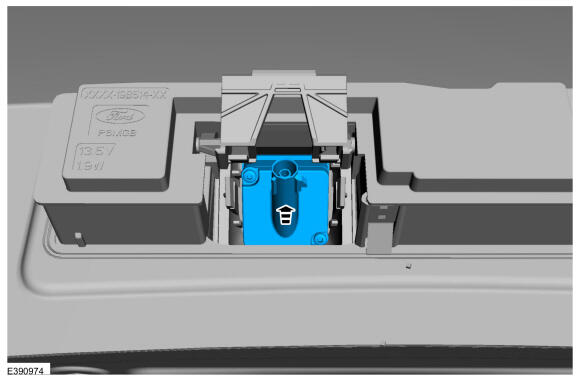

6. Remove the rear parking aid camera.

Courtesy of FORD MOTOR COMPANY
