Muffler and Tailpipe - Plug-In Hybrid Electric Vehicle (PHEV): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING .

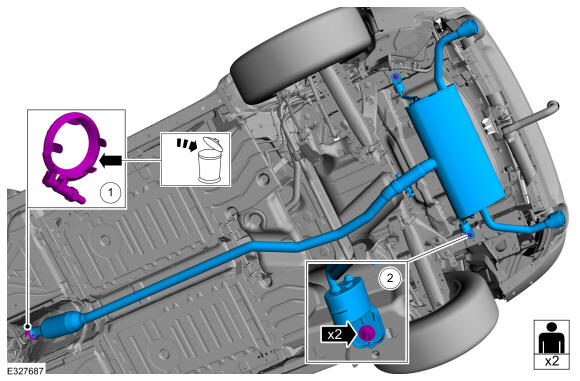

1. Remove and discard the clamp.
2. Remove the isolator bracket studs and the muffler and tailpipe assembly.
Courtesy of FORD MOTOR COMPANY

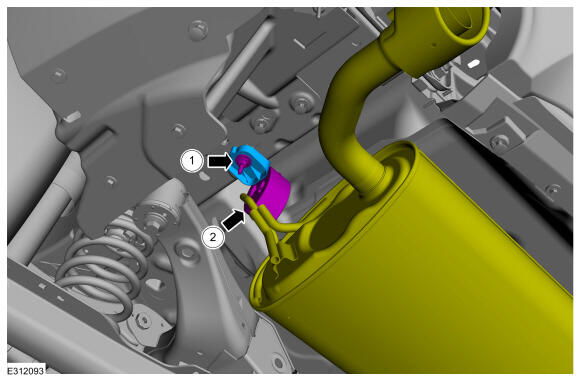

- NOTE: This step is only necessary when installing a new component.

  NOTE: Left-hand side shown, right-hand side is similar.

  Remove the isolator bracket studs.

  Torque

  : 25 Nm
- Detach the isolator and remove the bracket.

Courtesy of FORD MOTOR COMPANY
