Muffler and Tailpipe - Plug-In Hybrid Electric Vehicle (PHEV): Installation

WARNING: This page is about a different variant/trim than selected.

Clean all exhaust connections before reassembly.

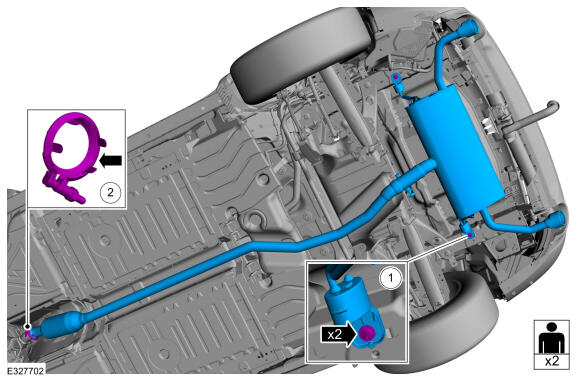

1. Position the muffler and tailpipe assembly in the vehicle and install the isolator bracket studs.
  Torque

  : 25 Nm
2. NOTE: Ensure that the service clamp is centred correctly over the joint, failing this could result in joint leaking.

  NOTE: Make sure that a new clamp is installed.

  Install the new clamp.

  Torque

  : 23 Nm
Courtesy of FORD MOTOR COMPANY
Check the exhaust system for leaks.
