Muffler and Tailpipe - Full Hybrid Electric Vehicle (FHEV): Installation

WARNING: This page is about a different variant/trim than selected.

To install, reverse the removal procedure.

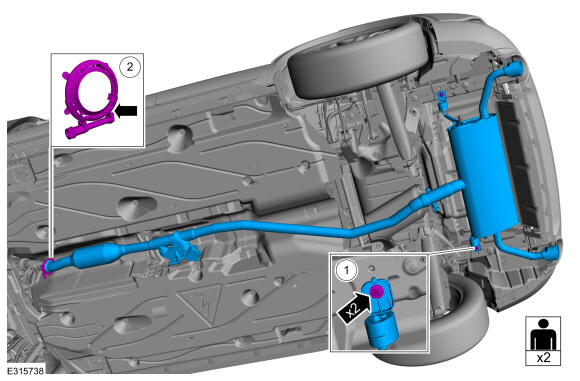

1. Position the muffler and tailpipe assembly in the vehicle and install the isolator bracket studs.
  Torque

  : 25 Nm
2. NOTE: Make sure that the clamp is installed to the same orientation as when removed.

  NOTE: Make sure that new clamp is installed.

  Install the new clamp.

  Torque

  : 23 Nm
Courtesy of FORD MOTOR COMPANY
Check the exhaust system for leaks.
Check and fill the coolant to the maximum level. Refer to: ENGINE COOLING SYSTEM DRAINING, VACUUM FILLING AND BLEEDING .
