Exhaust Heat Exchanger: Installation

WARNING: This page is about a different variant/trim than selected.

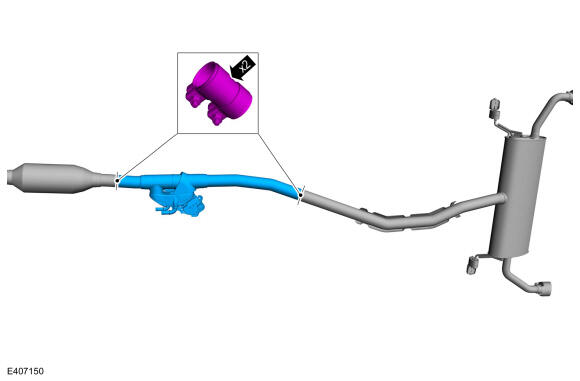

  1. Install the exhaust heat exchanger and install the new service clamp..

    Torque

    : 48 Nm

    GFD830019Courtesy of FORD MOTOR COMPANY
  2. Refer to: Muffler and Tailpipe - Plug-In Hybrid Electric Vehicle (PHEV) .
