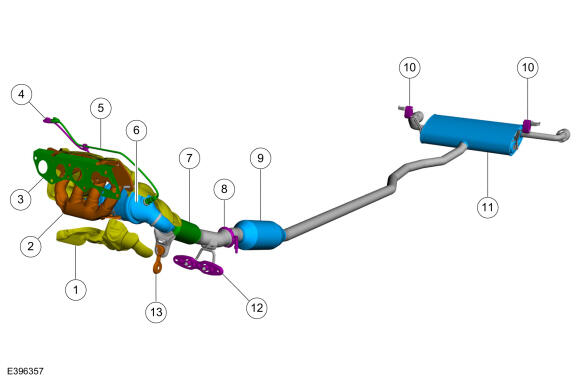

Exhaust System - Component Location
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | Catalytic converter heat shield |
| 2 | Exhaust manifold |
| 3 | Exhaust manifold gasket |
| 4 | Universal heated exhaust gas oxygen (U-HEGO) sensor |
| 5 | Heated exhaust gas oxygen (HEGO) sensor |
| 6 | Catalyst assembly |
| 7 | Exhaust flexible pipe |
| 8 | Clamp |
| 9 | Converter sub-assembly |
| 10 | Isolators |
| 11 | Rear muffler |
| 12 | Muffler inlet pipe support bracket |
| 13 | Catalytic converter mounting bracket |
